PSI — Train Horn Glossary

PSI (pounds per square inch) is the unit used to describe air pressure inside train horn air systems. The horn’s output volume is directly tied to the operating PSI: at the upper end of the operating range, dB is highest; below the minimum operating PSI, the chord starts to fall apart audibly. Locomotive horns and aftermarket truck-mounted kits typically operate in the 90–150 PSI range.

Definition

PSI = pounds per square inch, an imperial pressure unit. One PSI equals one pound of force distributed across one square inch of surface area. In engineering pneumatics:

• PSI absolute (PSIA) — total pressure including atmospheric

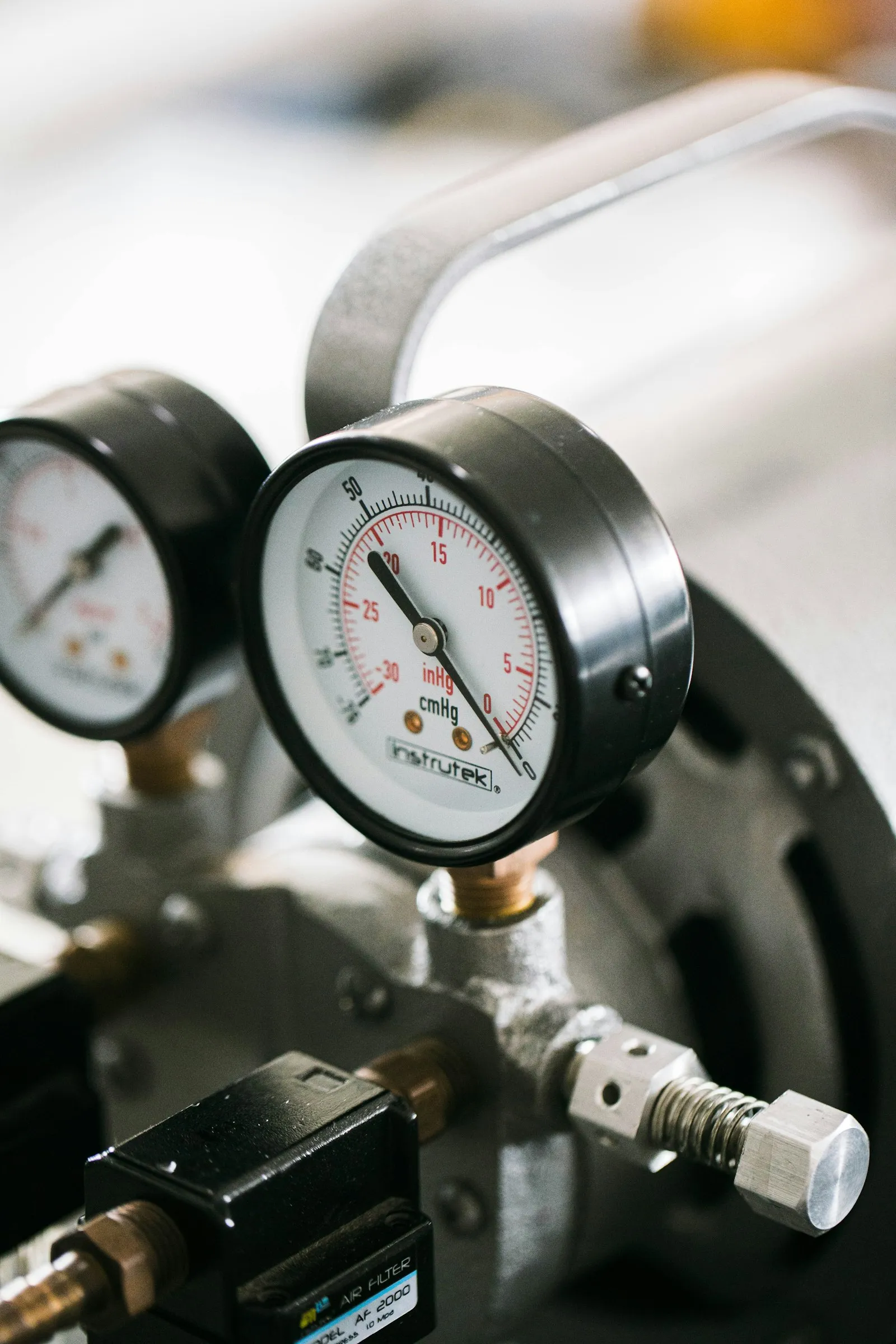

• PSI gauge (PSIG) — pressure relative to atmospheric (what your tank gauge reads)
• Atmospheric pressure at sea level is 14.7 PSIA / 0 PSIG

Train horn air pressures are quoted in PSIG. A “150 PSI tank” reads 150 PSIG on its gauge — actual absolute pressure inside is 164.7 PSIA.

Operating PSI for common train horns

Per manufacturer documentation:

Horn / system	Operating PSI	Source
Nathan AirChime K5LA	90–140 PSI	Locomotive Parts Supply
Locomotive main reservoir	130–140 PSI	Standard for diesel locomotives
Aftermarket tank-fed kit (cut-in / cut-out)	110 / 150 PSI	HornBlasters / Kleinn standard
Leslie RS-5T Supertyfon	100 PSI for 144 dB rating	HornBlasters: World’s Loudest
HornBlasters Conductor’s Special 228H	110 / 150 PSI	HornBlasters product page

Why PSI matters for horn output

Air pressure drives the diaphragm vibration that produces sound. More pressure = more air mass flowing past the diaphragm per unit time = more sound power. The operating range each manufacturer specifies (e.g., 90–140 PSI for the K5LA) is the band where:

• At the upper end (140 PSI): maximum dB output, sharpest attack, fullest chord
• Mid-range (110–130 PSI): rated dB output (the number on the spec sheet, typically measured at 100 PSI for tank-fed kits)
• Below the minimum (< 90 PSI for K5LA): the bells lose enough flow that the chord notes start to flatten and the harmonic content collapses — “the chord falls apart audibly”

This is why a tank that drains below 90 PSI mid-blast audibly weakens — it’s not just quieter, the tone changes.

Why “more PSI” isn’t always better

Manufacturers spec a maximum operating pressure — typically 140 PSI for the K5LA — for reasons:

• Diaphragm fatigue. Higher pressure flexes the bell diaphragm harder. Operating above the rated maximum accelerates wear and can crack the diaphragm.
• Bell harmonics. Bells are tuned to a specific resonance at a specific pressure. Drive them above rated PSI and the harmonic content shifts in unpredictable ways.
• Hardware safety. NPT fittings, hoses, and the air tank itself are pressure-rated. Common train horn air tanks are rated 200 PSI burst — running them at 150 PSI gives a 33% safety margin. Running them at 200 PSI is risky.

Tank-fed vs continuous-pressure systems

Train horn air systems split by how PSI is supplied:

• Tank-fed kits. Aftermarket truck installs use a 5-gallon (or larger) tank charged to 150 PSI cut-out by a 12 V compressor. The horn fires from the tank’s stored pressure; pressure drops during the blast as air is consumed; once below 110 PSI the compressor cycles back on to refill.
• Locomotive main reservoir. Real locomotives have a continuously-running compressor on the prime mover keeping the main reservoir at 130–140 PSI. The horn fires from main reservoir air, with effectively unlimited supply (the air system sees the horn as one of many users — brakes, sanders, etc.).
• Portable battery-powered horns. No tank. The compressor runs directly off battery power and produces pressure in real time at the manifold. Maximum sustained PSI is lower than tank-fed (typically 60–80 PSI) which is why portable units cap out around 130–150 dB at the source rather than the 144–149 dB of tank-fed kits.

Calculating air system performance

Two related calculators on Train Horn Hub use PSI directly:

• Air Tank Runtime Calculator — given tank volume, max PSI, min PSI, and horn CFM consumption, computes how many seconds of blast you get before refill is needed.
• Compressor Recovery Calculator — given compressor CFM at given PSI, tank volume, and pressure range (110 → 150 PSI typical), computes refill time.

Both calculators use Boyle’s Law (PV = constant for isothermal compression) to model pressure changes during blast and refill cycles.

Related glossary entries

• K5LA — operates in the 90–140 PSI range
• Decibel — SPL output is directly tied to operating PSI
• Duty Cycle — compressor’s allowed ON time as a fraction of total time, related to compressor heat at high-PSI operation
• Solenoid — the valve that opens to release tank pressure to the horn

Sources

• Locomotive Parts Supply — Nathan AirChime K5LA (90–140 PSI K5LA operating range)
• HornBlasters — Conductor’s Special 228H Train Horn Kit (110/150 PSI compressor cycle, 25 A draw, 200 PSI tank rating)
• HornBlasters — World’s Loudest Train Horns (Leslie RS-5T 144 dB at 100 PSI)
• Wikipedia — Pounds per square inch (PSI vs PSIA vs PSIG definitions)
• Wikipedia — Boyle’s Law (PV = constant for compressed-air calculations)
