Train Horn Guides
How chord horns actually work. The physics behind decibels, the FRA grade-crossing pattern, the buying-tradeoff truth, the hearing-damage thresholds. Explainers in plain English with primary sources cited.
The four core concepts
Read these in order. Each card links to the deep-dive guide where the topic is fully unpacked.
How chord horns work
A train horn is a multi-bell chord horn: each bell vibrates at a frequency set by its length, and multiple bells fire simultaneously to produce a chord. The Nathan K5LA has 5 bells tuned to D♯/F♯/G♯/B/D♯ — together producing a B major 6th chord.
Full physics explanation →Air supply
Real locomotive horns run on the locomotive's main reservoir at 125–140 PSI. Aftermarket consumer kits use 12V/24V compressors at 120–200 PSI feeding 0.5–5 gallon tanks. Tank reserve sets your single-blast duration.
Decibel physics
Decibels are logarithmic — every 10 dB increase = 10× acoustic intensity, ~2× perceived loudness. SPL falls off ~6 dB per doubling of distance. A 110 dB horn at 100 ft drops to 76 dB at 1 mile.
Full decibel math →FRA grade-crossing pattern
Two long, one short, one long (• • — •). FRA 49 CFR § 222.21 requires this pattern 15–20 seconds before every public highway-rail at-grade crossing. 96–110 dB measured 100 ft ahead.
Why this pattern →Browse by category
All published guides grouped by topic. Click any to read.
How do train horns work
Chord-horn physics from diaphragm to bell.
Decibels explained
Logarithmic SPL math, inverse-square law, perceived loudness.
Train horn pattern meaning
The • • — • signal explained.
Train whistle vs horn
Steam-era fipple vs diesel-era chord horn.
Why trains blow horns at night
FRA rule + atmospheric carry / inversions.
The math behind train horn sound
The formulas that govern bell length to frequency, SPL distance falloff, and hearing-damage thresholds.
f = c / (4L)
Half-open pipe (closed at diaphragm, open at bell mouth). c is speed of sound (~343 m/s), L is bell length in meters.
Example: a 22 cm bell → f = 343 / (4 × 0.22) = 390 Hz. End-correction shifts pitch ~5–10% in practice.
SPL_d = SPL_r − 20 × log₁₀(d/r)
Sound Pressure Level at distance d from a source measured at reference distance r. Doubled distance ≈ 6 dB drop.
Example: 110 dB at 100 ft → 90 dB at 1,000 ft → 76 dB at 1 mile (free-field, before atmospheric absorption).
| SPL | Safe exposure | Reference |
|---|---|---|
| 85 dB | 8 hours daily | NIOSH recommendation; lawn mower at 50 ft |
| 100 dB | 15 minutes | Power saw; subway train |
| 110 dB | 1.5 minutes | Live concert; FRA upper bound at 100 ft |
| 120 dB | 9 seconds | Jackhammer at 3 ft |
| 130 dB | 1 second | Pain threshold approached |
| 140 dB | No safe exposure | Pain threshold; immediate damage |
| 149 dB | Instant damage | Nathan K5LA at source |
Always use hearing protection during install, testing, or use of any aftermarket horn at full output. Foam earplugs minimum; noise-canceling earmuffs preferred.
Six questions before you buy
Walk through these in order. Each narrows your option space.
- 1 Decide your output target. ~120 dB DIY-PVC, ~135 dB Wolo / Vevor budget, ~145 dB mid-premium aftermarket, ~149 dB real Nathan K5LA. Each tier ~4× the cost of the previous for ~2× perceived loudness gain.
- 2 Pick your install footprint. Compact 0.5-gal kits (Vixen, FARBIN) for under-hood. Mid-size 2–3 gal (Conductor's, Vevor) for behind the bed. 5+ gal premium for parade.
- 3 Match air system to use frequency. 100% duty cycle compressor for parade / show. 30–50% fine for occasional honks.
- 4 Pick chord vs single-tone. Multi-trumpet (3–6 bells) for authentic locomotive chord. Single-trumpet for tight installs / motorcycles.
- 5 Verify dB claims. Trust brands publishing testing methodology (HornBlasters). Discount brands that don't (Viking, FARBIN, Vevor — typically inflated 10–30 dB).
- 6 Confirm legality. Install legal in all 50 states. Routine use typically violates state code. /legal/ + /tools/state-legality/.
Full breakdown: train horn buying guide (2026).
Frequently asked questions
The questions readers ask most often. Tap to expand.
How loud is a real train horn?
The Federal Railroad Administration requires every locomotive horn to produce 96 to 110 dB measured 100 feet ahead of the locomotive (49 CFR § 222). The Nathan AirChime K5LA has been independently measured at 149.4 dB at the source. Output drops with distance per the inverse-square law (~6 dB per doubling of distance) — so 110 dB at 100 ft is ~88 dB at 1/4 mile and ~76 dB at 1 mile.

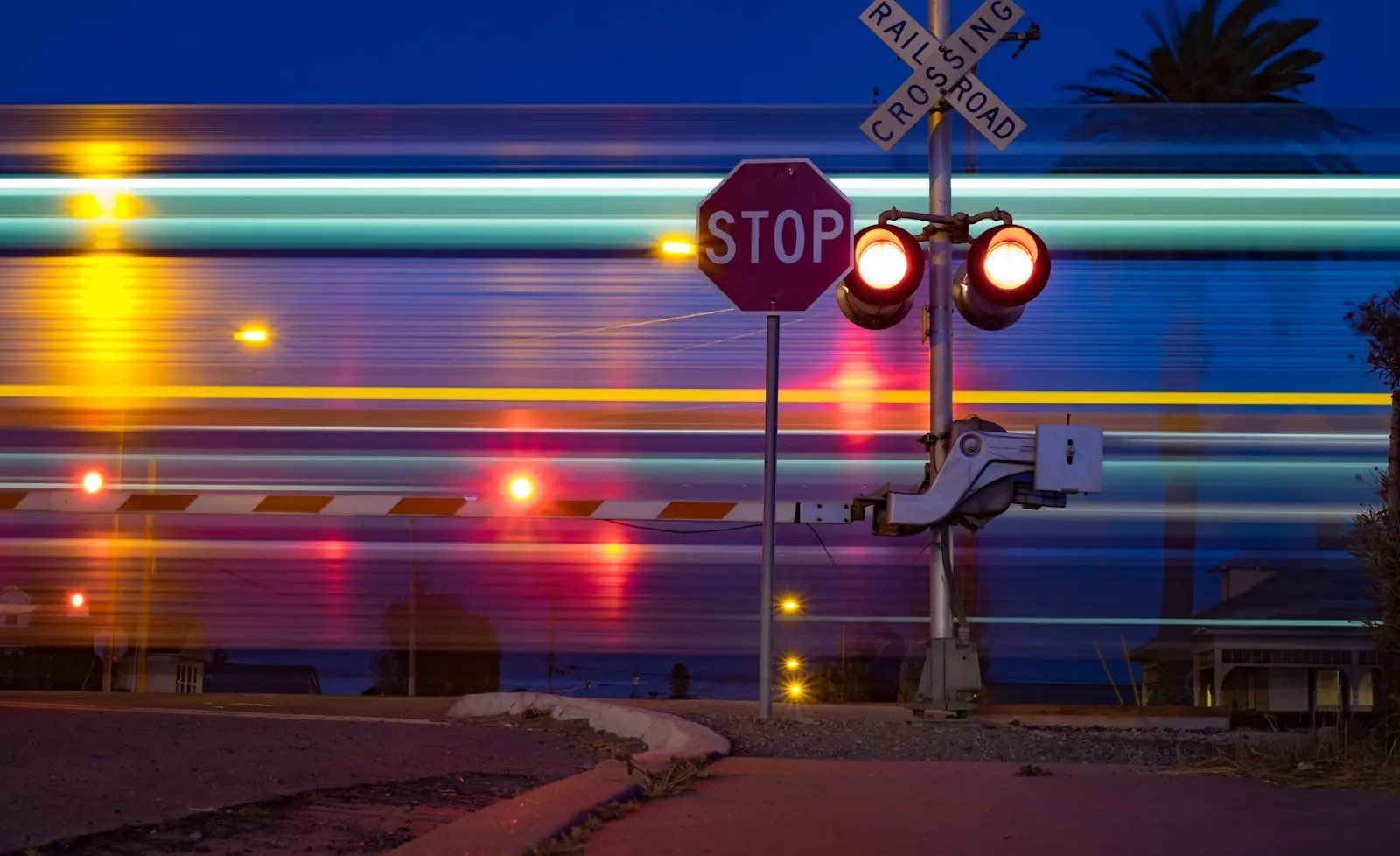

What is the train horn pattern at grade crossings?
Two long blasts, one short, one long (• • — •). FRA 49 CFR § 222.21 requires this pattern starting 15-20 seconds before the train enters every public highway-rail at-grade crossing, repeated until the lead locomotive occupies the crossing. The horn cannot be sounded more than 1/4 mile in advance.
What chord does a train horn play?
Modern Nathan AirChime K5LA — the dominant locomotive horn in North America — plays a B major 6th chord with five notes: D♯3 (~311 Hz), F♯3 (~370 Hz), G♯3 (~415 Hz), B3 (~494 Hz), D♯4 (~622 Hz). The K3LA (3-chime) plays a subset. Older Nathan K5 / P5 and Leslie RS3L play different chord voicings — generally warmer or sharper variants of major chords.
Can a train horn damage my hearing?
Yes. Anything above 85 dB causes permanent hearing damage with prolonged exposure. A train horn at 149 dB at the source exceeds the OSHA pain threshold (140 dB) — direct exposure causes immediate damage. NIOSH recommends limits of: 85 dB / 8 hours, 100 dB / 15 minutes, 130 dB / 1 second, 140+ dB / no safe exposure. Always use hearing protection during install, testing, or use of any aftermarket train horn.

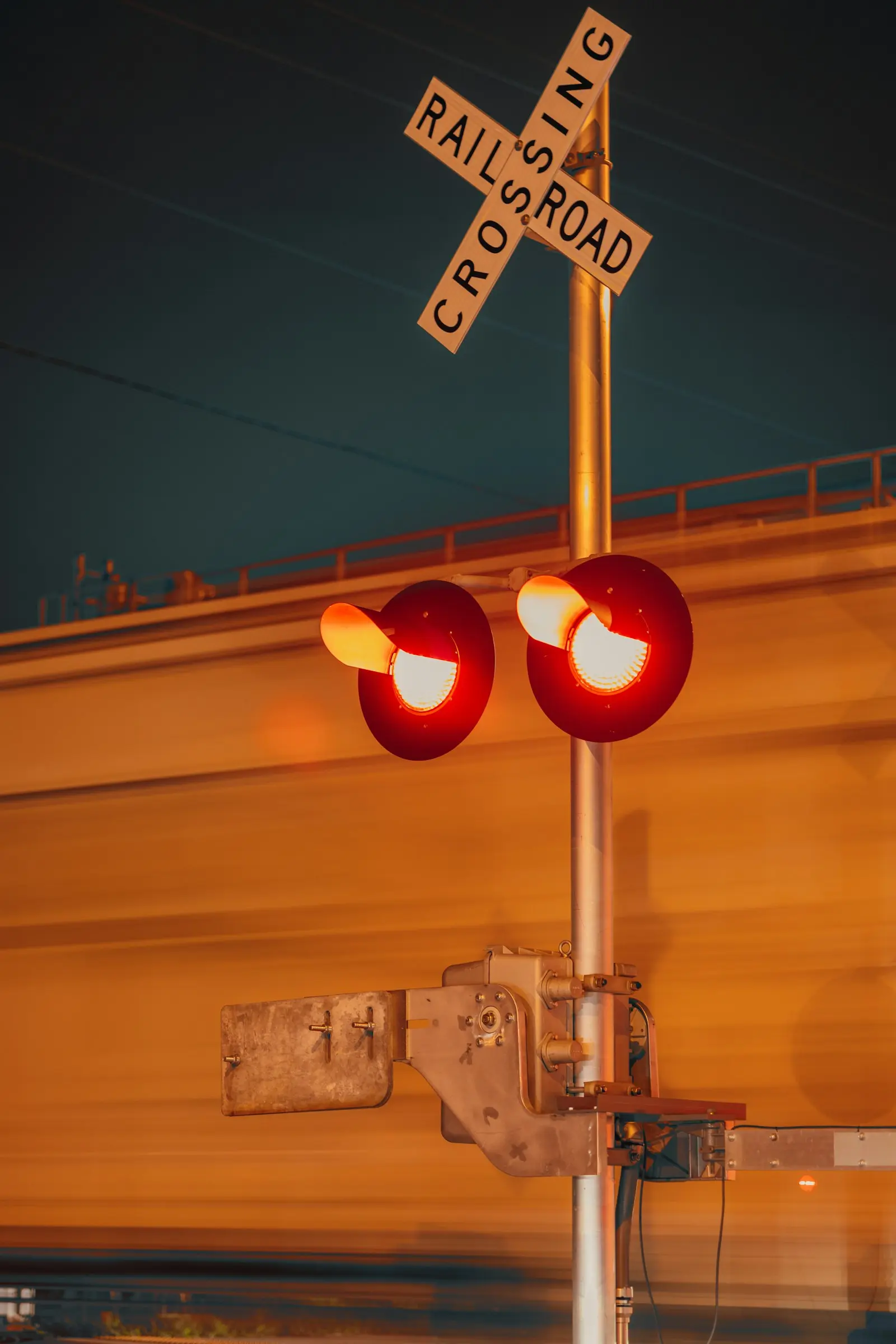

Why do trains blow their horns at night?
Federal regulation requires the horn at every public grade crossing regardless of time. Night use isn't different from day use — 49 CFR § 222.21 mandates the same 15-20 second window. What changes at night is how far the horn carries: cooler air, atmospheric inversions, and lower ambient noise mean a horn 2 miles away sounds louder at 2 AM than at 2 PM. Trains run 24/7 because rail traffic doesn't pause for sleep schedules.

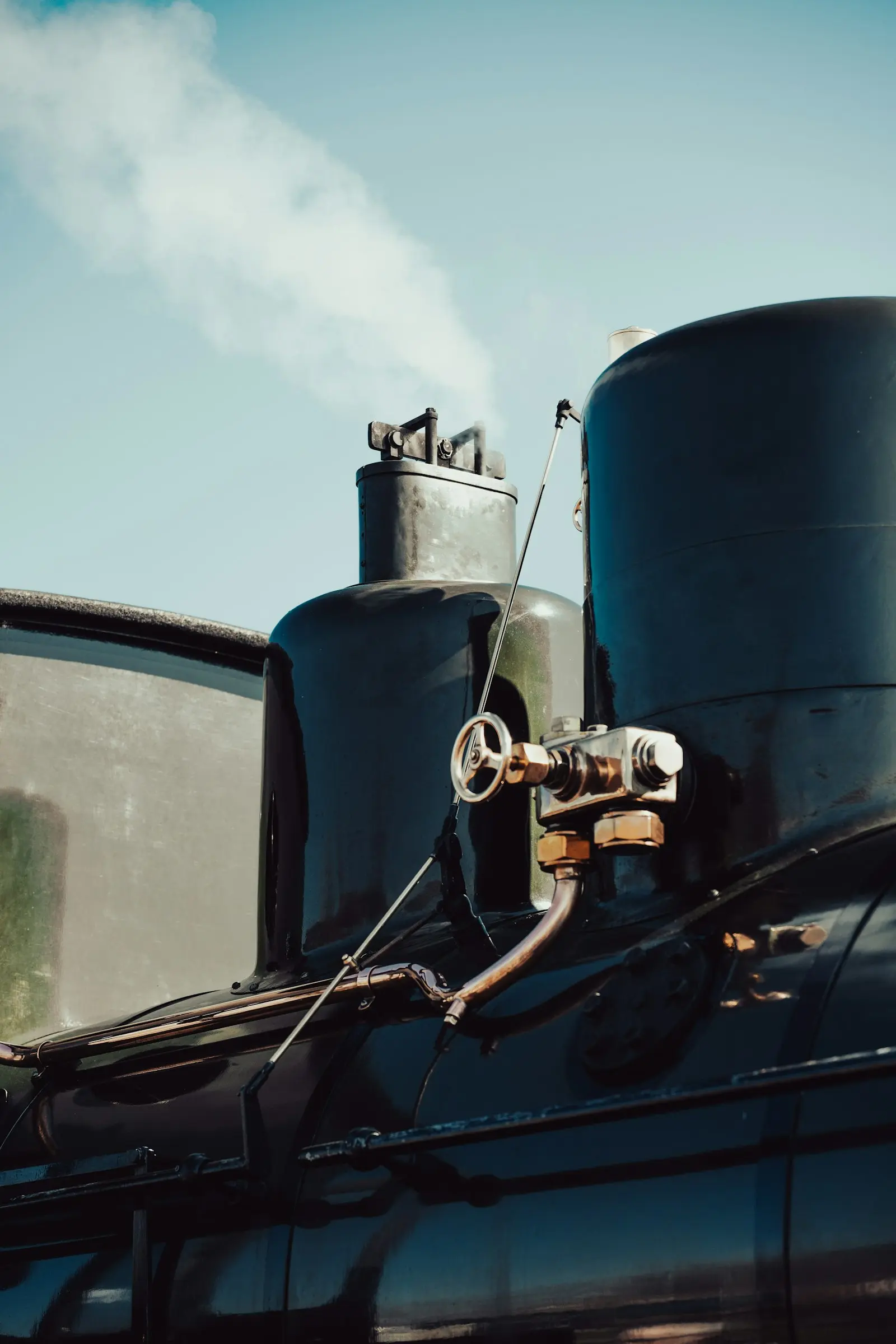

Is a train horn the same as a train whistle?
No. A train whistle is a steam-powered fipple (boiler steam vibrates air at the whistle lip — same physics as a recorder or pipe organ flute). A train horn is air-powered chord horn (compressed air vibrates a metal diaphragm). Whistles were standard until ~1960 when diesel-electric locomotives replaced steam; horns took over. Modern locomotives use horns; preserved steam locomotives use whistles.
Should I buy an air horn or a battery-powered (portable) horn?
Tank-fed air horns hit 142-149 dB but require permanent install, electrical work, and 1-3 second blasts before tank pressure drops. Battery-powered (Milwaukee M18, DeWalt 20V, Ryobi 18V) horns are portable, simpler to install, and sound until the battery dies — but typically peak around 130-140 dB. For permanent vehicle install, air wins. For shop, off-road, or portable applications, battery wins.
What's the loudest train horn you can legally buy?
For aftermarket: HornBlasters Shocker XL / Shocker S6 at verified 147.7 dB at 3 ft. Real recommissioned Nathan AirChime K5LA at 149 dB at the source. Vendor claims of 150-178 dB on Vevor / Viking / FARBIN kits are physically implausible — those products realistically hit 130-145 dB. "Legal to buy" applies in all 50 US states; legal to use routinely on public roads is a different question (typically violates state vehicle code "unreasonably loud" provisions).
Related and sources
Where the rest of the site connects to this hub.
Related pages
Primary sources
- 49 CFR § 222 — FRA train horn rule
- Nathan AirChime — manufacturer reference
- Wikipedia — Train horn
- OSHA — Occupational Noise Exposure
- NIOSH — Noise and Hearing Loss Prevention
- Editorial methodology and disclosure
We aggregate publicly available data only. Every numeric claim links to its source. We do not perform hands-on testing.
