How to Install a Train Horn on a UTV/RZR
Train horn install for UTV/RZR — Polaris RZR, Can-Am Maverick, Yamaha YXZ. Compact roll-cage mounted air horn, 12V battery accessory tap, off-road weatherproofing.

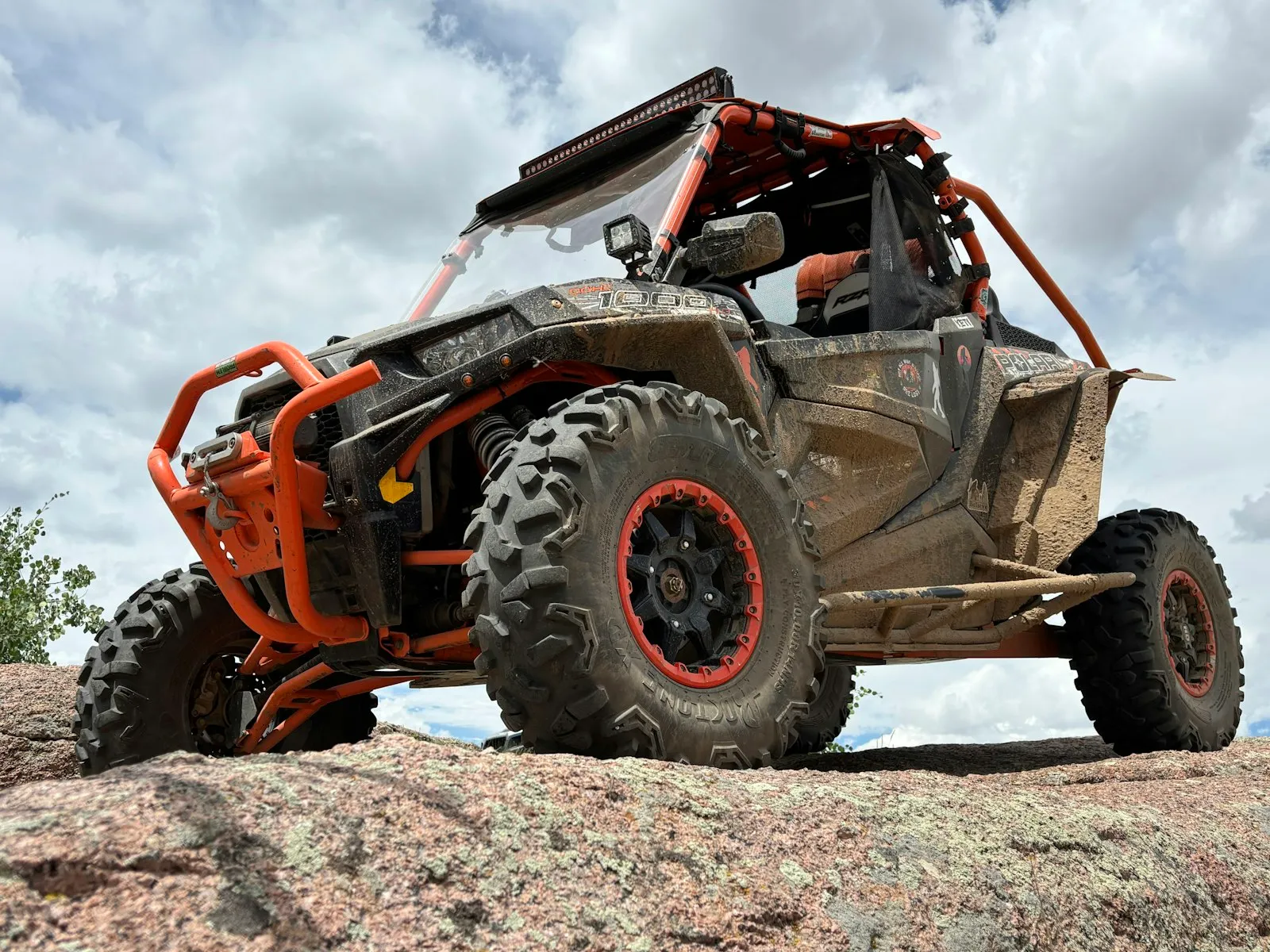

UTV / Side-by-Side platforms (Polaris RZR, Can-Am Maverick, Yamaha YXZ, Honda Talon, Kawasaki Teryx, etc.) have roll cages, accessible 12V batteries, and dust/water-rated wiring — all of which make them surprisingly easy train horn install platforms compared to a bicycle or motorcycle. Most installs use roll-cage-mounted compact 12V air horns with weatherproof wiring tapped from the OEM accessory port.
- Difficulty
- Moderate
- Roll cage + weatherproof wiring
- Time
- ~2 hours
- Once trigger location chosen
- Cost
- $150–$400
- Compact 12V air horn + relay
- Output
- 130–142 dB at source
- Compact off-road horn
- Best mount
- Roll cage upper bar
- Above driver
- Power source
- OEM accessory port
- Or direct 12V battery tap
Why UTVs are good train horn platforms
- Accessible 12V battery under the seat or in the rear cargo area
- Weatherproof OEM wiring harness — easy to tap accessory power
- Roll cage provides multiple mount points for compact horn units
- Off-road use case — train horn is genuinely useful for signaling other UTV groups in dust or noise
- Less legal restriction off-road than on public roads
Mounting on a UTV roll cage
The roll cage upper bar (above the windshield, just behind the driver’s head) is the dominant mount location. Trumpet outlet pointing forward; horn body protected from sticks and overhead obstacles by the cage geometry.
Alternative locations:
- Inside the dash for stealth installs
- Hood / front grille area for racing-style projection
- Rear cage bar for attention behind the driver
Recommended kits
- HornBlasters compact motorcycle horn ($130–$200) — 123.7 dB measured. Weatherproof.
- HornBlasters Outlaw 127H Single Trumpet ($300+) — 142 dB. Larger but louder.
- Generic 12V “150 dB” off-road horn ($80–$150) — entry-level Amazon options. dB claims optimistic; expect 130 dB realistic.
Step-by-step
- Disconnect 12V battery under the seat.
- Mount the horn to a roll cage bar using the supplied U-bolts or fabricated bracket. Verify clearance from helmet during normal driving.
- Mount the relay in a dry location (under the dash or in the firewall area).
- Run 12 AWG wire from battery + through 10A inline fuse to relay Pin 30; from Pin 87 to horn +.
- Ground the horn to chassis on bare metal.
- Wire the relay coil (Pins 85/86) to a dash-mounted toggle or the OEM horn switch.
- Heat-shrink every connection. UTVs see dust and water; bare connections fail fast.
- Test fire before going off-road.
For full relay topology see /install/by-task/wiring-with-relay/.
Common UTV-specific problems
- Vibration loosens fittings. Off-road riding vibrates harder than highway use. Thread-lock everything.
- Water ingress at the horn body. Mount with the trumpet outlet facing slightly down so water runs out.
- Roll cage clamp pressure can crush thin-wall tubing. Use rubber-padded clamps.
- Battery dies after long use — UTV batteries are smaller than truck batteries. Cycle-test the battery with horn use.
Legal reminder
Off-road use of train horns on UTVs is broadly unrestricted across U.S. states. Public-road UTV use (where allowed by state) follows the same vehicle code horn caps as any other vehicle (~110 dB typical). See /legal/.
Sources
- HornBlasters — Motorcycle Horns landing page (compact 12V air horn options applicable to UTVs)
- HornBlasters — Wiring the Motorcycle & Truck Electric Air Horns (relay topology reference)
We do not perform hands-on installs. Verify all wiring against your specific UTV manufacturer’s accessory specifications before powering up.
