Water Traps & Air Dryers for Train Horn Systems: Do You Need One?

Every train horn system manufactures its own water: the compressor concentrates the humidity in the air it swallows, and that moisture condenses inside your tank and lines. A water trap or air dryer can keep that water away from your solenoid valve and horn diaphragms — but only if you understand what each one does and where it actually belongs on a 12V system.

Why Train Horn Systems Make Their Own Water

This isn’t a leak or an installation mistake — it’s physics. When your compressor squeezes air, the water vapor in that air gets concentrated right along with it. Hot compressed air holds the vapor just fine, but as the air cools in the tank and lines, the vapor condenses into liquid water, per Atlas Copco’s compressed-air reference material. The more humid the day, the more water every fill cycle deposits into your system.

And that water doesn’t stay put. HornBlasters says moisture buildup from infrequent tank draining is the leading cause of customer issues with horn kits, and calls water “the number one enemy of any electrical component.” Left alone, it rusts a steel tank from the inside, corrodes valve internals, and eventually sprays out of your trumpets as a sad, gurgling honk.

What a Water Trap Actually Does

A water trap — also sold as a water separator or filter water trap — is a simple in-line device. Air enters a bowl and gets spun or redirected so that liquid droplets and solid particles fall out of the airstream. The collected water pools at the bottom of the bowl until it’s released, either manually through a small drain or automatically with a float-style drain that purges itself.

Note the key word: liquid. A trap catches water that has already condensed. It does very little about vapor still riding in the airstream, which is why placement matters so much (more on that below). Per Atlas Copco, even a properly sized separator removes roughly 80–90% of the liquid moisture that reaches it — good, not perfect.

A concrete example from the 12V world is Viair’s Filter Water Trap:

Port sizes

1/4”, 3/8”, or 1/2” NPT

Manual drain version

Rated 0–230 PSI

Automatic drain version

Rated 29–175 PSI

Price

$83.25 for the 1/4” automatic version

Included

Mounting bracket with hardware

How an Air Dryer Is Different

An air dryer attacks the problem one step earlier: instead of catching liquid, it pulls water vapor out of the airstream before it ever condenses. The style you’ll realistically fit on a vehicle is an in-line desiccant dryer — a clear bowl packed with moisture-absorbing beads that the air flows through.

A typical example is Compressor Source’s 1/2” NPT in-line desiccant dryer at $49.95. It removes water, oil, and humidity; the beads change from blue to light pink when they’re saturated and need replacing; two refills come in the box; and the whole unit measures about 3” wide by 8” tall.

But check the fine print: that dryer is rated for a 150 PSI maximum. If your system uses a 110/145 pressure switch, you’re under the ceiling. If you’re running one of the common 165/200 setups, you’d be pushing 200 PSI through a bowl rated for 150 — a burst waiting to happen. Match any trap or dryer’s pressure rating to your cut-out pressure before you buy; our guide to train horn pressure switches explains where those numbers come from.

The Placement Problem on a 12V System

In an industrial shop, the moisture trap goes immediately after the aftercooler and before the receiver tank, per Atlas Copco — the aftercooler chills the air, the vapor condenses, and the trap catches the water before it reaches storage.

Your truck doesn’t have an aftercooler. Air leaves a 12V compressor hot, and hot air keeps its moisture as vapor — so a trap mounted right at the compressor outlet has almost nothing to catch. The air doesn’t cool (and the water doesn’t condense) until it’s sitting in the tank. That’s why the practical location on a train horn system is downstream: in the line between the tank outlet and the solenoid valve. There it intercepts the liquid that would otherwise ride into your valve and horns every time you hit the button.

This also means no trap or dryer can stop condensation from forming inside the tank itself — the tank is where the cooling happens. The drain valve on the bottom of your tank still does the heavy lifting. If you’re fuzzy on that routine, start with our guide on how to drain a train horn air tank and come back.

So Do You Actually Need One?

Honest answer: a water trap is the second moisture defense to buy, not the first. Regular tank draining is non-negotiable either way. A trap or dryer earns its keep in specific situations:

• You live in a humid climate — Gulf Coast, Southeast, Midwest summers — where every compressor cycle loads the tank with water
• You see freezing temperatures, where carried-over water can ice up lines and valves — our winter prep guide covers why that kills horns in cold snaps
• You use the system as onboard air for tires or tools and want dry air at the coupler

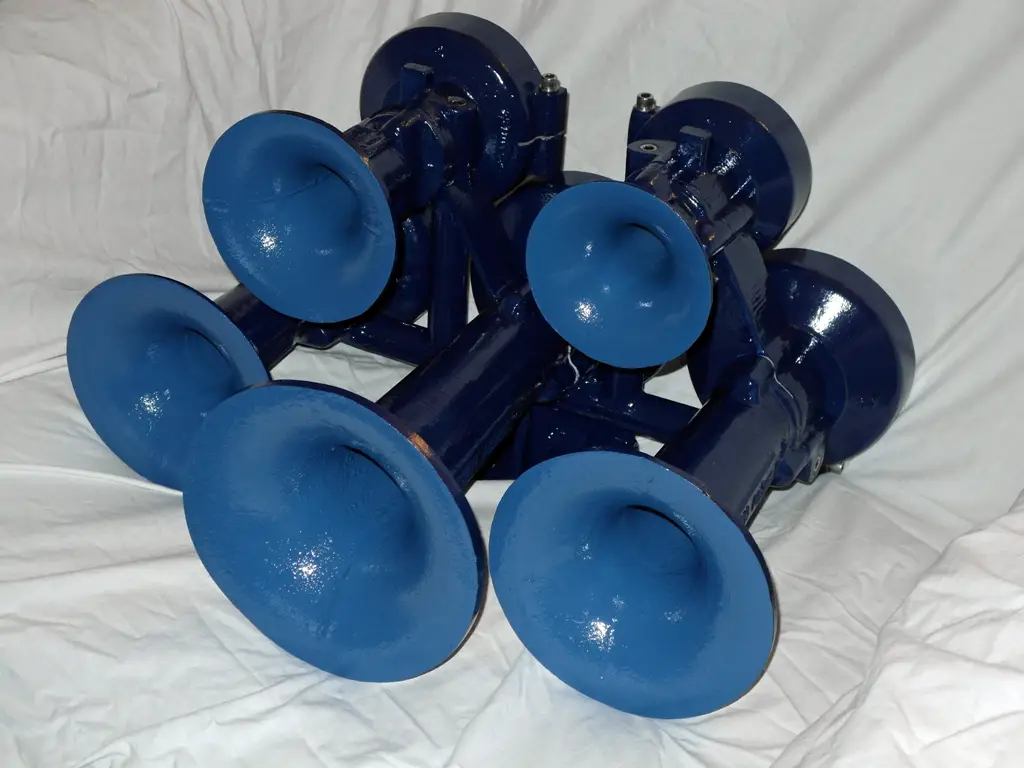

• You’re protecting an expensive solenoid valve or an authentic locomotive horn
• You want an automatic-drain trap because you know you’ll forget to drain manually

And when it’s fair to skip or postpone one:

• You’re in a dry climate where tanks collect very little water between drains
• You already drain the tank monthly (or more) and the horn sees only occasional use
• You’re on a tight budget — the money is better spent on solid fittings or a quality check valve first

Installing One the Right Way

1. Drain the tank to zero PSI before opening any fitting.
2. Cut into the line between the tank outlet and the solenoid valve, with the bowl hanging vertically so water collects at the drain.
3. Match the trap’s NPT port size to your air line fittings and seal the threads properly.
4. Use the mounting bracket — bolt the trap to the frame or a crossmember so its weight never hangs on the air line.
5. Pressure up and soapy-water test every new joint; our air leak diagnosis guide walks through the method.

Living With It: Ongoing Maintenance

A trap or dryer adds one small chore, it doesn’t remove one. Crack the trap’s drain every time you drain the tank — HornBlasters recommends draining at least once a month, and more often in humid climates. If you run a desiccant dryer, glance at the bowl during the same routine and swap the beads once they’ve turned pink. HornBlasters also recommends changing the compressor’s intake air filter every three months to keep it from overheating.

One more tell worth knowing: if your horn suddenly sounds higher-pitched or squeaky, that’s usually moisture already sitting in the diaphragm, per HornBlasters’ maintenance guidance — a few long blasts will typically blow it out. If the sound doesn’t recover, it’s time to drain everything and inspect.
