HornBlasters Admiral 228H Train Horn Kit Review (2026)

Methodology

This review aggregates publicly available information from manufacturer specifications, retailer listings, and verified user reviews. We do not perform hands-on testing. Last reviewed May 27, 2026. Every numeric claim below links to its source — primarily the official HornBlasters product page for the Admiral 228H kit, cross-checked against the standalone Admiral horn listing and HornBlasters’ own decibel-disclosure pages.

Quick verdict

The HornBlasters Admiral 228H is a premium, all-in-one train horn kit built around a five-chime solid-brass horn with a chrome finish, paired with a 2-gallon, 150 PSI air system. We rate it 4.3/5. It earns high marks for build quality, kit completeness, and HornBlasters’ refusal to print inflated decibel claims — but it asks a premium price and, like the rest of the brand’s lineup, ships with no published dB rating, so you’re buying on build and reputation rather than a number on a spec sheet.

What it is

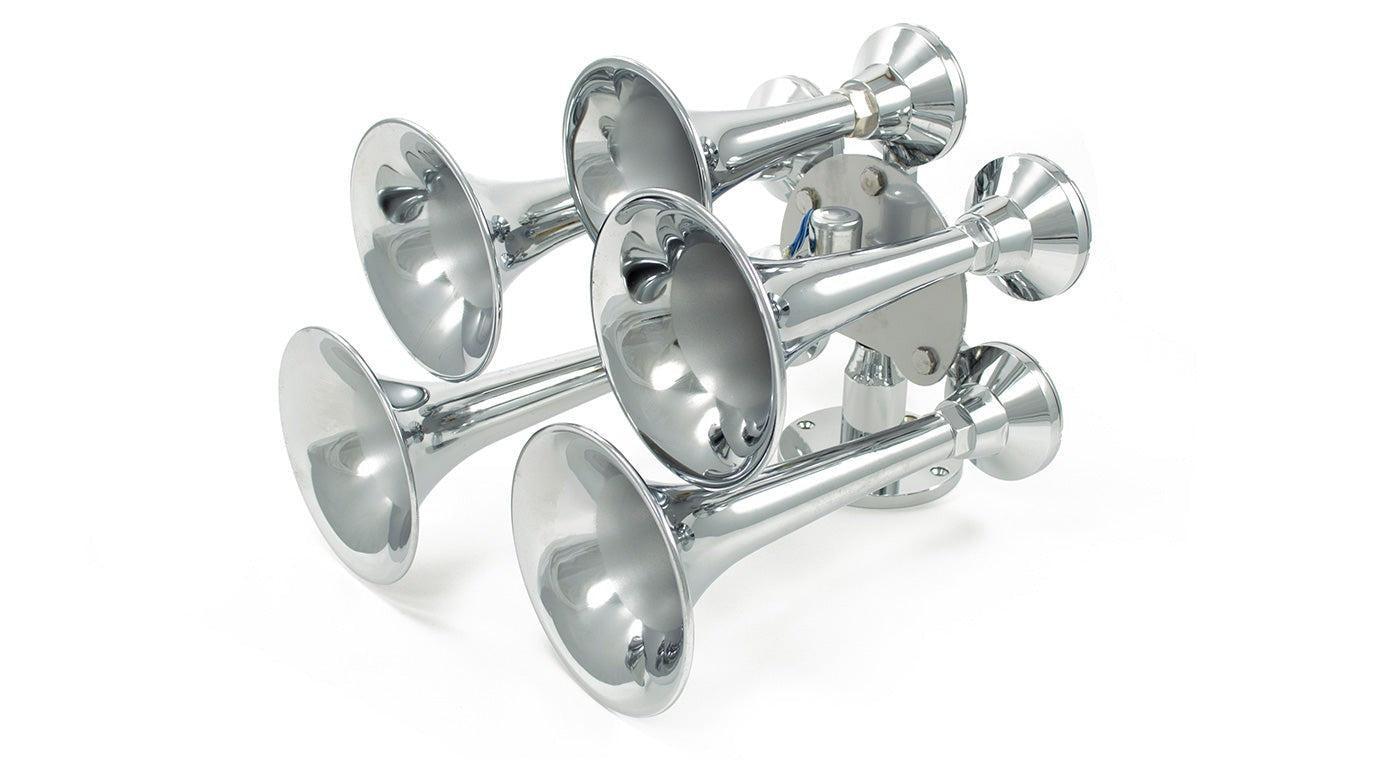

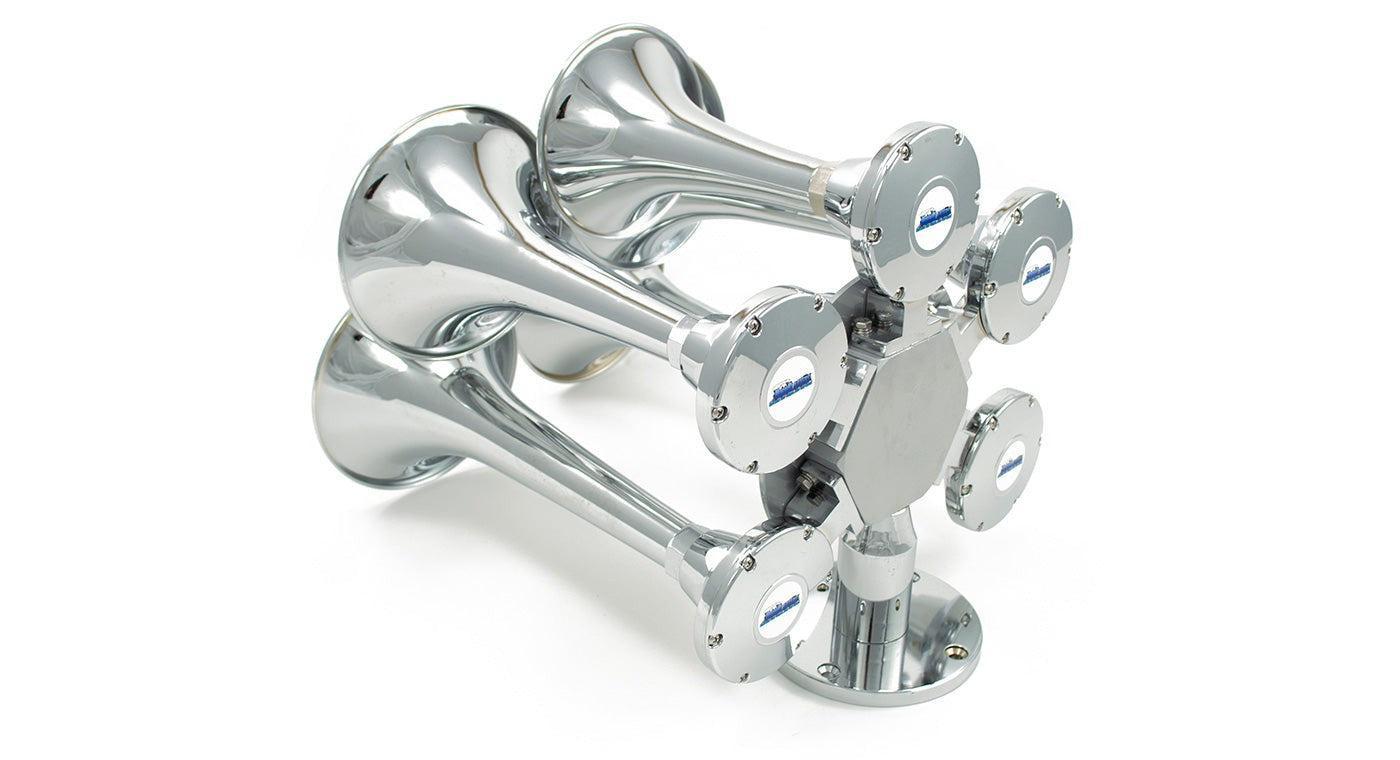

The Admiral 228H (kit part number HK-C5-228H) is a complete bolt-on train horn package aimed at truck, SUV, and even marine owners who want a genuine locomotive-style chord. The horn itself is a 5-chime, solid-brass unit with a chrome finish. It is sold as an “all-in-one” kit, meaning the air source, compressor, valve, lines, and hardware come in the box — there’s no separate onboard-air system to source. HornBlasters positions the bundled HornAir 228H air source as beginner-friendly because it arrives pre-plumbed and pre-wired. In practical terms, it’s a step up in both aesthetics and price from the company’s painted 4-trumpet kits.

Specifications

Spec	Value
Kit part number	HK-C5-228H
Horn type	5-chime train horn
Material	Solid brass, chrome finish
Sound output (dB)	Not published by manufacturer
Operating pressure	150 PSI
Restart pressure	110 PSI
Air tank	2 gallons
Compressor	HB-2 air compressor
Fill time (0–145 PSI)	3 min 40 sec (± 10 sec)
Continuous honk time	~5 seconds on a full 2-gallon tank
Horn dimensions	17” L × 16” W × 15.5” H
Horn weight	19.8 lb (8.98 kg)
Air source dimensions	18.9” L × 5.9” W × 13.7” H
Air source weight	17.15 lb (7.78 kg)
Voltage	12V DC
Max current draw	19 amps
Horn port	1/2” NPT
Price	$799.99 sale / $949.99 regular
Warranty	2-year manufacturer’s defect warranty

Note: HornBlasters does not disclose chord frequencies in Hz for the Admiral, and it deliberately omits a decibel rating. The company publishes a position page explaining why it considers most advertised dB figures misleading. For reference, the brand’s separately-tested Conductor’s Special 228H is listed at 147.7 actual dB at 3 feet on Amazon, but that figure applies to that horn, not the Admiral, so we do not transfer it.

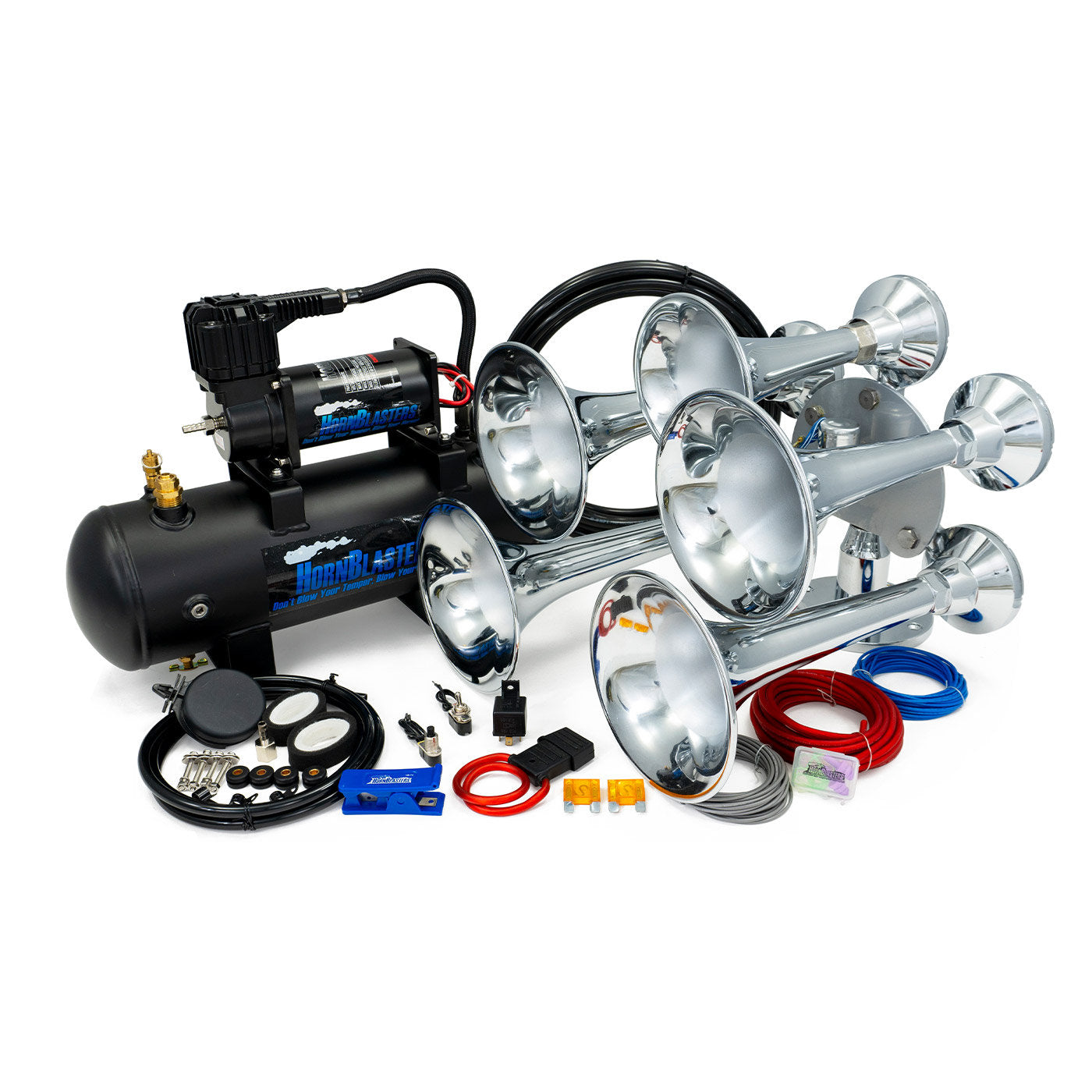

What’s in the box

Per the official kit listing, the Admiral 228H ships with:

• Admiral 5-chime chrome train horn (solid brass)
• 228H air source unit (2-gallon tank + HB-2 compressor)
• Pressure switch
• Pre-installed electric air valve
• Intake filter plus spare filter elements
• Air lines (10 ft and 6 ft)
• Wiring (red/blue/grey gauge) and wiring kit
• Brass NPT fittings
• Mounting hardware
• Instructions
• Earplugs

Pros

• Genuine solid-brass horn with chrome plating. Most kits at and below this price use die-cast zinc or ABS; the Admiral’s brass construction is a real durability and acoustic advantage.
• Truly complete kit. Compressor, 2-gallon tank, valve, lines, fittings, and hardware are all included and pre-wired, which lowers the barrier for a first-time installer.
• Five-chime chord. The extra trumpet over a typical 4-chime setup produces a fuller, more authentic locomotive tone — an editorial impression, but consistent with how multi-chime horns layer frequencies.
• Honest specs. HornBlasters publishes real pressure numbers (150 PSI operating, 110 PSI restart) and openly declines to advertise inflated dB ratings. That transparency is rare in this category.
• Backed by support. A 2-year defect warranty plus HornBlasters’ large DIY community and parts catalog make long-term ownership easier.

Cons

• No published loudness number. Honest or not, the absence of any dB figure makes it impossible to compare the Admiral on paper against competitors.
• Premium pricing. At $799.99 on sale and $949.99 list, it costs far more than entry-level 4-trumpet kits.
• Limited air reserve. The 2-gallon tank yields only about 5 seconds of continuous honk before the compressor has to refill — and a 0–145 PSI fill takes ~3 min 40 sec.
• Bulk and weight. The horn alone is 19.8 lb and the air source adds another 17.15 lb; mounting location needs planning.
• Electrical demand. A 19-amp max draw requires a properly fused, relay-switched 12V circuit — not a hookup to wire casually.

Alternatives

• HornBlasters Conductor’s Special 228H — the same 2-gallon 228H air platform but with the 4-trumpet Shocker-style horns and a published 147.7 dB at 3 ft; a better pick if a verified loudness number matters more than the brass/chrome look.
• HornBlasters Rhino 544 — a larger air-system kit for buyers who want more reserve air and longer honk time.
• HornBlasters Shocker XL — the brand’s flagship loud setup, for those prioritizing maximum output over the Admiral’s premium finish.

Install / compatibility notes

The Admiral 228H is a 12V DC air-powered system, so it needs a vehicle electrical system that can supply its 19-amp peak draw through a fused relay — wire the compressor and valve to the battery with appropriate protection, never directly off a switch. Because the air source is self-contained (compressor + 2-gallon tank in one unit measuring about 18.9” × 5.9” × 13.7”), most installers mount it in a truck bed toolbox, under the bed, or in a trunk, with the horn under the vehicle facing rearward or down. The horn’s 17” × 16” × 15.5” footprint is significant, so confirm clearance before buying. The kit includes 10 ft and 6 ft air lines, which gives flexibility to separate the horn and air source across the vehicle. HornBlasters markets the horn for both road and marine use, but check local laws — aftermarket train horns are restricted or illegal for on-road use in some jurisdictions.

FAQ

How loud is the Admiral 228H?

HornBlasters does not publish a decibel rating for the Admiral, and it explains on its site why it avoids advertised dB numbers it considers misleading. As a 5-chime solid-brass horn fed at 150 PSI, it is unambiguously a loud, locomotive-grade horn, but we won’t quote a figure the manufacturer hasn’t measured for this specific model.

Does it come with everything I need to install it?

Yes. It’s an all-in-one kit that includes the horn, the 2-gallon HB-2 air source, pressure switch, electric valve, air lines, wiring, fittings, mounting hardware, and instructions. You’ll still need basic tools and, for a clean install, a relay and inline fuse sized for the 19-amp draw.

How long can I hold the horn down?

The 2-gallon tank supplies roughly 5 seconds of continuous sound on a full charge. After that, output drops as pressure falls to the 110 PSI restart point and the compressor refills; a full 0–145 PSI fill takes about 3 minutes 40 seconds.

Why does it cost more than other HornBlasters kits?

The Admiral uses a solid-brass horn with a chrome finish rather than a painted or cast trumpet set, which is the main driver of its $799.99 sale / $949.99 regular price. You’re paying for the material and finish as much as the air system.

Is it legal to use on the street?

That depends entirely on your state and local laws. Many jurisdictions restrict or prohibit train-horn-level sound output on public roads. Treat it as an off-road/show or marine accessory unless you’ve confirmed it’s permitted where you drive. See our buyer’s guide for more on legality considerations.

What warranty does it carry?

HornBlasters backs the kit with a 2-year manufacturer’s defect warranty.

Sources

• HornBlasters — Admiral 228H Train Horn Kit (official product page)
• HornBlasters — Admiral Chrome Finish Train Horn (standalone horn specs)
• HornBlasters — Why fake decibel ratings mislead buyers
• HornBlasters — How loud are your train horns?
• Amazon — HornBlasters Conductor’s Special 228H listing (147.7 dB at 3 ft, for comparison)

---
