- +Genuine 5-chime solid-brass horn cluster with a deep, locomotive-style chord
- +Big 5-gallon tank plus 100%-duty HB-1NM compressor gives ~10 seconds of continuous honk
- +150 PSI operating pressure with a 110 PSI cut-in keeps the chord full between blasts
- +HornBlasters declines to print inflated decibel numbers — refreshing acoustic honesty
- +Detailed published specs: weights, dimensions, amperage, duty cycle and fill time all disclosed
- +Strong aftermarket support, install guides and a manufacturer's defect warranty
- −No published dB rating or test distance — you cannot compare loudness on paper
- −Chord frequencies (Hz) are not disclosed
- −At $999.99 it is among the most expensive consumer train-horn kits
- −Full-size 17-inch horn and 5-gallon tank demand real mounting space under a truck
- −25 A draw and a 5-gallon tank are overkill for a small daily-driver
Methodology
This review aggregates publicly available information from manufacturer specifications, retailer listings, and verified user reviews. We do not perform hands-on testing. Last reviewed May 27, 2026. The numbers below come from HornBlasters’ own Admiral product page and its HornAir air-system listing, cross-checked against retailer descriptions of the Admiral 5-chime horn. Where the manufacturer does not publish a figure — most notably a decibel rating — we say so rather than estimate.
Quick verdict
The HornBlasters Admiral 544K is the company’s flagship 5-chime, solid-brass kit paired with its heavy-duty HornAir 544K onboard air system. It earns a 4.4/5 from us. The score reflects an unusually complete spec sheet — pressures, duty cycle, amperage, weights and dimensions are all published — and HornBlasters’ deliberate refusal to advertise a fake decibel number. What keeps it from a higher mark is the flip side of that honesty: with no dB figure or chord frequencies disclosed, buyers cannot compare its loudness on paper, and at $999.99 it sits at the very top of the consumer price range.

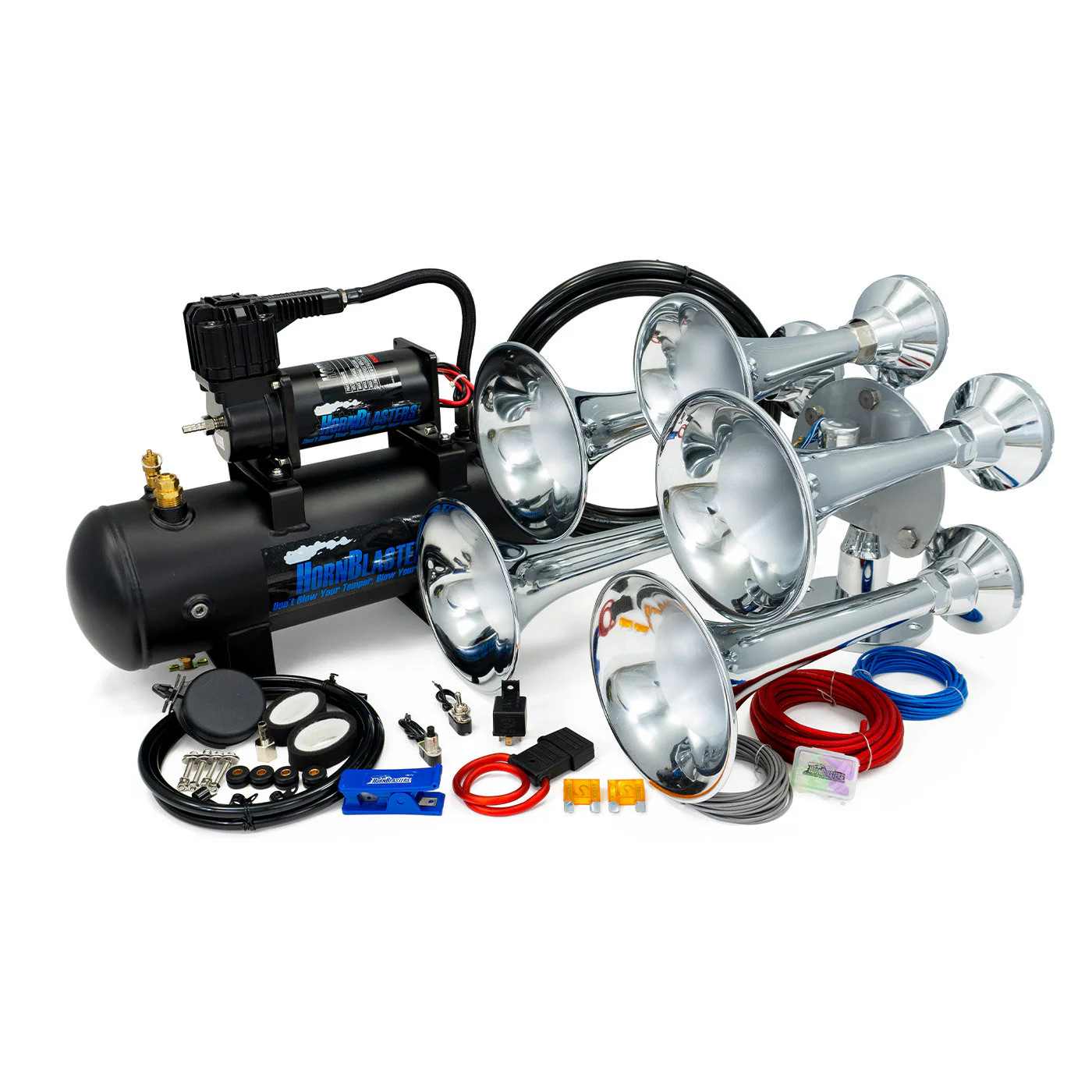

What it is
The Admiral 544K is a complete train-horn kit: a five-trumpet brass horn plus everything needed to drive it with compressed air. The “544K” designation refers to the HornAir 544K air system — a 5-gallon tank fed by the 100%-duty HB-1NM compressor. It is aimed at owners of full-size trucks, SUVs, and large rigs who want a true locomotive-style chord rather than the thinner blast of a small electric horn, and who have the underbody real estate to mount a full-size horn and a 5-gallon tank.

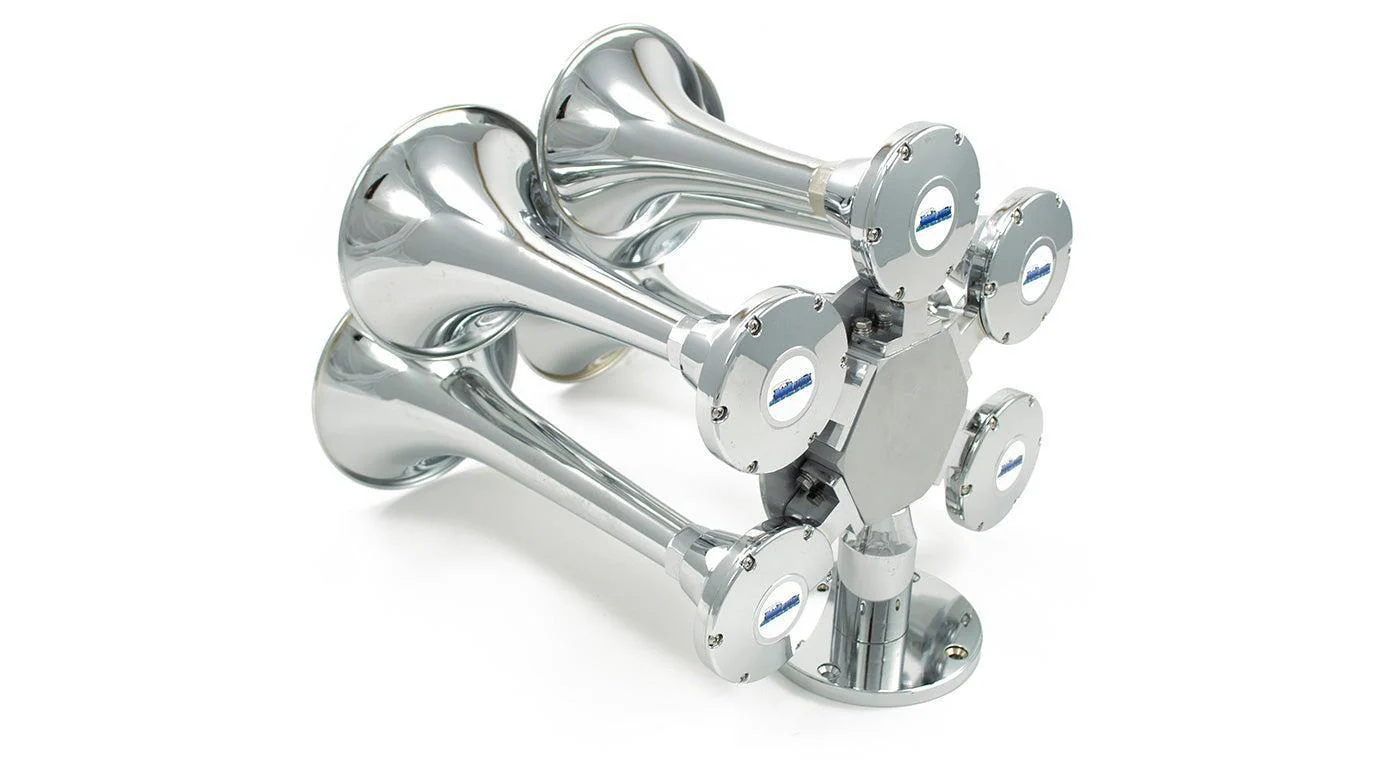

The horn itself is the same five solid-brass bells HornBlasters uses across its Admiral line; the 544K is sold in a black finish (SKU HK-C5-544K) and a chrome finish (HK-C5-544), both at the same price. This is the heavy-duty step up from the smaller Admiral 228H, which uses a 2-gallon tank.
Specifications
| Spec | Value |
|---|---|
| Horn type | 5-chime, solid-brass bells |
| Operating pressure | 150 PSI |
| Cut-in (restart) pressure | 110 PSI |
| Tank | 5 gallon (HornAir 544K) |
| Compressor | HB-1NM, 12V DC |
| Duty cycle | 100% @ 100 PSI |
| Max amperage | 25 A |
| Average fill time | ~1 min 30 sec |
| Continuous honk time | ~10 seconds (heavy-duty variant) |
| Horn dimensions | 17” L × 16” W × 15.5” H |
| Horn weight | 19.8 lb |
| Tank dimensions | 20.5” L × 9.5” dia × 11.5” H |
| Tank weight | 20 lb |
| Valve | Pre-installed electric air valve, 1/2” compression fitting |
| dB rating | Not disclosed by manufacturer |
| Chord frequencies | Not disclosed |
| Price | $999.99 |
| Warranty | Manufacturer’s defect warranty |
- Sound
- 5-chime solid brass, no dB published
- Air
- 5-gal tank, 150 PSI, 100% duty
- Honk time
- ~10 sec continuous
- Price
- $999.99

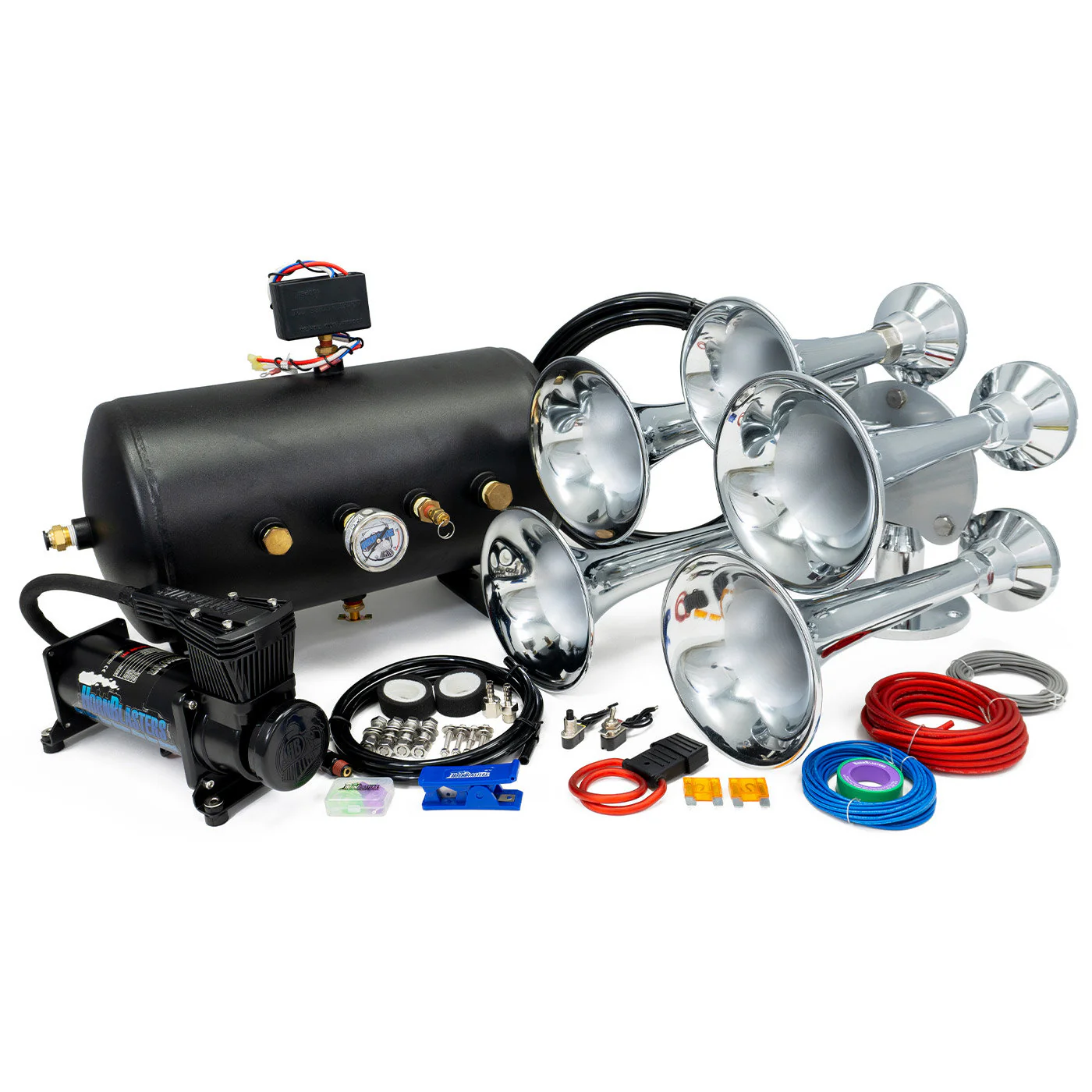

What’s in the box
Per HornBlasters’ kit listing, the Admiral 544K ships as a turn-key package:
- Admiral 5-chime solid-brass horn (black or chrome finish)
- HornAir 544K 5-gallon air tank
- HB-1NM 12V air compressor (100% duty cycle)
- Pre-installed electric air valve with 1/2” compression fitting

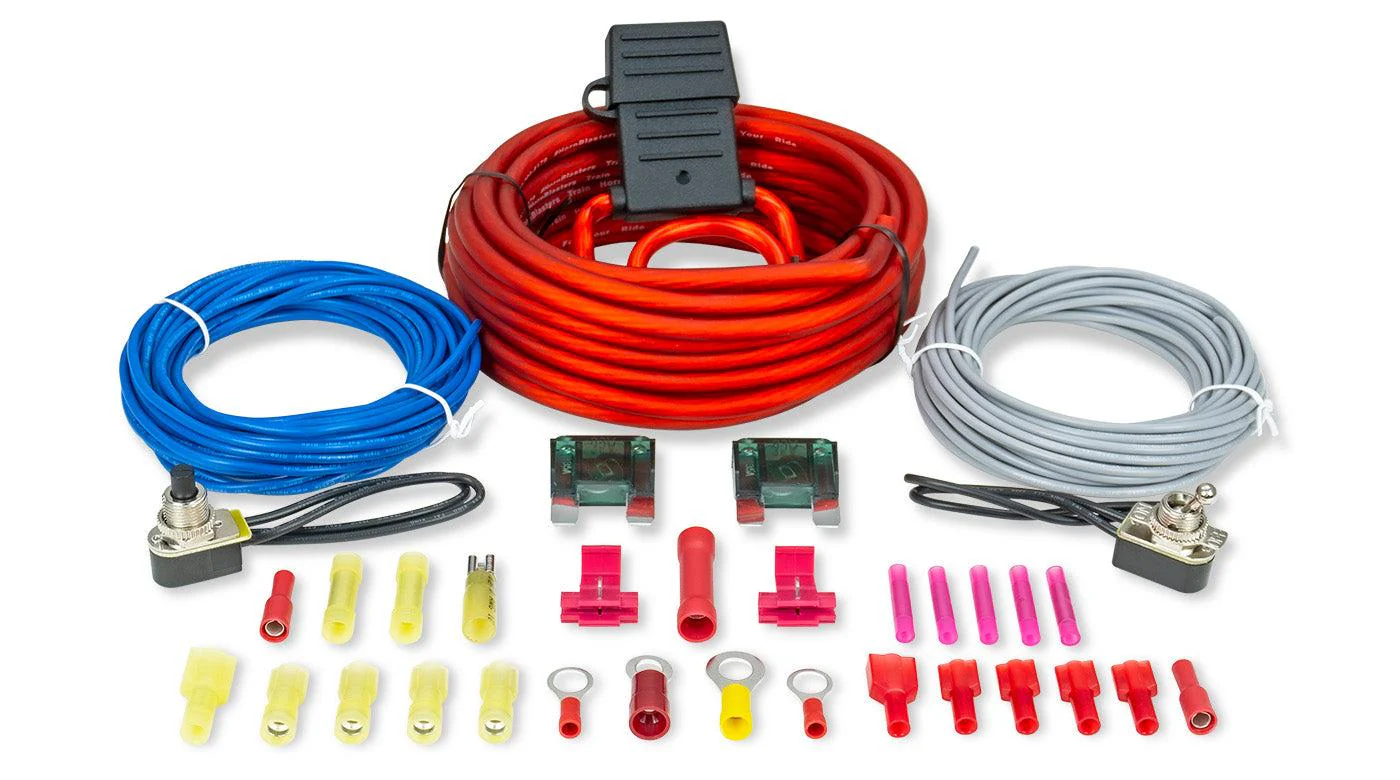

- Air line, fittings, pressure switch and wiring relay
- Mounting hardware and installation instructions
Pros
- A genuine five-bell solid-brass cluster delivers the deep, layered chord that thinner two- and four-trumpet horns cannot match.
- The 5-gallon tank and 100%-duty HB-1NM compressor support roughly 10 seconds of continuous honk and recover quickly.
- 150 PSI operating pressure with a 110 PSI cut-in keeps the chord at full volume across repeated blasts.
- HornBlasters openly declines to print inflated decibel numbers — a stance we view as a credibility plus in a category full of exaggerated claims.
- The spec sheet is thorough: amperage, duty cycle, fill time, weights and dimensions are all published, which helps with planning an install.
- Backed by a manufacturer’s defect warranty, extensive install resources, and a large owner community for support.
Cons
- No published dB rating or test distance means you cannot objectively compare its loudness against competitors on paper.
- Chord frequencies in Hz are not disclosed, so the exact tonal character is described only qualitatively.
- At $999.99 it is one of the most expensive consumer kits available — a premium over the 2-gallon Admiral 228H.
- The 17-inch horn plus a 5-gallon tank need significant, flat mounting space — easier on a full-size truck bed or frame than a compact vehicle.
- A 25 A peak draw and a 5-gallon reservoir are more system than a small daily-driver needs.
Alternatives
- HornBlasters Admiral 228H — the same 5-chime brass horn on a lighter 2-gallon air system at $799.99. The sensible step down if space or budget is tight and you don’t need a full 10-second blast.
- HornBlasters Rhino 544 — a three-chime horn on a comparable 5-gallon system; a slightly different chord and packaging for buyers who want the big tank without the five-bell cluster.
- HornBlasters Conductor’s Special 228H — a popular four-trumpet kit on a 2-gallon system, a mainstream choice that costs less than the Admiral line.
Install / compatibility notes
The Admiral 544K is an air-tank system, so installation is closer to plumbing than to wiring a simple electric horn. You need a flat, protected location for the 20.5-inch, 5-gallon tank — typically under a truck bed or along the frame rail — and clearance for the 17-inch horn to fire downward or rearward away from spray and road debris.
- Mount the 5-gallon HornAir tank securely to the frame or bed, keeping the drain accessible.
- Wire the HB-1NM compressor through the supplied relay; budget for its 25 A peak draw on a clean 12V circuit.
- Run air line from the tank to the horn’s pre-installed electric valve (1/2” compression fitting).
- Set the pressure switch so the compressor cuts in around 110 PSI and tops out at 150 PSI.
- Trigger the valve from a dedicated horn button rather than the factory horn circuit.
Because the compressor is rated at 100% duty cycle at 100 PSI, it tolerates the repeated cycling that train horns invite. The average ~90-second fill time means the tank refills fully in well under two minutes after a long blast. For a model-specific buying overview, see our 2026 buyer’s guide and the loudest train horns ranking. Always confirm local rules before fitting an aftermarket horn for street use.
FAQ
How loud is the Admiral 544K?
HornBlasters does not publish a decibel figure for the Admiral, and we will not invent one. The company has publicly argued against the inflated dB ratings common in this category. In qualitative terms, a five-bell solid-brass cluster running at 150 PSI produces a deep, full locomotive-style chord that owners describe as extremely loud, but there is no manufacturer-stated dB-at-distance number to cite.
What’s the difference between the 544K and the 228H?
The horn is the same 5-chime brass cluster. The difference is the air system: the 544K uses a 5-gallon tank (HornAir 544K) for roughly 10 seconds of continuous honk, while the 228H uses a 2-gallon tank rated for about 5 seconds. The 544K is $999.99 versus $799.99 for the 228H.
Is the horn brass or chrome?
The bells are solid brass. The 544K is offered in a black finish (HK-C5-544K) and a chrome finish (HK-C5-544); both are priced at $999.99 according to HornBlasters’ listing.
Will it fit my vehicle?
It fits any vehicle with room for a 17-inch horn and a 20.5-inch, 5-gallon tank, plus a 12V circuit that can handle the compressor’s 25 A peak. That makes full-size trucks and SUVs the natural home; compact cars usually lack the underbody space.
How long is the warranty?
HornBlasters backs the kit with a manufacturer’s defect warranty.
How quickly does the tank refill?
The HB-1NM compressor is rated at a 100% duty cycle at 100 PSI with an average fill time of about 1 minute 30 seconds, so the 5-gallon tank tops back up to operating pressure in well under two minutes after a sustained blast.
Sources
- HornBlasters — Admiral Train Horn Kit product page — kit specs: 150 PSI operating / 110 PSI cut-in, 5-gallon tank, HB-1NM compressor, 100% duty cycle, 25 A, fill time, horn and tank weights and dimensions, $999.99 price, manufacturer’s defect warranty, variant SKUs, chrome finish and 1/2” electric valve
- HornBlasters — Admiral 544K Train Horn Kit (5-Chime) — 544K heavy-duty variant, 5-chime solid-brass horn, ~10-second honk time
- HornBlasters — Rhino Train Horn Kits collection — Rhino is a 3-chime (tri-tone) horn
- HornBlasters — Admiral Train Horn Kits collection — Admiral line lineup and positioning
The Admiral 544K is the right pick for a full-size truck or SUV owner who wants HornBlasters' loudest 5-chime brass horn backed by a serious 5-gallon, 100%-duty air system — and who values honest specs over made-up decibel claims more than they mind the $1,000 price.
