Kleinn Model 500 Sentinel Triple Train Horn Review (2026)

Methodology

This review aggregates publicly available information from manufacturer specifications, retailer listings, and verified user reviews. We do not perform hands-on testing. Last reviewed: August 11, 2026. Primary source: Kleinn’s official Model 500 “Sentinel” product page, cross-checked against Kleinn’s HK6 kit page, the open-box listing on kleinn.com, and current retailer pricing at PartsHawk.

Quick verdict

The Kleinn Model 500 — now marketed as the “Sentinel” — is the entry point into Kleinn’s full-size 500 Series triples, and it earns a 4.0/5 from us. You get the same three-trumpet, chrome-plated ABS horn assembly Kleinn builds into its HK6 complete kit, a genuine 151.8 dB factory rating with the test pressure disclosed, and a proper Vortex 4 solenoid for $239.95 direct. The catch is the word assembly: there is no compressor or tank in this box, and Kleinn specifies a minimum 2.5-gallon tank running 140–160 PSI to hit the rated output. Budget for onboard air and this is one of the best-value name-brand triples you can bolt on.

What it is

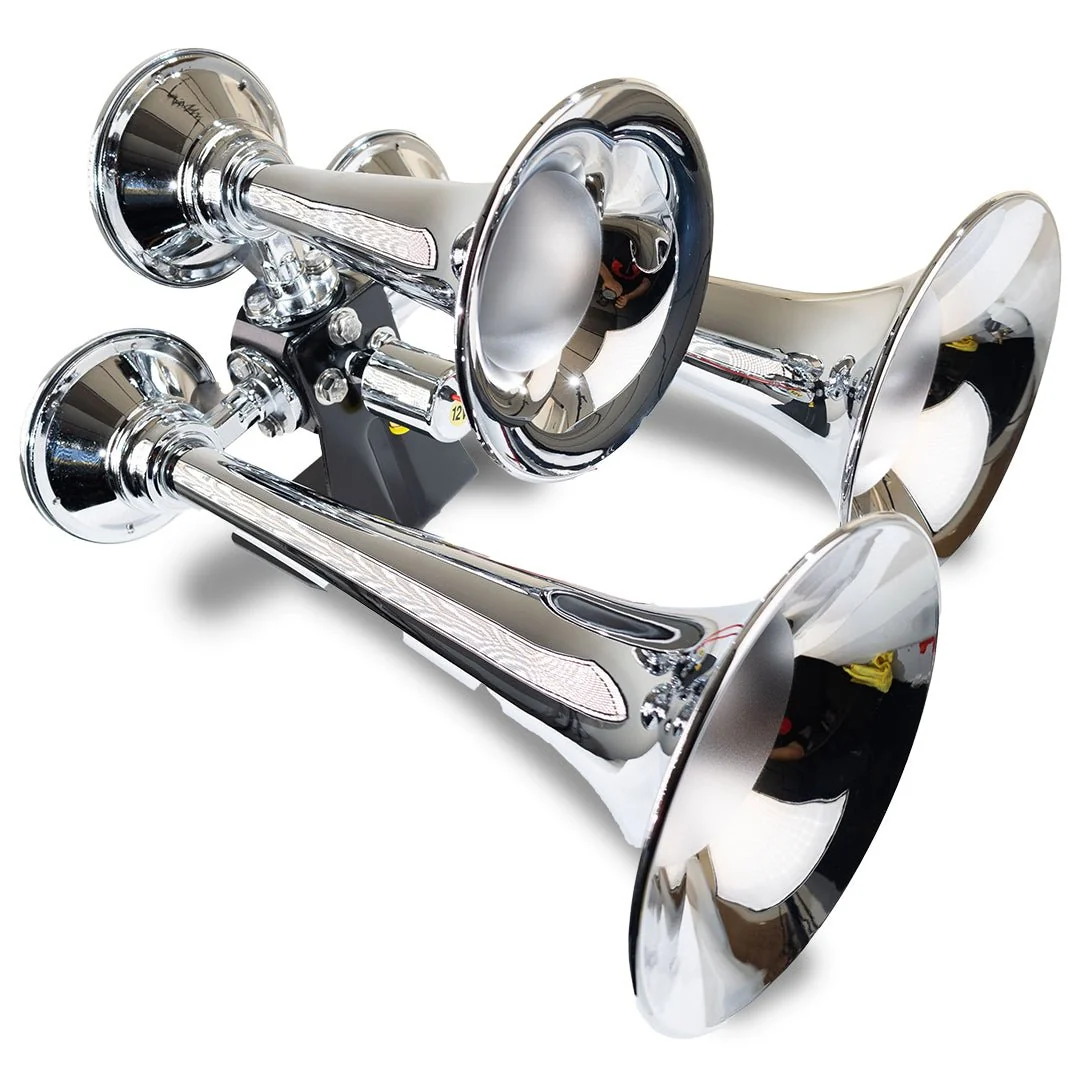

The Model 500 is a horn-only triple train horn assembly — three separately tuned trumpets (16”, 14”, and 11”) molded from high-impact ABS and finished in chrome plating, mounted on a heavy-duty triangular aluminum right-angle bracket. Kleinn positions it as the foundation of the 500 Series hierarchy: the 500 Sentinel uses chrome ABS trumpets, the 501 “Warlock” steps up to chrome-plated steel, and the 502 “Kraken” tops the range with brass-solenoid, 1/2”-airline plumbing. Per Kleinn’s product page, the trumpets are reversible on the bracket, so you can aim bells forward and backward for the multi-directional effect of a passing locomotive.

It ships with Kleinn’s Model 307 Vortex™ 4 12V electric solenoid valve and 12 feet of 1/4” OD airline, but no air source. This is the horn for someone who already has onboard air — or plans to buy a compressor/tank package — rather than an all-in-one kit buyer. If you want these horns with air included, that’s essentially the Kleinn HK6 kit at $619.95.

Who is that horn-only buyer in practice? Three groups keep showing up in the market for this part: owners who already installed onboard air for air suspension, tires, or a previous horn and just want louder trumpets; semi and heavy-truck drivers who can tee straight into their rig’s existing air supply; and builders piecing together a custom system who would rather pick their own compressor and tank than pay kit pricing. For all three, buying the horn assembly alone at $239.95 instead of a $600+ complete kit is exactly the right math.

On pricing: Kleinn sells the Sentinel direct for $239.95, PartsHawk had it in stock at $247.15 with only a few units left at our verification date, and Kleinn’s own site lists a factory “NOB” (new open box) version of the Model 500 at $191.96 when available — worth checking before paying full retail, since it’s the same hardware with the same source.

Specifications

Spec	Value
Sound output	151.8 dB at 150 PSI (test distance not disclosed)
Operating pressure	140–160 PSI
Trumpets	3, tuned — 16” / 14” / 11”
Material	Chrome-plated high-impact ABS, aluminum bracket
Solenoid	Model 307 Vortex™ 4, 12V electric
Airline	12 ft of 1/4” OD tubing included
Overall dimensions	15.5” L × 11.5” W × 11.5” H
Minimum air tank	2.5 gallons (per Kleinn)
Power source	Onboard air system (not included)
Price	$239.95 direct; ~$247 at retailers
Warranty	1-year limited defect warranty

Note on the decibel number: Kleinn’s current product page states a “measured output of 151.8 dB” at 150 PSI, while older retailer listings (PartsHawk among them) carry a 151.7 dB max figure. Either way, no microphone distance is disclosed, so treat it as a manufacturer claim for comparing Kleinn models against each other — not against SAE-measured horns. Our guide on advertised vs real-world decibels explains why.

What’s in the box

• Sentinel triple trumpet assembly — chrome-plated ABS trumpets in 16”, 14”, and 11” lengths on a shared air block
• Heavy-duty triangular aluminum right-angle mounting bracket
• Model 307 Vortex™ 4 12V electric solenoid valve
• 12 ft of 1/4” OD airline (Kleinn Model 25014-1)
• Hardware kit — bolts and fasteners for horn and bracket

No compressor, no tank, no pressure switch, no horn button — those come from your onboard air system.

Pros

• Rated 151.8 dB with the test pressure (150 PSI) disclosed — more transparent than most budget-horn ratings
• Large 16”/14”/11” tuned trumpets produce a true three-note locomotive chord, per Kleinn’s spec sheet and audio samples
• Chrome ABS construction keeps weight and cost far below steel or brass triples of this size
• Reversible trumpets and a right-angle aluminum bracket allow rooftop or under-body mounting
• Includes the Vortex 4 solenoid and 12 ft of airline, so a horn-only install needs few extra parts
• Same horn family Kleinn ships in its HK6 complete kit — proven pairing with 150 PSI air systems

Cons

• Horn assembly only — a compressor/tank system (2.5-gal minimum per Kleinn) roughly doubles the real cost of getting on the road
• No test distance published for the dB rating, so it can’t be compared directly with SAE-measured horns
• 1-year warranty trails the lifetime Shocker-horn coverage HornBlasters offers original purchasers
• Needs 140–160 PSI to reach rated output — common 120 PSI air setups will leave sound on the table
• ABS bells give up some of the deeper resonance of the steel-trumpet 501 and metal-horn competitors, per Kleinn’s own series positioning
• No chord frequencies (Hz) or product weight published

Alternatives

• Kleinn HK6 Pro Blaster kit — the same triple-horn design bundled with a 150 PSI compressor, 1.5-gallon tank, and wiring for $619.95; the shortcut if you don’t have onboard air yet.
• Kleinn Demon 730 — step-up stainless triple for buyers who want metal trumpets and maximum corrosion resistance.
• Kleinn 230 — the compact triple for tighter engine bays where the full-size 500 won’t fit.

For a brand-level comparison against the other big name in this space, see Kleinn vs HornBlasters.

Install / compatibility notes

The Model 500 is a 12V, air-driven horn: you need an onboard air system delivering 140–160 PSI with at least a 2.5-gallon tank. Kleinn points buyers to its own Model 6350 (150 PSI) or 6450 (200 PSI) air packages, but any quality compressor/tank combo in that pressure class works — our air tank size guide and PSI guide cover the matching logic.

Air consumption is the other planning item. Three large trumpets fed at 150 PSI drain a small tank quickly: the 2.5-gallon minimum Kleinn specifies is genuinely a minimum, and a 5-gallon tank buys you noticeably longer blasts and more honks between compressor refills. The horn only sounds as good as the pressure behind it — at the bottom of the 140–160 PSI window, or on an undersized tank that sags mid-blast, the chord loses its bite. If your existing system runs a 110/145 PSI pressure switch, plan on upgrading the switch and verifying your tank and compressor are rated for the higher pressure before bolting these on.

At 15.5” × 11.5” × 11.5”, the assembly wants real estate: full-size truck frame rails, a bed-mount, or a roof/headache-rack install are the natural homes, and the reversible trumpets make roof mounting genuinely useful rather than a gimmick. The included 307 solenoid wires like any 12V accessory — switched trigger through a relay, fused battery feed — and feeds through the supplied 1/4” line. Wiring is standard; see wiring a train horn relay for diagrams. One planning note from Kleinn’s spec: because the solenoid and airline are 1/4”, upgrading later to 1/2” plumbing (as on the 502 Kraken) means replacing the valve, not just the tubing.

Sources

• Kleinn — Model 500 “Sentinel” Chrome-Plated ABS Triple Train Horns product page — all core specs: 151.8 dB at 150 PSI, 140–160 PSI operating range, trumpet lengths, materials, solenoid, dimensions, included items, $239.95 price, 1-year warranty, 2.5-gallon minimum tank, 500/501/502 series positioning
• Kleinn — Model 500 Triple Train Horn NOB (open-box) listing — factory open-box availability at $191.96
• Kleinn — Model HK6 Triple Train Horn Kit page — confirms the HK6 kit is built around the 500-style triple horns with a 150 PSI air system at $619.95
• Kleinn — Horn audio samples page — brand-published sound clips of the horn line
• PartsHawk — Kleinn 500 Air Horn Kit listing — current retail price ($247.15), in-stock status, 151.7 dB max output figure, Vortex 4 solenoid
• Amazon — Kleinn Air Horns 500 Triple Train Horn (Chrome) — retail availability cross-check
• Northridge4x4 — Kleinn Model 500 Triple Train Horn listing — retail availability cross-check
• YouTube — Kleinn Model 500 Triple Train Horn demo — third-party sound demonstration of the Model 500
• HornBlasters — Warranty Information — warranty terms used in the comparison (lifetime coverage on Shocker horns for the original purchaser)

Train Horn Hub aggregates publicly available data. We do not test products in-house. All trademarks belong to their respective owners.
