What Size Air Line for a Train Horn? 1/4 vs 3/8 vs 1/2

Pick the wrong air line for your train horn and you’ll choke a 150-decibel beast down to a polite honk. The tubing diameter controls how fast air can rush from the tank to the trumpets, and that split-second burst of flow is the whole show. Here’s how 1/4-inch, 3/8-inch, and 1/2-inch lines actually compare for a train horn, plus how to match your tubing and fittings so nothing gets bottlenecked.

Why air line size matters more than you’d think

A train horn doesn’t sip air the way a tire valve does. When you hit the button, the tank tries to shove a large volume of compressed air through the line and out the trumpets in a fraction of a second. The line is the straw, and the diameter of that straw decides how much air can move at once.

Run too narrow a line and you restrict that flow. The horn sounds thinner, takes longer to reach full volume, and never quite hits the deep, full note the trumpets are capable of. Go bigger and you free up the flow, so the horn comes on strong and full, but you also empty the tank faster on every blast.

One nuance most install guides skip: the line that matters most is the one between the tank and the horn, where that violent burst happens. The leader line feeding the tank from the compressor is far less critical, because filling a tank is a slow, continuous trickle, not a sudden dump.

OD vs ID: the labeling trap that trips everyone up

This is the single most important thing to understand before you buy, and it trips up almost everyone.

DOT nylon tubing — the stiff plastic stuff most kits ship with — is labeled by its outer diameter (OD). Rubber air hose is labeled by its inner diameter (ID). And it’s the inner diameter that actually flows air. The wall thickness is just packaging.

So a 1/2-inch OD DOT tube has roughly a 3/8-inch ID once you subtract the walls — meaning it flows about the same as a standard 3/8-inch ID rubber hose, not more. Likewise, the common 1/4-inch OD nylon tubing has only about a 1/8-inch inner bore with a 1/16-inch wall. If you compare a “3/8-inch” rubber hose to a “3/8-inch” DOT tube and assume they’re equal, you’re wrong: the rubber one moves noticeably more air. Always think in inner diameter when you care about sound.

1/4-inch line: when small is fine, and when it chokes

The 1/4-inch OD nylon tube has roughly a 1/8-inch inner bore. Vixen rates its 1/4-inch nylon hose to 225 PSI, which is plenty of pressure headroom — the issue isn’t burst strength, it’s flow.

• Compact single or small electric/air horns that don’t move much air
• The leader line from the compressor to the tank (slow fill, so the small bore is fine)

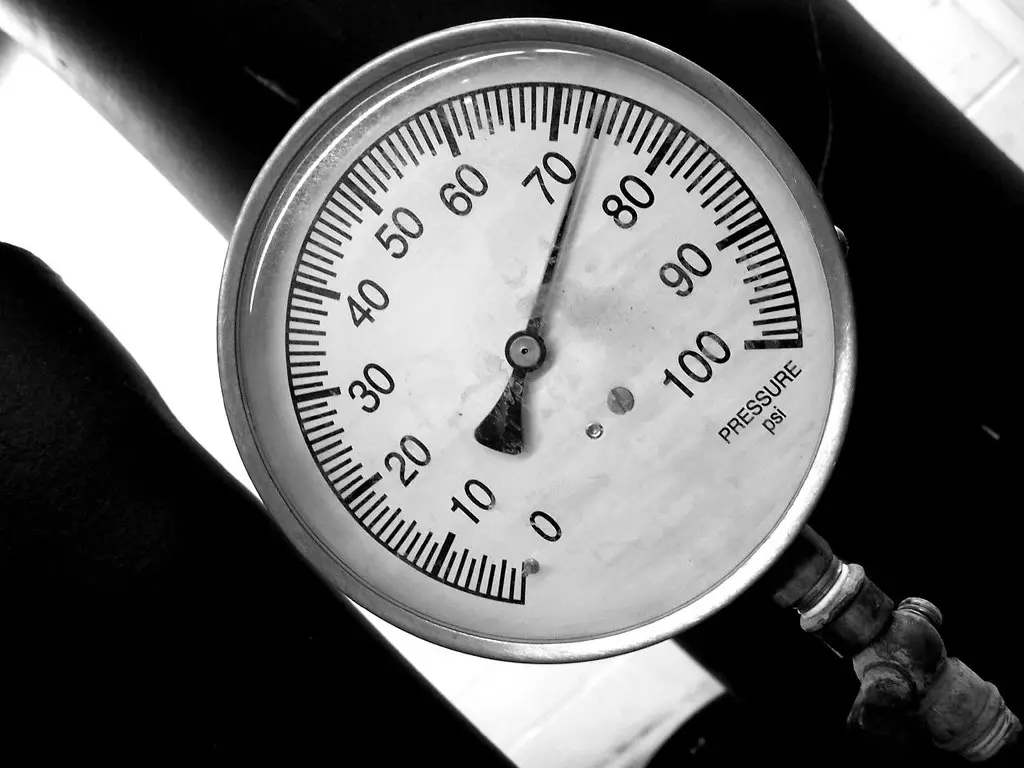

• Sense lines feeding a pressure gauge or pressure switch

Where 1/4-inch falls apart is on a full dual, triple, or quad train horn. That 1/8-inch bore simply can’t pass enough air to feed big trumpets, so it strangles the blast. There’s also even smaller 1/8-inch DOT line on the market (HornBlasters sells a roll), but that’s really only for short gauge and switch runs — never for the horn feed itself.

3/8-inch line: the aftermarket standard

If you do nothing else, run 3/8-inch and you’ll be fine. The vast majority of aftermarket train horn kits are plumbed and ported for 3/8-inch line, and the manufacturers tune their valve and trumpet sizing around it.

HornBlasters’ 3/8-inch DOT reinforced air line gives you a sense of what good tubing looks like: dual-layered heavy-duty nylon built to the SAE J844 Type A standard, with a minimum burst pressure of 1,400 PSI. That’s an enormous safety margin over the 150 PSI or so a typical horn system runs.

• Enough flow for the dual and triple horns most people actually buy
• Manageable tank drain, so blasts stay strong
• The widest selection of cheap, off-the-shelf fittings

For a deeper look at the pressure side of the equation, our train horn PSI explainer walks through what pressure your tank actually needs to feed that 3/8-inch line.

1/2-inch line: the upgrade for big horns

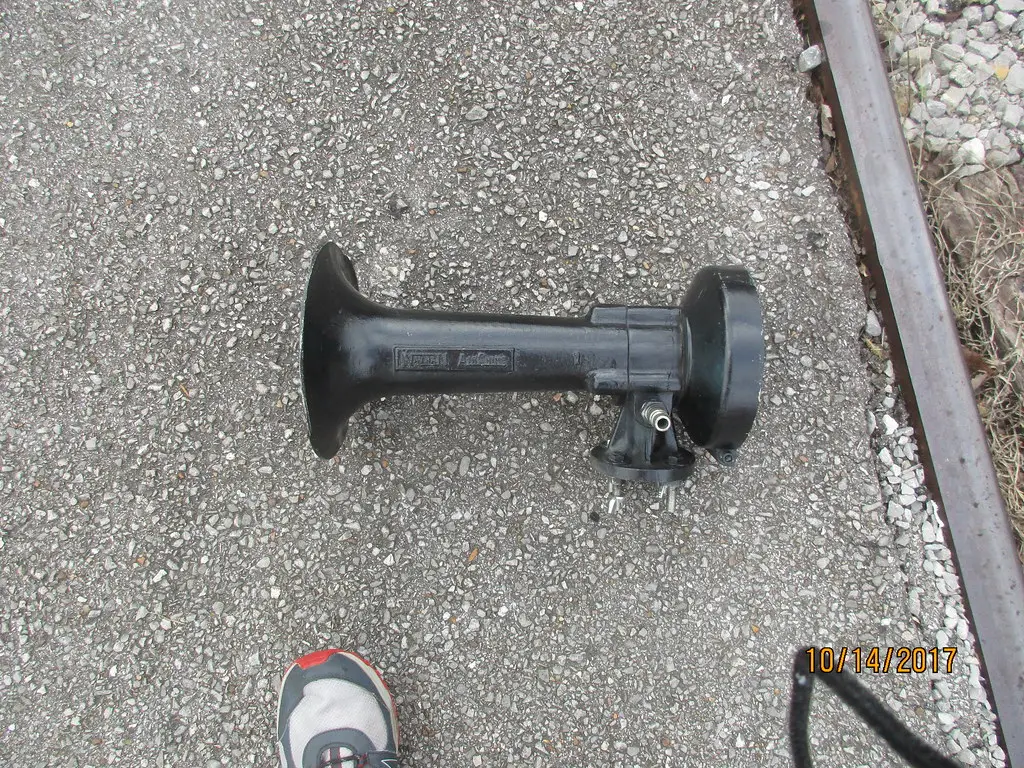

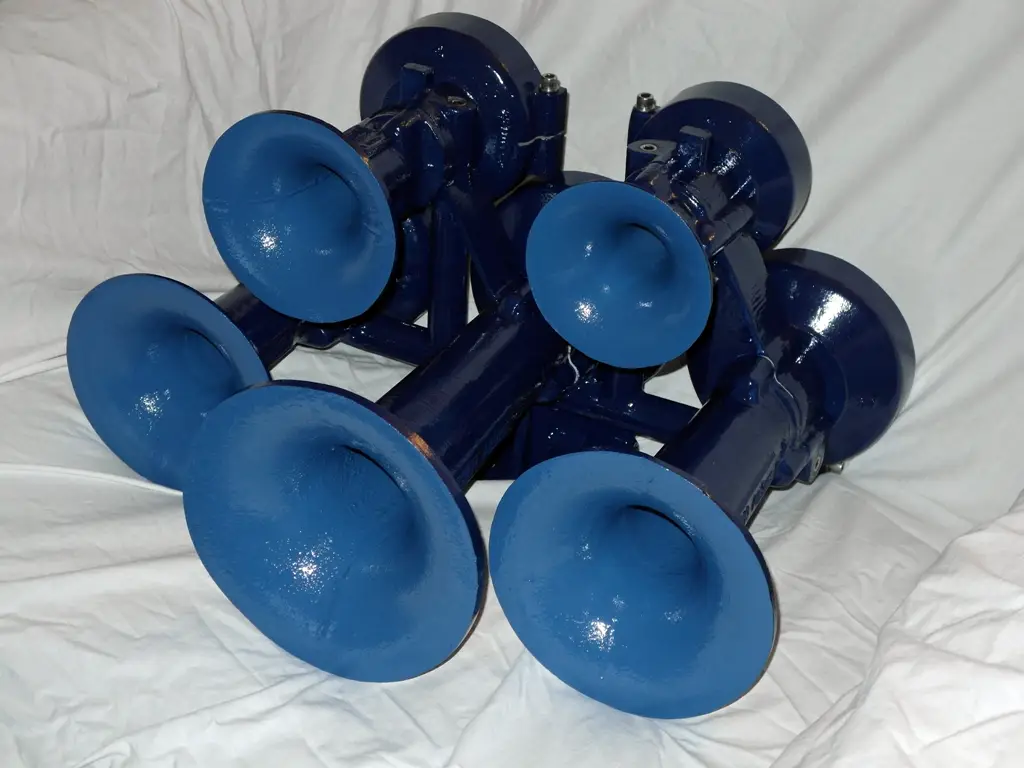

Once you step up to large trumpets — think Nathan AirChime K5LA-style horns or oversized triples and quads — a bigger line starts to pay off. Builders chasing every last decibel move to 1/2-inch OD DOT tube (about 3/8-inch ID) or true 1/2-inch ID rubber hose.

The upside is real: more flow means a louder, deeper, fuller note, and the horn reaches full volume faster on the initial hit. The forum consensus from people who’ve A/B tested it is that the same horn simply sounds better fed by a fatter line.

But there’s a catch, and it’s a big one:

• A bigger line purges the tank much faster, so you get shorter blasts before the pressure sags
• Recharge time goes up, since there’s more line volume to refill
• Every honk burns more air

The rule of thumb: if you upsize the line, upsize the tank to match, or you’ll run dry mid-blast. A 1/2-inch line on a tiny tank is a downgrade, not an upgrade. Only go this route on a large horn backed by a real tank and a compressor that can keep up.

Fittings: NPT, PTC, compression, and the barb bottleneck

Tubing is only half the plumbing. Your horn, valve, and tank ports are almost always NPT threads — commonly 1/4-inch or 3/8-inch NPT — and you adapt that threaded port to your chosen line with a fitting. HornBlasters alone stocks fittings spanning 1/8-inch all the way to 3/4-inch.

There are three common ways to make the connection:

• Push-to-connect (PTC): shove the tube in and an internal collet grips it — tool-free, fast, and available in DOT-rated versions. The most popular choice for nylon line.
• Compression: a brass ferrule clamps the tube for a very secure seal. Vixen’s brass 1/4-inch NPT compression fitting for 3/8-inch tube is rated to 350 PSI.
• Barb and clamp: the classic way to attach rubber hose.

Here’s the trap that wastes a lot of money: a fitting’s internal bore can be narrower than your line. Run a fat 1/2-inch line into a barb or fitting that necks down to 3/8-inch inside and you’ve just thrown away the flow you paid for — the bottleneck is now the fitting, not the tube. Match the fitting’s internal diameter to your line all the way through the system, or the weakest link sets your performance.

How to choose: a quick decision guide

Your setup	Line to run
Compact single or small electric horn	1/4-inch OD is fine
Standard dual or triple aftermarket kit	3/8-inch OD (the safe default)
Large triple/quad or Nathan-style horn + big tank	1/2-inch OD or true 3/8-inch+ ID
Compressor-to-tank leader line	1/4-inch OD (slow fill, no penalty)
Pressure switch or gauge sense line	1/8-inch to 1/4-inch

• Think in inner diameter, not the OD printed on DOT tube
• Match your line to the horn the kit was designed for before chasing bigger
• If you upsize the line, upsize the tank too
• Don’t let a skinny fitting bore undo a fat line

When you’re ready to actually route and secure the line, our step-by-step train horn install guide covers running the tubing cleanly, and the where-to-mount guide helps you plan the shortest, kink-free path from tank to trumpets.

Sources

• HornBlasters 3/8” D.O.T. Reinforced Air Line — SAE J844 Type A spec and 1,400 PSI minimum burst pressure
• HornBlasters Brass NPT Fittings & Fitting Kits — line sizes from 1/8” to 3/4” and PTC vs threaded fitting types
• HornBlasters 1/4” Male NPT to 3/8” PTC Fitting — example of the common 1/4” NPT port to 3/8” line adapter
• HornBlasters 1/8” D.O.T. Air Line — existence of 1/8” line for small/sense runs
• Vixen Horns 1/4” OD Nylon Hose (Amazon) — 1/4” OD tubing rated up to 225 PSI
• Vixen Horns 1/4” NPT Compression Fitting for 3/8” tube (Amazon) — brass compression fitting rated to 350 PSI
• Train Horn Forums: 3/8 line vs 1/2 line — sound difference, faster tank purge, and slower charge with larger line
• Train Horn Forums: air line size — OD vs ID labeling, upgrading large horns to 1/2” tubing
