- +Low price: $44.49 direct from Wolo, and seen lower at retail
- +No tank, valve or pressure switch to plumb, just one small compressor and two trumpets
- +Compact 2-1/4 x 4-1/2 in. compressor fits tight engine bays
- +Wolo publishes current draw (16 A), compressor pressure (10-12 psi) and both frequencies
- +30 A relay included, with clear wiring diagrams for factory and new-switch installs
- +Replacement compressor, relay and hardware sold separately, plus a 24 V version (403-24)
- −120 dB rating has no stated test distance
- −High 780/840 Hz pitch: a sharp two-note blast, not a deep train horn chord
- −Chrome-plated plastic trumpets, not metal
- −Only a 3-month warranty, a $10 return-shipping fee, and water damage excluded
- −Compressor needs oiling every 6 months, per Wolo's instructions
- −No named owner reviews or forum reports we could verify
Methodology
This review aggregates publicly available information from manufacturer specifications, retailer listings, and verified user reviews. We do not perform hands-on testing. Last reviewed: 09/24/2026. Every core specification below comes from Wolo Manufacturing’s current Model 403 Air Max Chrome product page and the official installation sheet Wolo links from that page, which also contains the warranty terms. We cross-checked price and physical measurements against a US hardware retailer listing, and we compared the 403 with Wolo’s own 403-24, 417, 419 and 837 product pages. We could not find a public forum thread or buyer-review set that clearly names the 403, so this review includes no owner impressions, and we say so rather than fill the gap. Every external source appears in the Sources section at the end.
Quick verdict

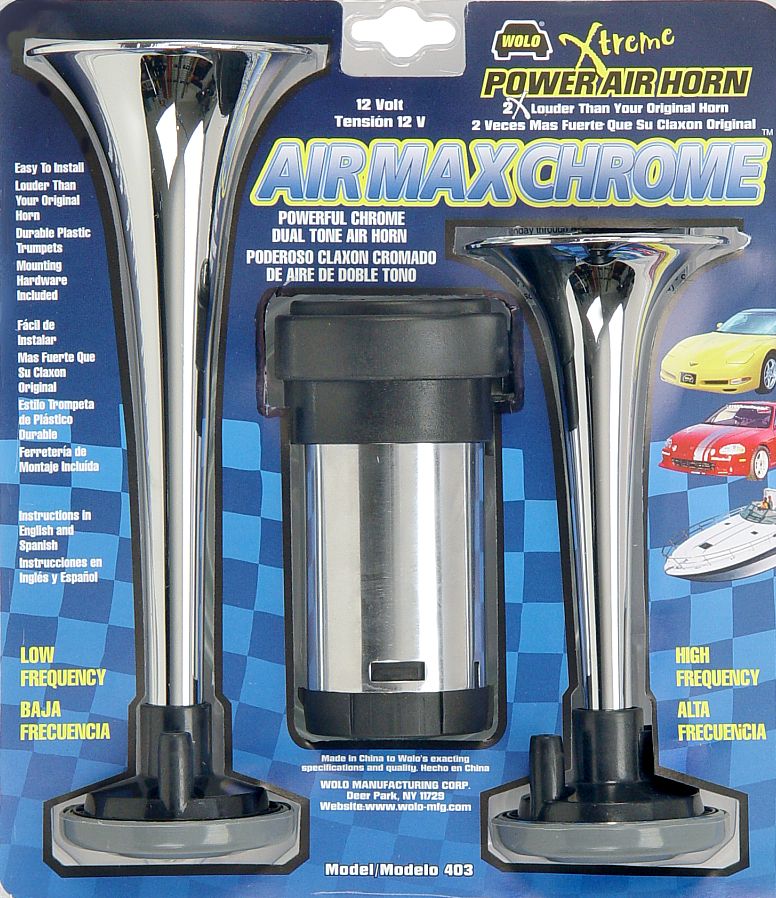

The Wolo 403 Air Max Chrome is a small, cheap, dual-trumpet electric air horn kit: a 12 V compressor pushes air through two chrome-plated plastic trumpets. It is not a train horn in the locomotive sense. Its 780/840 Hz pair sits in what Wolo itself calls the “High Range”, so expect a sharp, European-style two-note blast rather than a deep chord. The spec sheet is short but honest about current draw, compressor pressure and size. The weak points are a 120 dB rating with no test distance, plastic trumpets and a three-month warranty. Our editorial rating is 3.2/5: a sensible $40-range upgrade over a factory horn, not a substitute for a real onboard-air train horn.
What it is
The Model 403 belongs to Wolo’s Air Max family of compressor-driven air horns. There is no air tank, no solenoid valve and no pressure switch. When you press the horn button, a small electric compressor spins up and blows air through the trumpets for as long as the button is held. This “tankless” format is covered in our guide to tankless train horns.
Per Wolo’s product page, the kit pairs two durable plastic trumpets with a bright chrome-plated finish and what Wolo calls its “new heavy-duty compact chrome compressor”. The compressor is rated at 10-12 psi and measures 2-1/4 in. in diameter by 4-1/2 in. high, and the longest trumpet is 8-1/2 in. long. Wolo describes the 403 as “the perfect choice for any 12-volt vehicle”, and the installation sheet covers both factory-horn-button and new-switch wiring.
The 403 suits drivers who want a noticeably louder, more attention-getting horn than stock on a car, pickup, RV or motorcycle, for a low price and with a single small compressor to mount. It does not suit buyers chasing a deep, multi-chime locomotive sound.
A 24-volt version, the Model 403-24, is sold separately for 24 V trucks and equipment. Wolo lists it with the same 120 dB, 780/840 Hz, compressor and trumpet specs but an 11 A current draw, at $64.49, and showed it as out of stock when we checked.
Specifications
| Spec | Value |
|---|---|
| Model | Wolo 403 Air Max Chrome (12 V); 403-24 is the 24 V version |
| Sound output | 120 dB (test distance not disclosed) |
| Tone | Dual tone, 780 / 840 Hz, “High Range” per Wolo |
| Trumpets | 2, plastic with chrome plating |
| Longest trumpet | 8-1/2 in. |
| Short trumpet (retailer figure) | 6 in. long x 2.5 in. diameter |
| Compressor | Compact chrome compressor, 10-12 psi |
| Compressor size | 2-1/4 in. diameter x 4-1/2 in. high |
| Voltage | 12 V |
| Current draw | 16 A (403-24: 11 A at 24 V) |
| Relay | 30 A relay included |
| Suggested fuse | 20 A (not included) |
| Air storage | None: compressor-driven, no tank |
| Listed weight | 2 lb (Wolo); 1.75 lb (retailer) |
| Listed dimensions | 9 x 4 x 10 in. (Wolo “Additional information”, likely packaged size) |
| Instructions | English, Spanish, French PDFs |
| Warranty | 3 months, original purchaser |
| Price | $44.49 direct from Wolo; $37.58 seen at a US retailer |
Two small data notes. First, a US retailer listing describes the frequency as “middle range” and gives the compressor as 2.5 in. in diameter; we use Wolo’s own “High Range” label and 2-1/4 in. figure. Second, Wolo’s 9 x 4 x 10 in. dimension is far larger than the parts themselves, so in our reading it describes the box, not the installed kit.
What’s in the box
Per Wolo’s product page and installation sheet, the kit contains:
- Two chrome-plated plastic trumpets (longest 8-1/2 in.)
- One compact chrome 12 V compressor
- 30 A relay for new-horn-button installs
- Plastic air tubing and a “Y” connector to feed both trumpets
- Mounting hardware for the trumpets, compressor and hose
- Installation instructions in English and Spanish (a French PDF is also on Wolo’s site)
Not included: a fuse and fuse holder, extra wire, and a horn button. Wolo also sells replacement 12 V compressors, relays, mounting hardware and sound chamber covers for the 403 as separate parts, which is useful given the short warranty.
Pros
- Low price: $44.49 direct from Wolo, and seen lower at retail
- No tank, valve or pressure switch to plumb, just one small compressor and two trumpets
- Compressor is only 2-1/4 in. wide and 4-1/2 in. tall, so it fits tight engine bays
- Wolo publishes current draw (16 A), compressor pressure (10-12 psi) and both frequencies
- 30 A relay included, with clear wiring diagrams for one-wire, two-wire and new-switch setups
- Replacement compressor, relay and hardware sold separately, plus a 24 V version (403-24)
Cons
- 120 dB rating has no stated test distance, so it can’t be compared fairly
- High 780/840 Hz pitch: sharp two-note blast, not a deep train horn chord
- Plastic trumpets with chrome plating, not metal
- Only a 3-month warranty, a $10 return-shipping fee, and water damage excluded
- Compressor needs a few drops of oil every 6 months, per Wolo’s instructions
- No named owner reviews or forum reports we could verify
Alternatives
If the 403 isn’t quite right, these are the closest options we’ve already reviewed:
- Wolo 417 Long Horns: same compressor-plus-two-trumpets format and the same 120 dB claim, but a much lower 410/440 Hz pair Wolo markets as a “big rig truck sound”, with longer red trumpets. It’s $52.99 direct from Wolo. Pick it if you want a deeper note and have room for longer trumpets.
- Wolo 419 Bad Boy: a one-piece, hoseless 12 V horn rated at 123.5 dB with a 530/680 Hz dual tone, $52.99 from Wolo. There’s no separate hose to route, so the install is simpler.
- Wolo 837 Cannon Ball Express: a step into real train horn territory, with three metal trumpets and a 307/347/440 Hz chord. It’s a horn-only kit that needs a separate compressor and tank, and it costs several times more.
For more of the lineup, see our Wolo brand hub.
Install / compatibility notes
Wolo’s installation sheet is the one to follow, and it is short. The main points:
- Mount the compressor vertically, with the air outlet on top, somewhere dry in the engine compartment away from engine and exhaust-manifold heat. It fixes with one bolt through a 3/16 in. hole.
- Mount the trumpets with the open ends facing down, each on a 1/4 in. hole. Wolo stresses this keeps water out of the trumpets and compressor, and states that water damage isn’t covered by the warranty.
- Run the tubing from the compressor to both trumpets through the supplied “Y” connector, avoiding kinks and sharp bends that restrict airflow and change the sound.
- Wire it to the factory horn circuit or a new switch. On a factory horn circuit, Wolo says the included relay isn’t required because the vehicle already has one: move the two horn wires to the compressor terminals, or the single wire to the positive terminal, and ground the negative terminal with 16-gauge wire. If the motor runs but the horn doesn’t sound, reverse the wires.
- For a new horn button, use the supplied relay: terminal 87 to the compressor positive, 85 to the horn switch, and 30/86 to fused 12 V positive with 16-gauge or heavier wire. Wolo suggests a 20 A fuse.
- Maintain it: every 6 months, with the compressor off, remove the tube, add a few drops of light SAE-10 oil to the opening, then run the compressor briefly.
Electrical load. The compressor draws 16 A. Before you move the stock wiring straight onto the compressor, our editorial advice is to confirm the factory horn circuit’s fuse and relay rating. If in doubt, use the included 30 A relay with a fused feed, as covered in our horn relay wiring guide.
Motorcycles. Wolo lists the 403 in its motorcycle horn category as well as its air horn category. The compressor is compact, but the 16 A draw is a lot for a small motorcycle charging system. Check our motorcycle train horn guide before committing.
24-volt vehicles. Don’t run the 12 V 403 on a 24 V system. Buy the 403-24, which Wolo rates at 11 A.
Legality. Aftermarket horns are regulated differently state by state. See are train horns legal on cars? before mounting any air horn on a road vehicle.
Sources
- Wolo — Model 403 Air Max Chrome 12-Volt 120 Decibels 780/840 Hz product page: all core specs (120 dB, 780/840 Hz “High Range”, 12 V, 16 A, 30 A relay, 10-12 psi compressor, 2-1/4 x 4-1/2 in. compressor, 8-1/2 in. longest trumpet, chrome-plated plastic trumpets), 2 lb and 9 x 4 x 10 in. listing, kit contents, replacement parts, $44.49 price, stock status, installation PDF links, product photo
- Wolo — Installation instructions for Models 400, 402, 403 and related (PDF): compressor and trumpet mounting, hole sizes, “Y” connector, wiring for one-wire, two-wire and new-switch setups, 16-gauge wire and 20 A fuse, 6-month oiling, 3-month warranty, water-damage exclusion and $10 return-shipping terms
- Wolo — Model 403-24 Air Max Chrome 24-Volt product page: 24 V sibling specs (11 A, 120 dB, 780/840 Hz), $64.49 price, out-of-stock status
- Wolo — Model 417 Long Horns product page: 417 comparison (120 dB, 410/440 Hz, red trumpets, 9-1/4 in. longest trumpet, “big rig truck sound”, $52.99)
- Wolo — Model 419 Bad Boy product page: 419 comparison (one-piece hoseless design, 123.5 dB, 530/680 Hz, $52.99)
- Wolo — Model 837 Cannon Ball Express product page: 837 comparison (three all-metal chrome-plated trumpets, 307/347/440 Hz, requires a separate on-board air system, $259.99 horn-only price)
- Dyers — Wolo Max Air Chrome Power Air Horn (403 Air Max): retail price cross-check ($37.58), 6 in. short trumpet, 8.5 in. long trumpet, 2.5 in. compressor diameter, 1.75 lb weight, “middle range” wording, no customer reviews posted
Train Horn Hub aggregates publicly available data. We do not test products in-house. All trademarks belong to their respective owners.
The Wolo 403 Air Max Chrome is a good pick for drivers who want a sharper, louder dual-tone horn than stock for about $40, with just one small compressor to mount. Buyers who want a deep, multi-chime train horn sound should look at an onboard-air kit instead.
Frequently asked questions
Quick answers to the questions people ask most about this topic.
- How loud is the Wolo 403 Air Max Chrome?
- Wolo rates the 403 at 120 dB but doesn't say at what distance it was measured, so the figure can't be compared directly with horns rated at a stated distance. Its 780/840 Hz tones sit in what Wolo calls the high range, which gives it a sharp, piercing character.
- Does the Wolo 403 need an air tank?
- No. It's a compressor-driven kit. A small 12 V compressor rated at 10-12 psi blows air through the two trumpets for as long as the horn button is held, so there's no tank, valve or pressure switch to install.
- Do I need to use the included relay?
- Not if you connect it to the factory horn circuit. Wolo's instructions say the vehicle's existing horn relay does the job. For a new horn button, use the included 30 A relay with 16-gauge or heavier wire and a 20 A fuse, since the compressor draws 16 A.
- What is the difference between the Wolo 403 and 403-24?
- The 403 is the 12-volt version and draws 16 A. The 403-24 is for 24-volt vehicles and draws 11 A. Wolo lists both at 120 dB with the same 780/840 Hz trumpets and compressor size. The 403 is $44.49 and the 403-24 is $64.49 on Wolo's site.
- What warranty does the Wolo 403 have?
- Wolo's installation sheet gives the original purchaser three months of coverage against defects in materials and workmanship. Claims need proof of purchase and a $10 check or money order for return shipping, and water damage from mounting the trumpets open-end-up isn't covered.
