- +One-piece hoseless design with built-in compressor — no tank, air lines or valve to plumb
- +Deep 320 Hz low tone, well below typical factory horn pitch
- +Compact 5-3/4 x 3-1/2 x 4-5/8 in. body fits motorcycles and tight engine bays
- +30-amp relay included to protect factory wiring from the 17 A draw
- +Single-bolt mount with clear official wiring instructions, including motorcycle setups
- +Affordable at $69.99 direct from Wolo and listed by US parts retailers
- −Wolo does not disclose the test distance behind the 123.5 dB rating
- −Inconsistent loudness marketing: "2X louder" on the website, "3X louder" on the package
- −Only a 3-month warranty, with a $10 return-shipping fee on claims
- −Single tone — no multi-chime train horn chord
- −17 A draw requires a relay and a fused feed; fuse and wire not included
- −No operating PSI or duty-cycle figure published for the sealed compressor
Methodology
This review aggregates publicly available information from manufacturer specifications, retailer listings, and verified user reviews. We do not perform hands-on testing. Last reviewed 09/22/2026. For the Wolo 619 Big Bad Max we took every core specification from Wolo Manufacturing’s current product page and the official Model 619 installation sheet, which also contains the warranty terms. We checked retail availability and price against AutoZone, Summit Racing and Amazon listings, and we read owner install threads on motorcycle and car forums for real-world feedback. Every numeric figure below traces back to a source listed at the end of this article. User impressions are labeled as user reports, not fact.
Quick verdict

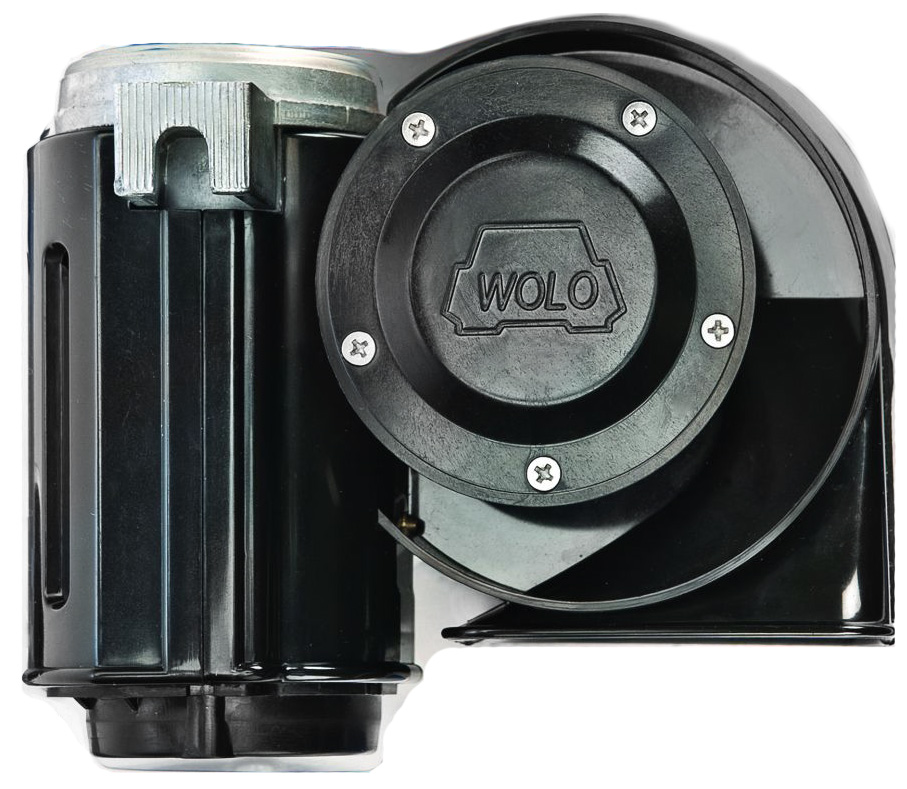

The Wolo 619 Big Bad Max is a one-piece 12-volt air horn with the compressor built into the horn body. Wolo rates it at 123.5 dB with a single low 320 Hz tone, so it’s a deep big-rig note in a housing about the size of a coffee mug. It’s not a multi-chime train horn. We rate it 3.5/5. Install is simple, the hoseless design means no air system to maintain, and 320 Hz is noticeably deeper than a typical factory horn. On the other side, Wolo doesn’t disclose the dB test distance, the warranty is only three months, and its own marketing claims 2X louder than stock on the website but 3X on the package. In our editorial view it’s a good factory-horn upgrade for cars, trucks, motorcycles and boats, but it isn’t a substitute for a real train horn kit.
What it is
The Big Bad Max is Wolo’s low-tone version of its compact hoseless air horn. Wolo’s product page says the 619 “uses the same proven patented technology and design as Wolo’s original Bad Boy” but adds a sound chamber built for a “deep big rig sound.” In practice that means a small electric compressor and a single horn scroll molded into one unit. When the horn circuit closes, the compressor spins up and pushes air straight through the horn diaphragm. There’s no tank, no air line and no separate solenoid valve.
Wolo pitches the 619 as “the perfect choice for all 12-volt vehicles: cars, trucks, motorcycles, boats etc.” The housing is ABS plastic with what Wolo calls a black stealth finish, and the unit carries a list of US, EU, Chinese and Taiwanese patents on the product page. Its closest sibling is the Wolo Bad Boy 419. The two share the same 123.5 dB rating and basic design. The 419 plays a dual-tone 530/680 Hz note, while the 619 drops to a single 320 Hz low tone in a slightly larger body.
Keep the category straight. A “train horn” on this site usually means a 3-to-5 trumpet chord horn fed by a compressor and tank at 100+ PSI. The Big Bad Max is a compact electric air horn, a much louder and deeper replacement for the stock horn, not a locomotive-style chord. Our loudest train horn guide covers the full-kit category if that’s what you’re after.
Specifications
| Spec | Value |
|---|---|
| Model | 619 Big Bad Max |
| Sound output | 123.5 dB (test distance not disclosed) |
| Frequency | 320 Hz, single low-range tone |
| Horn count | 1 (one-piece horn + compressor) |
| Voltage | 12 V DC |
| Current draw | 17 A |
| Relay | 30 A relay included |
| Recommended fuse | 20 A (not included) |
| Recommended wire | 16 gauge or heavier (18 gauge for switch leg) |
| Operating PSI | Not disclosed (sealed integrated compressor) |
| Housing material | ABS plastic, black finish |
| Unit dimensions | 5-3/4 in L x 3-1/2 in W x 4-5/8 in H |
| Listed shipping weight | 2 lb |
| Listed shipping dimensions | 7.25 x 4.25 x 11 in |
| Mounting | Single bolt, 5/16 in hole |
| Power source | Electric (built-in compressor) |
| Manufacturer price | $69.99 |
| Warranty | 3 months from purchase, original purchaser |
The 2 lb and 7.25 x 4.25 x 11 in figures are listed under Wolo’s “Additional information” tab and look like packaged dimensions, since they’re much larger than the 5-3/4 x 3-1/2 x 4-5/8 in unit size Wolo gives under Specifications. Wolo doesn’t publish a bare-unit weight.
- Rated output
- 123.5 dB (distance not disclosed)
- Tone
- 320 Hz low
- Draw
- 17 A at 12 V
- Price
- $69.99 (Wolo direct)
What’s in the box
Wolo’s product description gives slightly different kit lists in two places, so we’ve combined them:
- Big Bad Max one-piece horn with integrated compressor
- Heavy-duty 30-amp relay
- Mounting bolt and hardware (lock washer and nut, per the install sheet)
- Window decal
- Installation instructions in English and Spanish
Not included: the 20-amp fuse, wire, and a horn button if you’re not reusing the factory switch. The install sheet marks the fuse and horn button as not included, and neither kit list includes wire.
Pros
- No tank, hoses or separate compressor. Wolo’s patented one-piece design takes one bolt and the factory horn wires.
- Its 320 Hz low tone is clearly deeper than common factory horns. One forum installer contrasted it with a stock 405 Hz low-tone horn.
- Compact 5-3/4 x 3-1/2 x 4-5/8 in body fits motorcycles, compact cars and tight engine bays.
- 30-amp relay is included, which protects factory horn wiring from the 17 A draw.
- Wolo publishes clear wiring instructions for two-wire, one-wire, new-button and motorcycle setups.
- Affordable at $69.99 direct from Wolo, and listed by US parts retailers.
Cons
- Wolo doesn’t disclose the test distance for 123.5 dB, so the number can’t be compared directly with other horns.

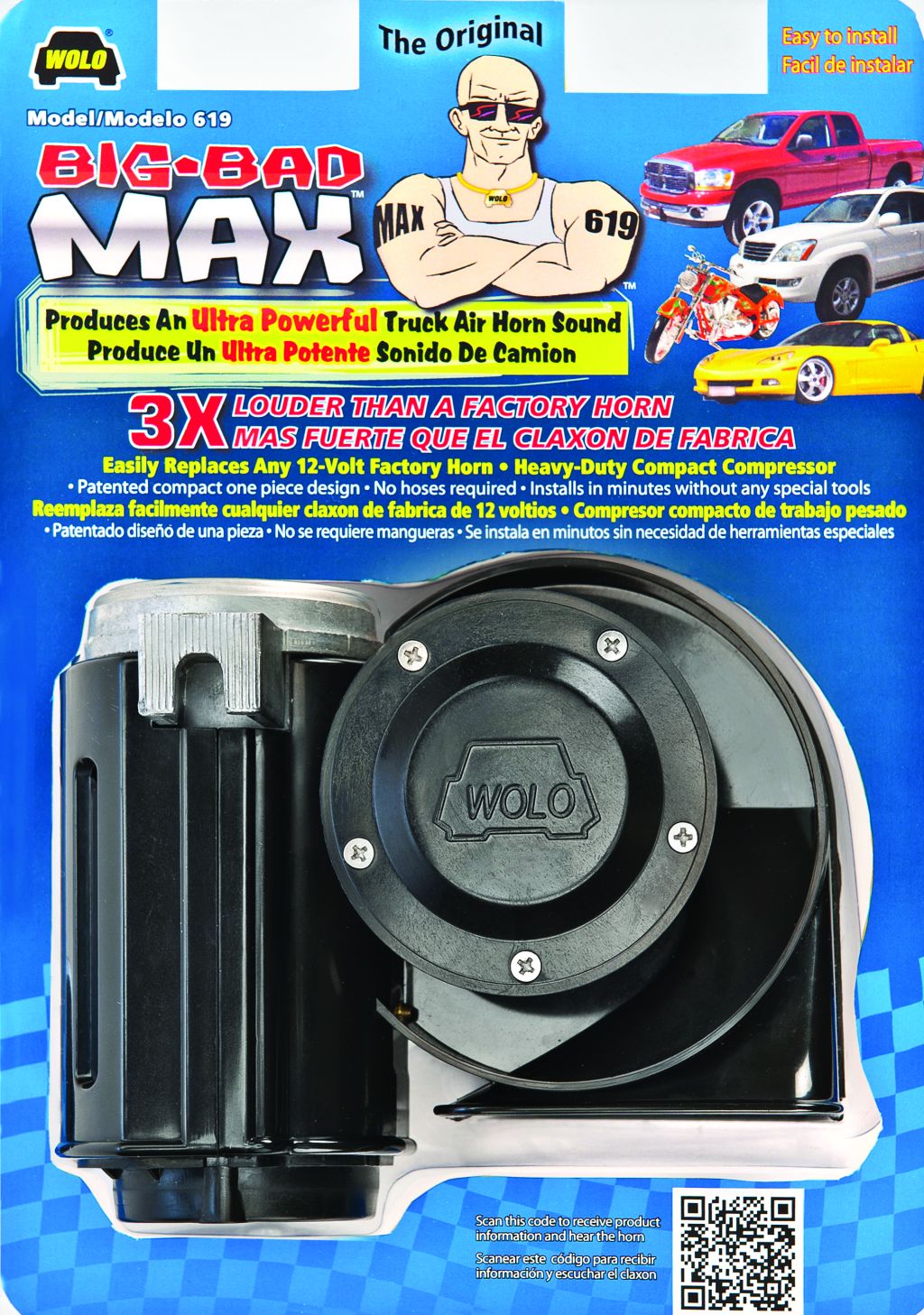

- Wolo’s loudness claim is inconsistent: “2X louder” on the website and “3X louder” on the retail package.
- Only a 3-month warranty, and returns need a $10 check or money order for return shipping.
- Single tone. It can’t reproduce a multi-chime train horn chord.
- The 17 A draw needs a relay and a fused feed. It’s not a plug-and-play swap on most motorcycles.
- Wolo publishes no operating PSI or long-term duty-cycle figure for the sealed compressor.
What owners report
Owner feedback is the most useful context for a horn with no test distance on its dB rating, so here is a summary. These are individual user reports, not measurements.
A SpyderLovers forum member who fitted the 619 to a 2010 Can-Am Spyder RS SE5 wrote that it “sounds like a freakin’ freight train.” They had also installed one on a Honda Shadow back in 2014. They mounted it to a steel bracket in the front trunk, secured the nut with Loctite, and replaced the inline glass fuse holder with a waterproof mini-blade fuse holder at the battery. They said they paid about $36 on Amazon at the time, which is far below Wolo’s current $69.99 list price, so street prices clearly vary.
A Kappa Performance forum poster installed the 619 on a car to replace a single 405 Hz AC Delco low-tone horn and valued the lower 320 Hz “truck” note. Their no-solder install used a dedicated 20 A fuse and a 30 A relay, and they pointed out that pulling the fuse disables the horn. We found no reliability complaints in either thread.
Alternatives
- Wolo Bad Boy 419: the same one-piece design and 123.5 dB rating, but a brighter dual-tone 530/680 Hz sound in a smaller 5-1/8 x 3 x 4-1/2 in body. It’s $52.99 direct from Wolo and draws 16 A. Choose it if you want a sharper European-style note over the 619’s low growl.
- Wolo 417 Long Horns: a dual-trumpet horn kit with its own compressor, rated at 120 dB with a 410/440 Hz tone. It looks more like a truck horn but has a lower rating on paper.
- Wolo 845 Road Warrior DD: a chrome roof-mount horn with a separate compressor, rated 125 dB at 275 Hz. Pick it if you want a deeper note and the big-rig look on a pickup or RV, and you’re fine with a larger install and higher price.
If you want a real multi-trumpet chord, look at an air-tank train horn kit instead. Our air vs. battery guide explains the trade-offs.
Install / compatibility notes
The Big Bad Max is one of the easiest horns to install, but a few details in Wolo’s installation sheet matter:
- Location. Mount the horn vertically where possible, in a dry spot away from exhaust heat and moving parts. Drill a single 5/16 in hole and use either of the two bracket orientations Wolo shows.
- Two-wire factory horn. Move both factory horn wires to the 619’s motor terminals. If the compressor runs but the horn doesn’t sound, reverse the wires.
- One-wire factory horn. Move the wire to the (+) motor terminal and ground the (-) terminal to clean, bare metal using 16-gauge or heavier wire.
- New horn button. Use the supplied relay. Terminal 87 goes to the horn (+), 85 to the switch, and 30/86 to fused 12 V through a 20 A fuse (not included).
- Motorcycles. Wolo says the relay is required here, because most motorcycle horn circuits have no relay and the factory switch isn’t rated for the 619’s draw. The factory horn wires go to relay terminals 85 and 86, and the horn gets its own fused feed from the battery.
Compatibility is 12 V only. We found no 24 V version of the 619 on Wolo’s site. At 17 A, a healthy car or truck charging system has plenty of headroom, but small motorcycles with low-output stators should be checked first. Our relay wiring guide and motorcycle horn guide go into more detail. Before you install any aftermarket horn, check your state’s rules in our train horn legality guide.
If you use a horn in the 123 dB range close to people, be careful. Our hearing damage guide explains why exposure distance matters. For how to read unqualified dB ratings like this one, see advertised vs. real dB.
Sources
- Wolo — Model 619 Big Bad Max 12-Volt 123.5 Decibels 320 Hz product page: all core specs (123.5 dB, 320 Hz, 12 V, 17 A, 30 A relay, unit and shipping dimensions, 2 lb shipping weight), ABS housing, kit contents, “2X louder” claim, patents, $69.99 price, stock status, product photos
- Wolo — Model 619 Big Bad Max installation instructions (PDF): mounting procedure, 5/16 in hole, wiring for two-wire, one-wire, relay and motorcycle setups, 20 A fuse and wire gauge specs, 3-month warranty and $10 return-shipping terms
- Wolo — Model 419 Bad Boy product page: 419 comparison specs (123.5 dB, 530/680 Hz, 16 A, 5-1/8 x 3 x 4-1/2 in, $52.99)
- Wolo — Model 417 Long Horns product page: 417 comparison specs (120 dB, 410/440 Hz)
- Wolo — Model 845 Road Warrior DD product page: 845 comparison specs (125 dB, 275 Hz)
- AutoZone — Wolo 12 Volt Big Bad Max Horn listing: US auto-parts retail listing at $69.99
- Summit Racing — Wolo 619 Big Bad Max listing and reviews: US performance-parts retail listing of part WLO-619
- Amazon — Wolo 619 Big Bad Max Air Horn: retail listing confirming 123.5 dB, 320 Hz, one-piece hoseless design
- SpyderLovers — Wolo installed! Big Bad Max 619: owner install on a Can-Am Spyder, mounting and fuse details, “freight train” impression, earlier 2014 install on a Honda Shadow, ~$36 Amazon purchase price
- Kappa Performance forum — Wolo 619 “Big Bad Max” Air Horn: owner install replacing a 405 Hz factory horn, no-solder relay and 20 A fuse wiring
Train Horn Hub aggregates publicly available data. We do not test products in-house. All trademarks belong to their respective owners.
The Wolo 619 Big Bad Max is a smart pick for car, truck, motorcycle or boat owners who want a deep 320 Hz big-rig note from a one-bolt, hoseless install — not for anyone expecting a true multi-trumpet train horn or a long warranty.
Frequently asked questions
Quick answers to the questions people ask most about this topic.
- How loud is the Wolo 619 Big Bad Max?
- Wolo rates the Big Bad Max at 123.5 dB with a 320 Hz low tone, but it does not disclose the distance the measurement was taken at, so the figure cannot be compared directly with horns rated at a stated distance. Wolo's website calls it two times louder than a factory horn, while the retail package says three times.
- What is the difference between the Wolo 619 and the Wolo 419 Bad Boy?
- Both are one-piece hoseless 12-volt air horns rated at 123.5 dB. The 619 Big Bad Max produces a single deep 320 Hz tone, draws 17 A and measures 5-3/4 x 3-1/2 x 4-5/8 in., while the 419 Bad Boy is a dual-tone 530/680 Hz horn that draws 16 A in a smaller 5-1/8 x 3 x 4-1/2 in. body. Wolo lists the 619 at $69.99 and the 419 at $52.99.
- Do I need a relay for the Wolo 619?
- A 30-amp relay is included and Wolo's instructions require it for motorcycles and for new horn-button installs, because the horn draws 17 A. Wolo also calls for a 20-amp fuse (not included) and 16-gauge or heavier wire on the power side.
- Does the Big Bad Max need an air tank or compressor?
- No. The compressor is built into the one-piece horn body, so there is no separate tank, air line or valve. It mounts with a single bolt through a 5/16 in. hole and runs from the vehicle's 12-volt horn circuit.
- What warranty does the Wolo 619 have?
- Wolo's installation sheet gives a three-month warranty to the original purchaser against defects in materials and workmanship. Claims require returning the horn prepaid with proof of purchase and a $10 check or money order for return shipping.
