- +Four chrome-plated metal trumpets on an all-metal base for a genuine multi-chord locomotive tone
- +Complete onboard-air kit: oil-less 2.55 CFM compressor, 2.5-gallon tank, hoses and fittings included
- +Wolo discloses real engineering detail — chord frequencies, compressor CFM/duty cycle, and full dimensions
- +Established US brand with decades in the vehicle-horn market and broad retailer availability
- +Self-contained design needs no separate air source, so it suits trucks without an existing air system
- −153 dB headline number has no stated test distance, so it isn't directly comparable
- −At ~$485 it is priced well above many comparable 4-trumpet onboard-air kits
- −33% duty-cycle compressor and 2.5-gallon tank limit back-to-back blasts before recharge
- −Warranty terms are not published on the product page
- −Frequently shows as out of stock on Wolo's own site
Methodology
This review aggregates publicly available information from manufacturer specifications, retailer listings, and verified user reviews. We do not perform hands-on testing. Last reviewed June 6, 2026. For the Wolo Quadraphonic Express PRO 877-858 we relied primarily on Wolo Manufacturing’s own product page for the spec sheet (decibel rating, chord frequencies, compressor and tank data, dimensions, and price), and cross-referenced availability and pricing against Summit Racing, Amazon, Zoro, and Northern Tool listings. Where a number lacks a disclosed test condition, we say so rather than guess.
Quick verdict
The Wolo 877-858 Quadraphonic Express PRO is a complete, self-contained 4-trumpet train horn kit aimed at truck and SUV owners who want a real locomotive chord without sourcing a separate air system. Wolo is unusually forthcoming with engineering detail — it publishes the actual chord frequencies, the compressor’s CFM and duty cycle, and every component dimension — which we respect. The catch is the headline 153 dB figure carries no stated test distance, and at roughly $485 it sits at the premium end of the onboard-air market. We rate it 3.8/5: a solid, honestly-documented kit that you pay a brand-name premium for.
What it is
The Quadraphonic Express PRO is Wolo’s flagship four-trumpet onboard-air train horn. “Onboard air” means the kit is fully self-contained: it ships with the horn, a 12-volt air compressor, a 2.5-gallon steel air tank, a pressure switch, and all the hose and fittings needed to plumb it together. You do not need an existing air system on the vehicle — the included compressor fills the tank, and the tank feeds the horn on demand.
This is the step-up sibling to the horn-only Wolo 877 (which is the same trumpet assembly sold without the air system for around $170). The 877-858 “PRO” designation indicates the complete kit. It is built for pickups, SUVs, Jeeps, and similar vehicles where there’s room under the bed or in a cargo area for a tank and compressor.
Specifications
| Spec | Value |
|---|---|
| Sound output | 153 dB (tested at 90/110 PSI; test distance not disclosed) |
| Chord frequencies | 307 / 307 / 347 / 440 Hz |
| Trumpets | 4 metal trumpets, chrome-plated |
| Horn base / finish | All-metal base, painted enamel finish |
| Horn dimensions | 15.5” L x 12.25” W x 12.5” H |
| Solenoid | 12 V / 250 mA |
| Compressor | Oil-less, gearless permanent-magnet motor, thermal protection |
| Compressor output | 2.55 CFM @ 100 PSI |
| Compressor duty cycle | 33% @ 100 PSI |
| Compressor current | 21 A peak |
| Air tank | 2.5 gallon steel |
| Pressure switch | On 80 PSI / Off 110 PSI |
| Tank dimensions | 17.25” L x 6.5” W x 8.25” H |
| Hose | 10 ft high-pressure hose + 20 ft coiled filler hose, 1/4” O.D. brass fittings |
| Power source | 12 V onboard air |
| Price | $484.99 (Wolo MSRP) |
| Warranty | Not stated on product page |
- Loudness
- 153 dB (distance not disclosed)
- Trumpets
- 4 (307/307/347/440 Hz)
- Tank
- 2.5 gal, 80/110 PSI
- Compressor
- 2.55 CFM, 33% duty
- Price
- ~$485

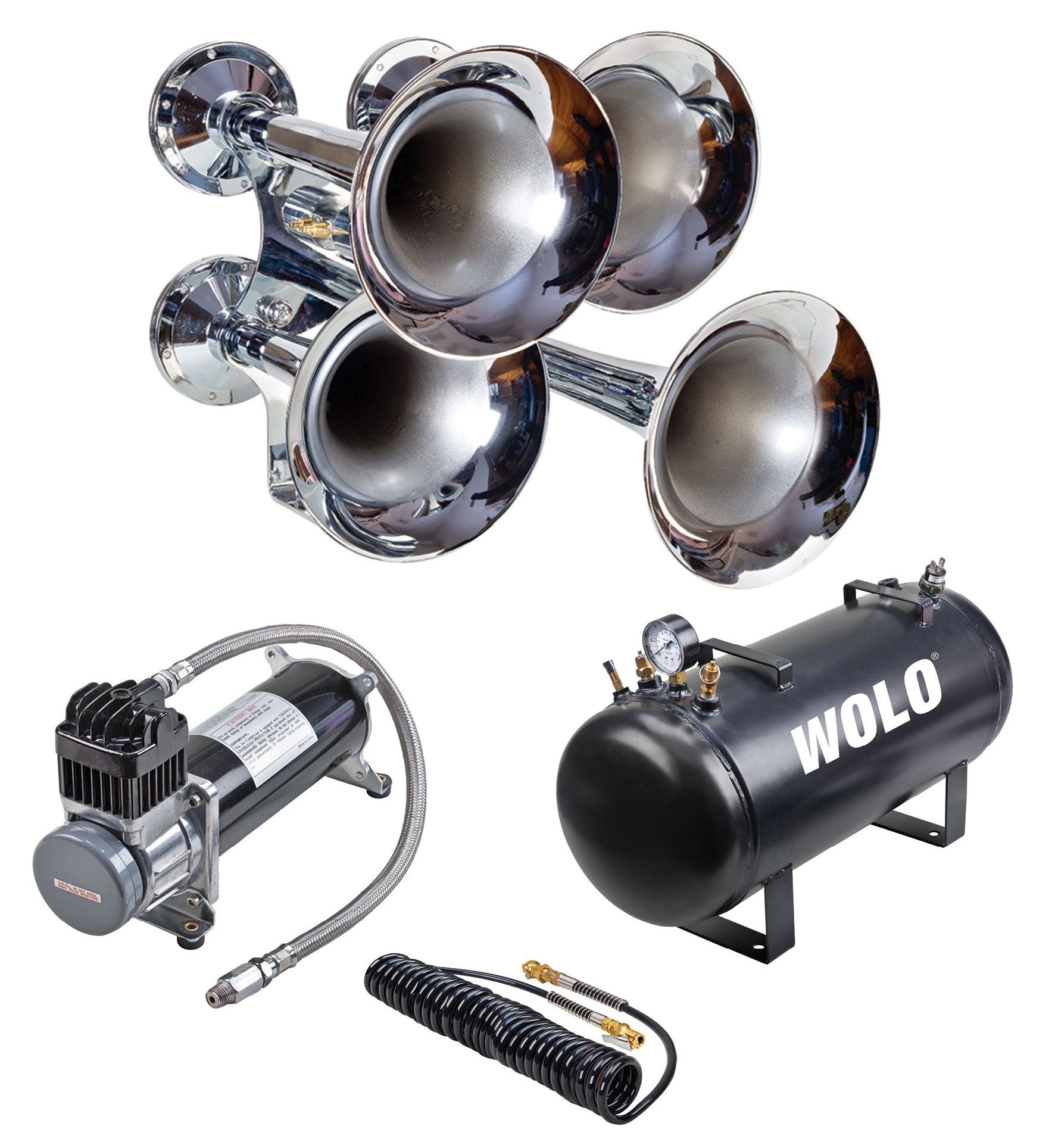

What’s in the box
- Four-trumpet chrome-plated metal train horn with all-metal base
- 12-volt oil-less air compressor with washable air filter
- 2.5-gallon steel air tank with pressure switch, pressure gauge, relief valve, and water-drain petcock
- 10 feet of flexible high-pressure hose
- 20 feet of coiled filler hose
- Stainless-steel mounting hardware and quality brass fittings
Pros
- Genuine four-trumpet, all-metal horn with a true multi-chord locomotive tone rather than a thin two-trumpet imitation.
- Complete onboard-air package — compressor, tank, hoses, and fittings — so there’s nothing else to buy to get it working.
- Wolo publishes real engineering detail: exact chord frequencies, compressor CFM and duty cycle, peak current, and every component’s dimensions. That spec transparency is rarer than it should be in this category.
- Oil-less, maintenance-free compressor with thermal protection and a washable filter keeps upkeep low.
- Backed by a long-established US horn manufacturer with wide retailer availability for parts and support.
Cons
- The 153 dB headline is stated at 90/110 PSI but with no test distance, so it can’t be compared apples-to-apples with horns rated at a specified 1 m or 3 ft.
- At roughly $485 it is priced noticeably higher than many comparable 4-trumpet onboard-air kits.
- A 33% duty cycle and a modest 2.5-gallon tank mean limited sustained or rapid back-to-back blasts before the compressor has to catch up.
- No warranty terms are published on the product page, so coverage is unclear up front.
- The kit is often listed as out of stock on Wolo’s own website.
Alternatives
- Wolo Dragon Express 854 — A lower-cost Wolo onboard-air option if you want the same brand without the flagship price. See our Wolo Dragon Express 854 review.
- Wolo 853 Philly Express — Another Wolo onboard-air kit positioned between the budget and PRO tiers; read the Wolo 853 Philly Express review.
- HornBlasters Conductor’s Special 228H — A popular dual-trumpet onboard-air kit with a strong enthusiast community and clearer dB-distance disclosure; see the Conductor’s Special 228H review.
For a broader ranking of the loudest options, see our loudest train horns guide.
Install / compatibility notes
This is a 12-volt onboard-air kit, so installation is more involved than a simple electric horn but standard for the category. You’ll mount the horn (it needs a clear, downward- or rearward-facing spot roughly 15.5” long), find a sheltered location for the 2.5-gallon tank and compressor, run the included high-pressure hose from the tank to the horn, and wire the compressor to the battery through the supplied pressure switch. The pressure switch automatically cycles the compressor on at 80 PSI and off at 110 PSI.
Because the compressor draws up to 21 amps at peak, wire it on its own fused circuit with a relay — don’t tap it into a small accessory line. Mount the tank with its drain petcock accessible so you can bleed off condensation, which matters in humid or cold climates; our winter prep guide covers moisture management. The horn fires through a 12 V / 250 mA solenoid, so the dash button only switches the solenoid, not the full air load. For mounting-spot ideas, see where to mount a train horn on a truck, and for the pressure logic behind tank sizing read train horn PSI explained.
FAQ
How loud is the Wolo 877-858 really?
Wolo rates it at 153 dB, measured at 90 to 110 PSI, but the company does not disclose the microphone distance for that figure. A four-trumpet metal horn at 110 PSI is unquestionably very loud, but without a stated distance the 153 dB number should be treated as a marketing peak rather than a lab-comparable rating. Our decibels explained guide covers why test distance changes everything.
Do I need a separate air compressor?
No. The 877-858 PRO is a complete onboard-air kit that includes its own 12-volt oil-less compressor, 2.5-gallon tank, hoses, and fittings. The horn-only Wolo 877, by contrast, requires you to supply air separately.
Can I run it continuously?
Not for long. The compressor is rated at a 33% duty cycle at 100 PSI, and the tank holds 2.5 gallons, so you get several strong blasts before pressure drops and the compressor needs time to refill. It’s designed for short signaling bursts, not sustained sounding.
What vehicles is it suited to?
Pickups, SUVs, Jeeps, and vans with room to mount a 17-inch tank plus the compressor. The horn assembly is about 15.5 inches long, so you also need a clear mounting location underneath or behind the vehicle.
Is there a warranty?
Wolo does not publish warranty terms on the 877-858 product page. If warranty length matters to you, confirm coverage with Wolo or your retailer before buying.
Sources
- Wolo Manufacturing - Model 877-858 Quadraphonic Express PRO product page - full spec sheet: 153 dB rating, 307/307/347/440 Hz, trumpet count, horn/tank/compressor dimensions, compressor CFM and duty cycle, solenoid, included items, and $484.99 price
- Summit Racing - Wolo 877 Quadraphonic Express - retailer listing used to confirm the horn assembly and brand
- Amazon - Wolo 877 Quadraphonic Express 4-Trumpet Train Horn - cross-check on trumpet count and triple-chrome-plated finish
- Zoro - Wolo 877 Quadraphonic Express - pricing reference for the horn-only 877 (~$173) versus the complete 877-858 kit
- Northern Tool - Wolo Quadraphonic Express, Model 877 - additional retailer cross-check on the 153 dB output claim
A well-documented, all-metal 4-trumpet onboard-air kit from a reputable US brand — worth a look if you value Wolo's spec transparency and complete-kit convenience, but the unstated dB distance and ~$485 price make it a premium-priced rather than value pick.
Frequently asked questions
Quick answers to the questions people ask most about this topic.
- How loud is the Wolo 877-858 really?
- Wolo rates it at 153 dB, measured at 90 to 110 PSI, but does not disclose the microphone distance for that figure. A four-trumpet metal horn at 110 PSI is very loud, but without a stated distance the 153 dB number should be treated as a marketing peak rather than a lab-comparable rating.
- Do I need a separate air compressor for the Quadraphonic Express PRO?
- No. The 877-858 PRO is a complete onboard-air kit that includes its own 12-volt oil-less compressor, a 2.5-gallon steel tank, hoses, and fittings. The horn-only Wolo 877, by contrast, requires you to supply air separately.
- Can I run the Wolo 877-858 continuously?
- Not for long. The compressor is rated at a 33% duty cycle at 100 PSI and the tank holds 2.5 gallons, so you get several strong blasts before pressure drops and the compressor needs time to refill. It is designed for short signaling bursts, not sustained sounding.
- What vehicles is the 877-858 suited to?
- Pickups, SUVs, Jeeps, and vans with room to mount the roughly 17-inch tank plus the compressor. The horn assembly is about 15.5 inches long, so you also need a clear mounting location underneath or behind the vehicle.
- Is there a warranty on the Wolo 877-858?
- Wolo does not publish warranty terms on the 877-858 product page. If warranty length matters to you, confirm coverage with Wolo or your retailer before buying.
- What chord frequencies does the Quadraphonic Express PRO play?
- Wolo publishes the four chord frequencies as 307, 307, 347, and 440 Hz across its four chrome-plated metal trumpets, producing a genuine multi-chord locomotive tone.
