Best Train Horn for Ford Bronco & Bronco Sport: Fitment and Kit Picks

The sixth-generation Ford Bronco is one of the trickiest platforms to package a train horn on, so picking the best train horn for a Ford Bronco is really two questions: which kit, and where it goes. This guide answers both for the full-size 2021+ Bronco and the smaller unibody Bronco Sport.

Why the Bronco is a packaging problem, not a power problem

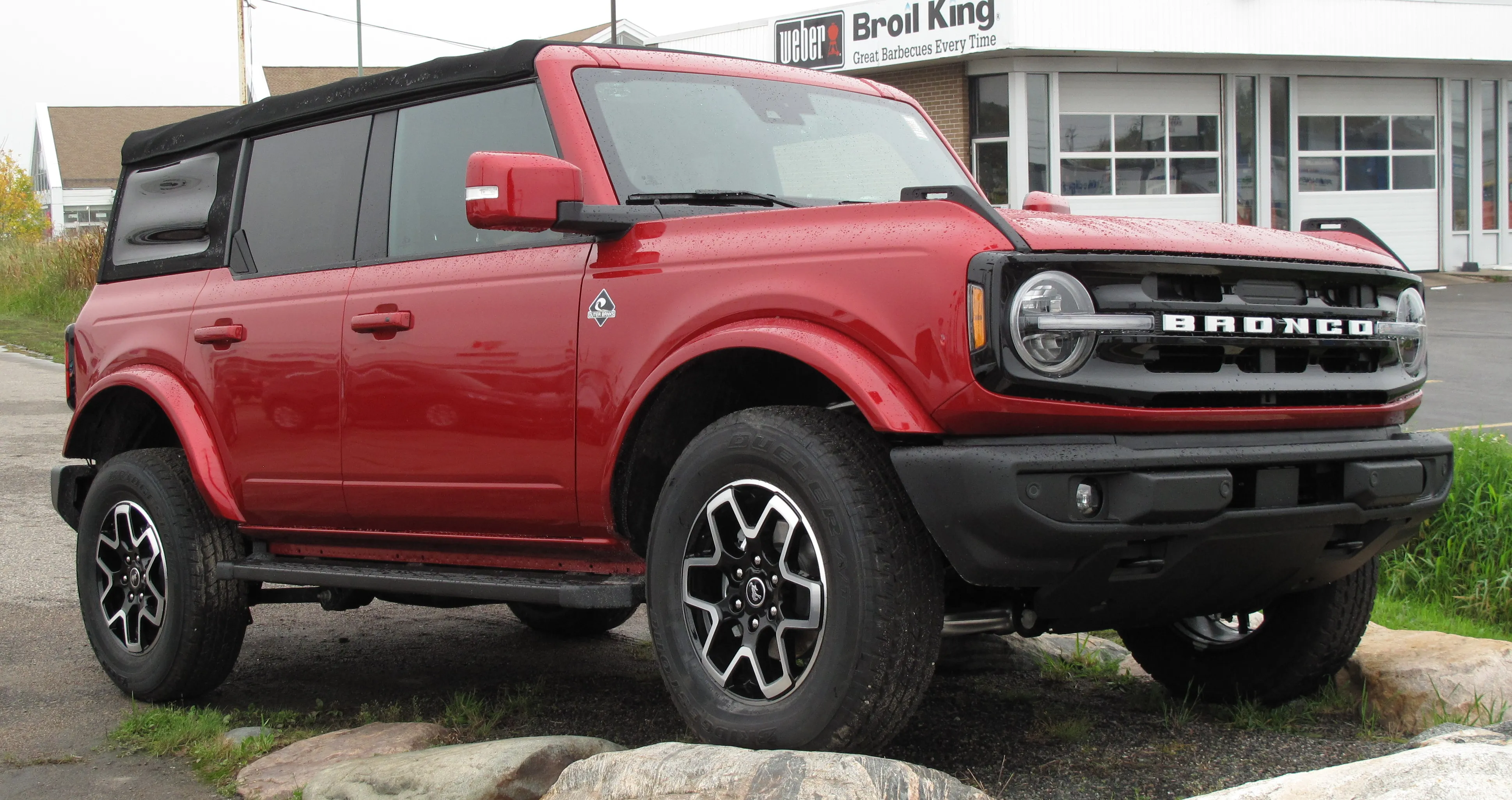

The 2021+ Bronco is body-on-frame on Ford’s T6 platform, with a two-door on a 100.4-inch wheelbase and a four-door on a 116.1-inch wheelbase, per Wikipedia. Electrically it behaves like a truck: a 12-volt kit with a 20-to-25-amp compressor is no problem for the 2.3L or 2.7L EcoBoost.

The catch is space. Owners on the Bronco6G forum are blunt: the engine compartment is “far too small to install a compressor and a tank,” and the hood has room for an ARB compressor “but not a lot of room for anything else.” Underneath, the exhaust, driveshaft, and gas tank eat most of the obvious frame-rail real estate. On a Bronco, the tank location is half the decision, and it drives which kit makes sense.

The Bronco Sport is a different animal. Per Wikipedia it rides on Ford’s C2 unibody platform, shared with the Escape and Maverick, with a 1.5L three-cylinder or 2.0L four-cylinder EcoBoost. There are no frame rails, so you’re working with the engine bay and whatever fits behind a fender liner. Small, self-contained kits win here.

Where owners actually mount horns, compressors, and tanks

Here is what Bronco owners on Bronco6G and Bronco Nation report actually works on the 2021+ platform:

• Compressor under the hood. Ford sells an official Bronco Underhood Air Compressor Kit (part M1830BRC), an ARB twin compressor on a 100% bolt-on bracket that uses factory mounting points and fits 2.3L and 2.7L Broncos but not the Raptor or Everglades. ARB also sells the engine bay mount alone (part 3580030, $279.95). Either way, the compressor goes up top and the tank goes elsewhere.
• Tank under the rear cargo floor. One Bronco6G member ran a four-gallon tank under the rear cargo area; another planned an ARB single compressor in the under-rear-floor storage with the tank on a frame rail. A Bronco Nation member buried a Hadley horn stack, ARB twin, and tank in the cargo area and calls the install reversible “with the exception of 2 small bolt holes.”
• Tank under the body. Another owner mounted the tank underneath next to the gas tank. Bronco6G members also note that after an exhaust swap, “the much smaller muffler will provide space for a tank maybe even a horn.”
• Horns under the rocker area. One owner installed a four-horn kit “just under the doors behind the rock sliders facing the rear,” with brackets welded between the driveshaft and the exhaust. That’s fabrication, not bolt-on.
• Small horns under the hood. A compact motorcycle-style train horn fit on the passenger side next to the air filter box.

One warning from a Bronco Nation member deserves weight if you actually wheel your truck: mounting horns under the Bronco “is a bad idea” if you do deep water crossings. Down-facing trumpets under the body ingest water and mud. If you off-road hard, favor cargo-area or engine-bay placements.

Best overall for the 2021+ Bronco: HornBlasters Conductor’s Special 228H

For most four-door Bronco owners, the Conductor’s Special 228H is the right balance of sound, footprint, and price. It pairs the four-trumpet Shocker XL with HornBlasters’ pre-assembled 228H air source, where the compressor is already mounted to a 2-gallon tank. That unit measures 19 by 6.25 by 14.5 inches and weighs 17.15 lb per HornBlasters’ spec page, small enough for the rear cargo floor of a four-door or against the cargo wall.

Loudness

147.7 dB (Amazon listing figure)

Tank

2.0 gal, 150 PSI, 110 PSI restart

Compressor

30% duty at 100 PSI, 25 A max

Honk

3-5 s per full tank, about 55 s recovery

Trumpets

19.5, 16.25, 14.75, 12.75 in; 5 in flare

Price

$649.99 black (regular $827.99)

Warranty

Lifetime on horns, 2 years on other parts

The Shocker XL bells are individual, so you can split them two per side in the rocker area or under the rear bumper. The 30% duty cycle is the one real limitation: this compressor refills in bursts, not continuously, so it’s a poor candidate for doubling as tire-inflation air. Read our full HornBlasters Conductor’s Special 228H review for the deeper dive.

Loudest with the slimmest tank: Kleinn HK9-Slimline

If you want the biggest sound and plan to lay the tank flat under the cargo floor, Kleinn’s HK9-Slimline solves the Bronco’s exact problem. The 3-gallon “slim design” tank measures 27 by 6.25 by 7 inches, and the compressor is a separate 10 by 4 by 6.75-inch waterproof unit rated for 100% duty cycle, per Kleinn’s product page. The compressor can live under the hood on an ARB-style bracket while the flat tank slides under the floor.

Horn

Demon 730, spun-steel trumpets 18.25, 14.75, 10.5 in

Rated output

157.8 dB at 150 PSI (Kleinn claim)

Compressor

150 PSI, 2.0 CFM at 0 PSI, 23 A, 100% duty, submersible

Pressure switch

110 PSI on, 145 PSI off

Price

$919.96 new open box (regular $1,149.95)

Warranty

1 year limited

A note on that decibel figure. HornBlasters’ testing page states the Nathan K5, the loudest horn they’ve measured, hits 149.4 dB at 3 feet, and that any horn claiming 150-plus dB is “either lying or measuring incorrectly.” Kleinn’s 157.8 dB number lists no distance. Treat the Demon 730 as extremely loud, not as literally louder than a locomotive. Our Kleinn HK9 review and Kleinn Demon 730 review unpack this. The 100% duty cycle and waterproof rating are the real, verifiable advantages for an off-road truck.

Horn-only pick if you already run ARB air: Kleinn Model 230

Many Broncos already carry an ARB twin under the hood for airing up tires. If that’s you, don’t buy a second compressor. Kleinn’s Model 230 “Beast” is the triple horn from the HK7 kit sold alone for $249.95, per Kleinn, on an 18.5 by 18 by 7-inch flat rack with 18.5, 16.5, and 14.5-inch composite ABS trumpets and the VX6003 brass solenoid.

Kleinn’s requirements: a tank of at least 2.5 gallons and an operating range of 140 to 200 PSI. Check your compressor’s cut-off pressure against that before ordering. A retailer listing for the full HK7 kit notes the Model 230 rack “requires 40% less clearance than other full size train horns,” and the trumpets separate from the bracket for tight spots, which is exactly what a Bronco needs. If you’d rather have everything in one box, the complete HK7 kit is $839.95 with a 3-gallon tank and a 100% duty compressor rated 2.11 CFM. Our Kleinn HK7 review covers that version.

Best for the Bronco Sport: compact all-in-one kits

The Bronco Sport can’t take a 3-gallon tank and a triple steel horn without serious compromise. What works is a small self-contained kit, and there’s a real-world proof: a Bronco Sport Forum member installed a HornBlasters Rhino 3-liter kit on a 2021 Bronco Sport, horns in the engine bay and the compressor “partially tucked under the fender” on the right side with big hose clamps and rubber underneath for sound suppression. Their verdict: “way louder than I expected in person.” The factory horn sits behind the driver’s-side headlight per owners on the same forum, so the passenger side of the bay is the open real estate.

HornBlasters Rhino 3 Liter kit. A three-chime horn measuring 16.75 by 15 by 11.25 inches on a 3-liter (about 0.79-gallon) combined compressor-and-tank unit of 16.535 by 4.921 by 7.086 inches. It runs 120 PSI with a 90 PSI restart, draws 18 A max, honks 2 to 3 seconds per charge, and refills from 90 to 120 PSI in about 35 seconds. It’s $399.99 on sale from $529.97 with a 2-year warranty, though it currently shows sold out at HornBlasters. HornBlasters warns the tank-mounted compressor isn’t fully sealed and must be mounted upright away from moisture, which matters behind a fender liner.

Pacbrake HP10314 triple train horn and air kit. Listed for the Bronco and Bronco Sport by an aftermarket Bronco retailer at $945.56, it pairs Pacbrake’s HP10254 triple horn with the HP325 12-volt compressor and a half-gallon tank, running 85 to 150 PSI. Pacbrake publishes an honest rating of 110 dB at 20 feet at 100 PSI with a 300 to 550 Hz fundamental and a -40°F to 248°F operating range. The half-gallon tank means short honks, but it’s the smallest complete triple-horn footprint here.

Retailers do list the big Kleinn HK9 for the Bronco Sport at $1,129.99 with a 5-gallon tank, but fitment is explicitly “universal, some adaptation may be required,” and a 5-gallon tank in a compact crossover costs cargo space. Only go that route if you’re committed to a cargo-area install.

Wiring it into the Bronco’s aux switches

This is where the 2021+ Bronco beats nearly every other platform. Per Bronco Nation, the Bronco offers six pre-wired auxiliary switches above the rear-view mirror, connected to the power distribution box, with pre-run leads to the front grille, behind the glove box, above the passenger visor, and the passenger rear quarter panel. They’re standard on Wildtrak, First Edition, Badlands, and Black Diamond, and optional on Base, Big Bend, and Outer Banks.

• Use one aux switch as the arming circuit for the compressor and horn relay, so the system is dead unless you flip it.
• Don’t run the compressor’s full load through the switch circuit. The 228H draws up to 25 A and the HK9-Slimline compressor 23 A per their spec pages, so feed the compressor from the battery through a fused relay and let the aux switch trigger it. Our relay wiring guide walks through it.
• Keep the factory horn. The Bronco Sport owner above wired the train horn as a separate circuit so the stock horn still worked.

Before you order, check our 2026 train horn buying guide for how dB claims, tank size, and duty cycle interact, since those three specs decide how a kit behaves more than the brand name does. Prices here were checked 09/09/2026 and move constantly.

Legality and the last word

A train horn on a Bronco is legal to own everywhere in the US, but using it on a public road is regulated state by state, and inspection states are the strictest. Read are train horns legal on cars and your state’s page in our state legality index before spending $600 or more.

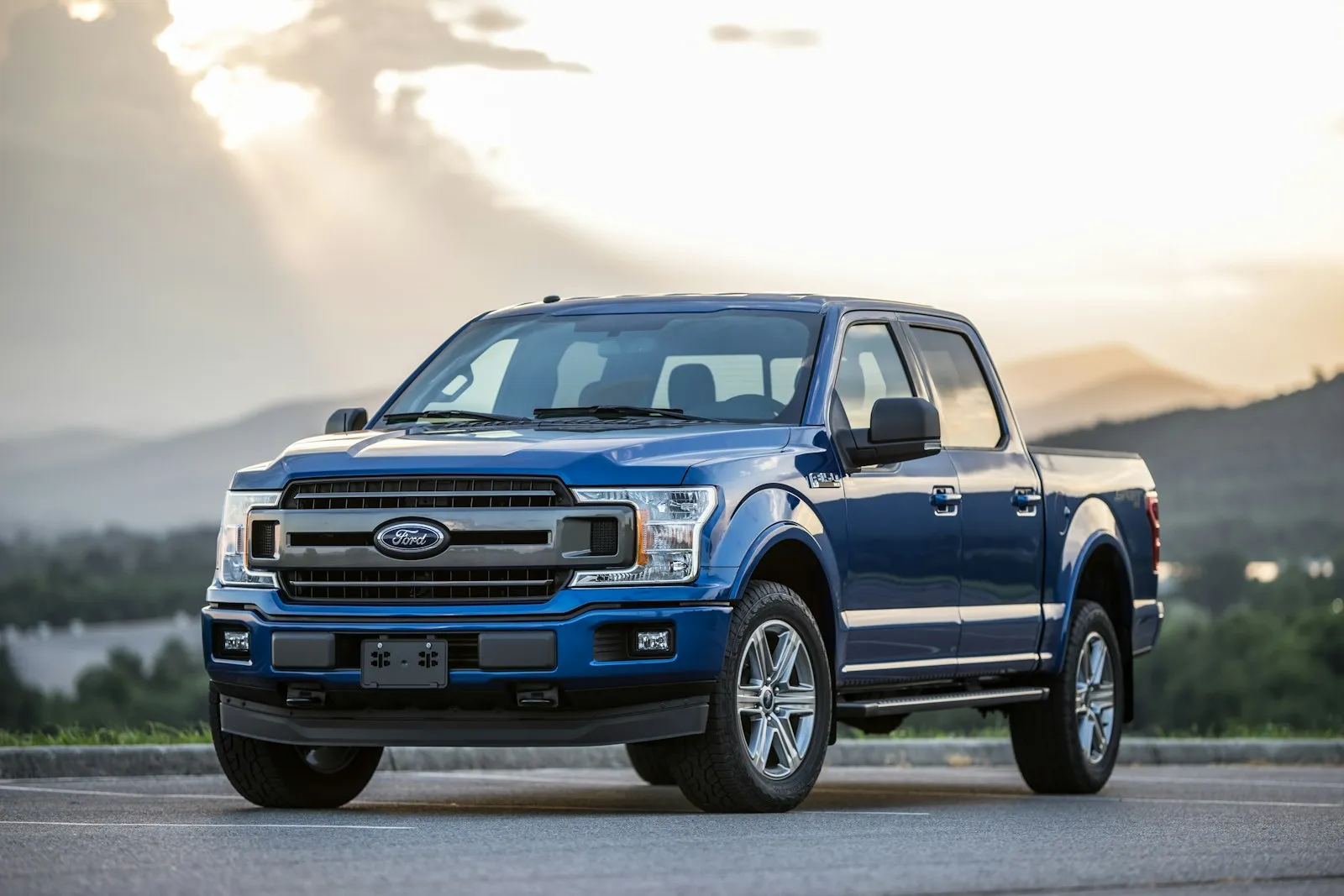

For how the same kits package on other platforms, our Jeep Wrangler train horn guide and Ford F-150 train horn guide show the harder and easier ends of the scale. The Bronco lands between them: truck electrics, Wrangler-grade packaging. Pick the tank location first, then the kit.

Sources

• Wikipedia — Ford Bronco (sixth generation) — body-on-frame T6 platform, 100.4 and 116.1-inch wheelbases, 2.3L and 2.7L EcoBoost engines
• Wikipedia — Ford Bronco Sport — C2 unibody platform shared with Escape and Maverick, 1.5L and 2.0L EcoBoost engines
• Bronco6G — Hornblaster train horn install? Where to mount horns and compressor tank? — engine bay “far too small” quote, ARB hood kit space quote, muffler-swap space note, tank on frame rail
• Bronco6G — HornBlasters Air Horn Install — four-horn kit under the doors behind rock sliders with brackets welded between the driveshaft and exhaust
• Bronco6G — Moto horn train horn — under-hood motorcycle-style horn placement on the passenger side next to the air filter box
• Bronco6G — On-board ARB compressor with reserve tank, where did you put the tank? — four-gallon tank under rear cargo area, tank next to gas tank
• Bronco Nation — Train Horn for 2023 Badlands Bronco — cargo-area Hadley and ARB install, “2 small bolt holes” quote, water-crossing warning
• Bronco Nation — How to Use the Auxiliary Switches on your Bronco — six aux switches above the rear-view mirror, pre-run lead locations, standard and optional trims
• Bronco Sport Forum — Train horns, baby!! — Rhino 3-liter install on a 2021 Bronco Sport, compressor under fender, separate circuit for factory horn
• Bronco Sport Forum — Anyone know where the horn is located? — factory horn behind driver’s-side headlight
• Ford Accessories — Bronco 2021-2026 Underhood Air Compressor Kit M1830BRC — ARB twin compressor, bolt-on factory mounting points, 2.3L and 2.7L fitment, excludes Raptor and Everglades
• ARB USA — Compressor Engine Bay Mount 3580030 — $279.95, single or twin compressor, 2021-2023 Bronco trims, not Raptor
• HornBlasters — Conductor’s Special 228H Train Horn Kit — price, tank size, PSI, duty cycle, amperage, dimensions, weight, trumpet lengths, honk and recovery times, warranty
• Amazon — HornBlasters Conductor’s Special 228H listing — 147.7 dB rating, 4 trumpets, 2-gallon, 150 PSI
• HornBlasters — Rhino Black 3 Liter Train Horn Kit — price, 3-liter tank, 120 PSI, 18 A, honk and fill times, dimensions, warranty, sold-out status, upright-mounting warning
• Kleinn — Model HK9-Slimline Triple Train Horn Kit — slim 3-gallon tank dimensions, compressor specs, dB claims, 23 A draw, pressure switch, price, warranty
• Kleinn — The Beast 230 Triple Train Horns — $249.95, 155.1 dB claim, trumpet lengths, rack dimensions, 2.5-gallon minimum tank, 140-200 PSI range
• Kleinn — Model HK7 Triple Train Horn Kit — $839.95, 3-gallon tank, 100% duty at 100 PSI, 2.11 CFM, 1-year warranty
• Dale’s Super Store — Kleinn HK7 Pro Blaster Triple Train Horn Kit — “requires 40% less clearance” claim, separable trumpets
• ExtremeTerrain — Kleinn Bronco Sport ProBlaster Triple Train Horn System HK9 — $1,129.99, 5-gallon tank, “universal fitment, some adaptation may be required”
• Everything Bronco Aftermarket — Pacbrake HP10314 Premium Triple Train Horn and Air Kit — $945.56, 110 dB at 20 ft at 100 PSI, half-gallon tank, 85-150 PSI, HP325 compressor, 300-550 Hz, temperature range, Bronco and Bronco Sport listing
• RealTruck — 2021 Ford Bronco Train Horn Kits — Kleinn ProBlaster kits listed for the Bronco from $549.95
• HornBlasters — Why Fake Decibel Ratings Mislead Buyers — 3-foot test distance, Nathan K5 149.4 dB, statement on 150-plus dB claims
