HornBlasters King 5 544K Train Horn Kit Review (2026)

Methodology

This review aggregates publicly available information from manufacturer specifications, retailer listings, and verified user reviews. We do not perform hands-on testing. Last reviewed: September 23, 2026. Our primary source is HornBlasters’ official King 5 544K Train Horn Kit page, cross-checked against the brand’s standalone King 5 horn page, the King 5 manifold page, the HB-1NM compressor page, the King 3 544K and Nathan AirChime K5 kit pages, the brand’s decibel-testing article, and the buyer reviews attached to the kit listing. HornBlasters does not publish a decibel figure or chord frequencies for the King 5, and we say so rather than estimate. Every external source appears in the Sources section at the end.

Quick verdict

The King 5 544K is HornBlasters’ own take on the full-size, five-chime locomotive horn, paired with the same 5-gallon HornAir 544K air system the brand uses on its Admiral, Katrina and Octohorn kits. The spec sheet is unusually complete on the air side (pressure switch settings, amperage, duty cycle, fill times), and the horn carries a 5-year defect warranty. The weak points are price and missing acoustic data: at $2,597.97 to $2,747.97 it costs more than twice as much as the Admiral 544, and there is no published dB rating, test distance or Hz breakdown. Our editorial rating is 3.9/5: a serious kit for buyers who specifically want a K-series-sized five-chime horn without paying Nathan AirChime K5 kit money.

What it is

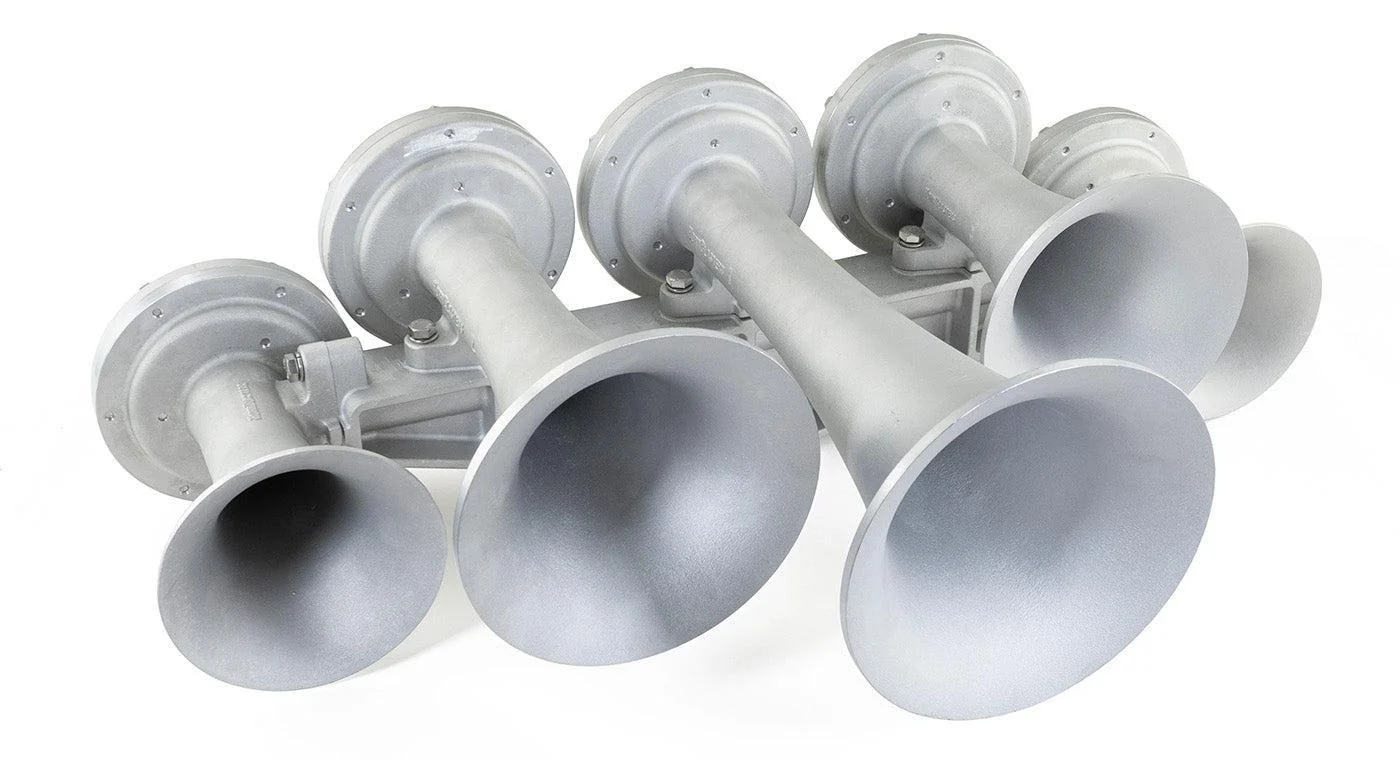

The King 5 544K is a complete onboard-air train horn kit. HornBlasters describes the horn as a “new-generation” five-chime unit with five die-cast aluminum bells, a die-cast aluminum manifold and stainless steel diaphragms, machined to hit the frequencies of the classic US-train chord. It is a physically big horn: 19 in long, 29.75 in wide and 9.25 in tall, weighing 35 lb, fed through a 1/2 in NPT inlet.

Those horn dimensions match what HornBlasters lists for the reconditioned Nathan AirChime K5LA it also sells (19 x 29.75 x 9.25 in, 37 lb). The brand’s King 5 manifold page also says that manifold is compatible with genuine K-series Nathan AirChime bells. In our editorial reading, the King 5 is positioned as a new-build, K5-format horn at a lower price than a reconditioned railroad K5LA. HornBlasters does not use the word “replica” and does not claim acoustic parity, so we don’t either.

The air side is the HornAir 544K system: a black 5-gallon, 8-port tank, the HB-1NM compressor in Stealth Black (or chrome, depending on variant), a 110/150 PSI pressure switch with a 40 A relay, and a Black Widow 1/2 in stainless steel electric valve. HornBlasters rates the kit at 5 to 6 seconds of honk time from a full tank.

This kit suits full-size pickups, work trucks and larger SUVs with real underbody or bed space. It is not a compact-car kit.

Specifications

Spec	Value
Part numbers	HK-H5-544K / HK-H5-544 (raw horn), HK-H5K-544K / HK-H5K-544 (Stealth Black horn)
Horn	King 5, 5-chime
Horn construction	Die-cast aluminum bells and manifold, stainless steel diaphragms
Horn dimensions (L x W x H)	19 x 29.75 x 9.25 in (482.6 x 755.65 x 234.95 mm)
Horn weight	35 lb (15.88 kg)
Horn air inlet	1/2 in NPT
Sound output	Not published by HornBlasters (no dB figure or test distance)
Chord frequencies	Not published (“US-train chord” per brand)
Operating pressure (cut-out)	150 PSI
Restart pressure (cut-in)	110 PSI
Honk time	Up to 5-6 seconds (brand rating)
Tank	HornAir 5-gallon, 8-port, black
Tank dimensions	20.5 in L x 9.5 in dia., 11.5 in tall with legs
Tank weight	20 lb (9.07 kg)
Compressor	HornBlasters HB-1NM (AC-1NM)
Compressor flow	1.75 CFM at 0 PSI
Compressor duty cycle	100% at 100 PSI (50% at 200 PSI per compressor page)
Compressor max working pressure	200 PSI (compressor page)
Compressor dimensions	10.75 x 4 x 6.75 in
Compressor weight	10.1 lb (compressor page)
Max amperage	25 A
Voltage	12 V DC
Fill time, 0-150 PSI	6 min 45 sec (plus or minus 10 sec) at 13.8 V
Fill time, 110-150 PSI	2 min (plus or minus 5 sec) at 13.8 V
Valve	Black Widow 1/2 in NPT stainless steel electric valve
Price	$2,597.97 (raw horn), $2,747.97 (Stealth Black horn)
Warranty	5 years on the horn, 2 years on the rest of the kit (manufacturer’s defects)

Chimes

5

Pressure

110-150 PSI

Tank

5 gal

Honk time

5-6 sec

Horn weight

35 lb

Price

from $2,597.97

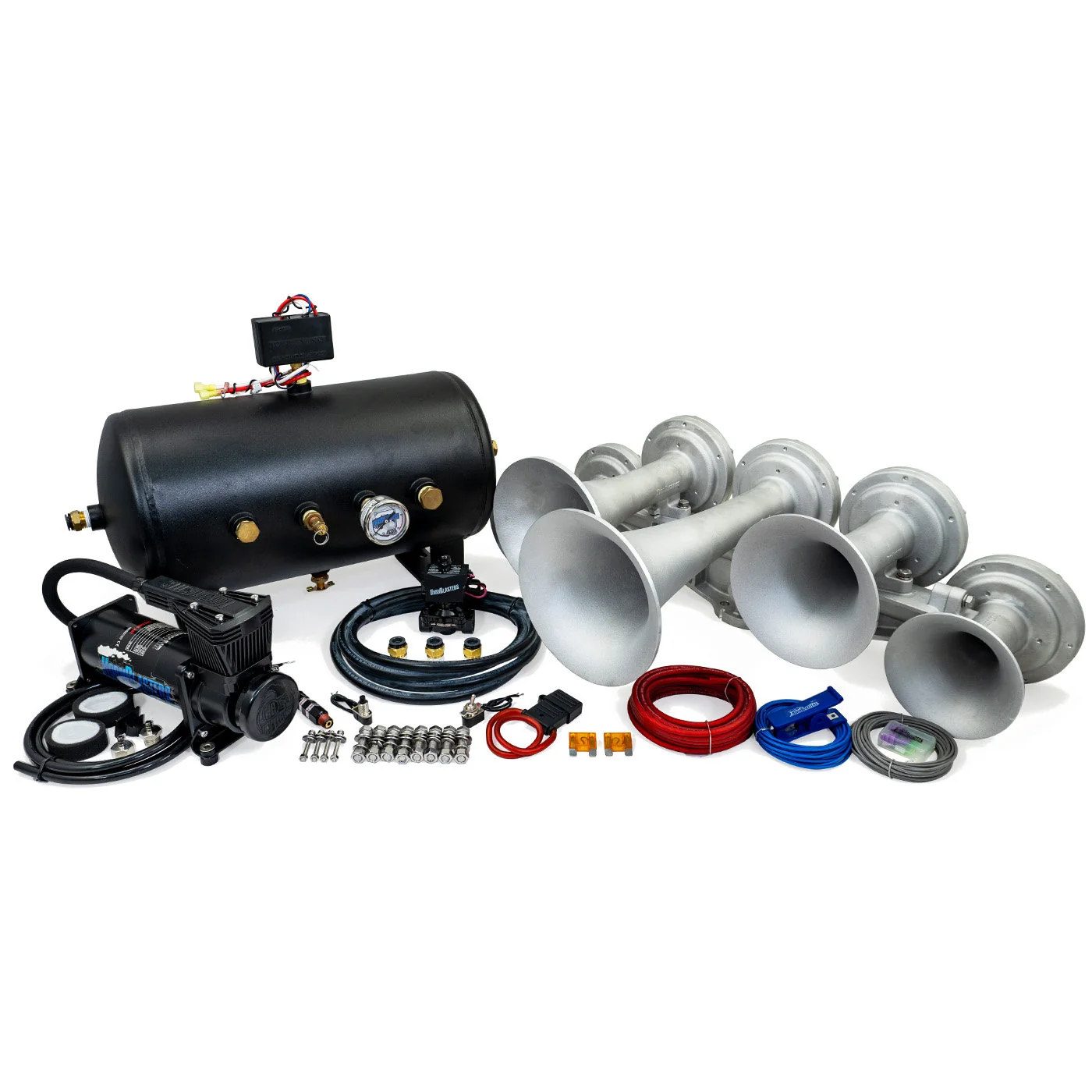

What’s in the box

Per the HornBlasters kit page, the King 5 544K ships with:

• King 5 five-chime train horn
• 5-gallon black 8-port air tank
• HornBlasters HB-1NM Stealth Black air compressor (a chrome-compressor variant is also listed)
• 110/150 PSI pressure switch with 40 A relay
• Black Widow 1/2 in NPT stainless steel electric air valve
• 17 ft of 1/2 in air line
• Spare air filter elements
• Brass NPT fitting kit, including a safety blow-off and drain cock
• HornBlasters 200 PSI stainless steel liquid-filled air gauge
• 22 ft of 8-gauge red wire, plus 22 ft each of 18-gauge blue and grey wire
• Complete wiring kit with fuse holder and fuses
• Mounting hardware and installation instructions

A mounting bracket, wireless remote and tire-inflation kit are not listed as included. Those are sold separately.

Pros

• Full-size five-chime, K5-format horn with die-cast aluminum bells and stainless steel diaphragms
• 5-gallon tank with a 100%-duty-at-100-PSI compressor, rated at 5-6 seconds of honk and a 2-minute recovery from 110 to 150 PSI
• Very complete published spec sheet: dimensions, weights, amperage, duty cycle and fill times for both the horn and the air system
• 5-year defect warranty on the horn itself, longer than the 2-year coverage on the rest of the kit
• Onboard air can also feed tire inflation and small air tools, per HornBlasters
• Roughly half the price of HornBlasters’ reconditioned Nathan AirChime K5 544K kit ($4,999.99)

Cons

• No published dB rating or test distance for the King 5 specifically
• Chord frequencies (Hz) are not disclosed, only described as the “US-train chord”
• $2,597.97 to $2,747.97 is more than twice the price of the Admiral 544 kit on the same air system
• 29.75 in wide horn plus a 20.5 in tank needs a lot of mounting space
• Only three buyer reviews on the listing, and two of them date from 2018 and 2020
• No mounting bracket or remote in the box

How loud is it, and what do buyers say?

HornBlasters publishes no dB number for the King 5. The brand’s decibel article argues that many advertised ratings in this category are misleading. It says every non-electric HornBlasters horn produces “130+ dB” under its own testing, and it cites the Nathan AirChime K5 as the loudest horn it has tested, at 149.4 dB at 3 ft. That 149.4 dB figure belongs to the Nathan K5, not the King 5. Because the two horns share the same published envelope, it’s natural to compare them, but HornBlasters has not published a matching figure for the King 5. For background on how distance changes these numbers, see our decibels explained guide.

The kit listing shows a 5.0 average from three reviews. The most recent one (Joseph V., June 3, 2026) says the installing shop called it the loudest horn they had heard. That is a user impression, not a measurement. The other two reviews date from 2018 and 2020. The listing was created in 2017 and still carries Nathan AirChime K5 tags, so those older reviews may describe an earlier horn sold under the same product page. We give them little weight for the current King 5.

Alternatives

• HornBlasters Admiral 544K: same 5-gallon HornAir 544K air system with a five-chime horn, currently $999.99. It is the obvious value alternative if you don’t need the K5-format horn.
• HornBlasters Octohorn 544K: eight chimes on the same air system for $1,299.99. It gives a bigger visual statement for about half the King 5 544K price.
• Nathan AirChime K5LA: the reconditioned railroad horn the King 5 appears to be sized after. HornBlasters sells the horn alone for $4,499.99 and a K5 544K kit from $4,999.99.

HornBlasters also sells a King 3 544K (three chimes, same air system) for $1,879.99 to $1,979.99, if you want the King styling in a smaller package. See all of the brand’s kits on our HornBlasters hub.

Install / compatibility notes

The King 5 544K is a 12 V DC kit. The compressor pulls up to 25 A, and the kit ships with a 40 A relay built into the pressure switch, 8-gauge power wire and a fused wiring kit. HornBlasters’ fill times are quoted at 13.8 V supply voltage, meaning with the engine running. Expect slower fills with the engine off. A healthy battery and charging system matter on any 25 A compressor. Our compressor duty cycle guide explains why the 100%-at-100-PSI rating matters for repeated honks.

Space is the main constraint:

1. Horn: at 29.75 in wide and 35 lb, the King 5 needs a rigid mount (frame rail, bed-mounted bracket or front bumper structure). The kit includes mounting hardware but no bracket.
2. Tank: the 5-gallon tank is 20.5 in long, 9.5 in in diameter and 11.5 in tall with legs. Plan for underbody, bed or spare-tire-area mounting on a full-size truck.
3. Compressor: 10.75 x 4 x 6.75 in. Mount it away from direct water spray and route the intake where it can breathe. See where to mount a train horn compressor.
4. Air line: 17 ft of 1/2 in line and a 1/2 in NPT valve match the horn’s 1/2 in inlet. Keep the valve close to the horn for the sharpest response.

For a full walkthrough, see our train horn install guide. Before you mount anything, check your state’s rules in our train horn legality guide. A five-chime locomotive-style horn is exactly the kind of device many states restrict on public roads.

Sources

• HornBlasters — King 5 544K Train Horn Kit product page — part numbers, variant prices ($2,597.97 / $2,747.97), horn and tank dimensions and weights, 150/110 PSI, 12 V, 25 A, 1.75 CFM, 100% duty at 100 PSI, fill times at 13.8 V, 5-6 sec honk time, kit contents, 5-year horn / 2-year kit warranty, listing created 2017 with Nathan AirChime K5 tags
• HornBlasters — King 5 Train Horn (standalone) product page — die-cast aluminum bells and manifold, stainless steel diaphragms, US-train chord description, AH-H5 / AH-H5K, $1,849.99 / $1,999.99
• HornBlasters — King 5 Train Horn Manifold product page — die-cast aluminum manifold, compatibility with Nathan AirChime K-bells
• HornBlasters — HB-1NM Air Compressor product page — 200 PSI max working pressure, 50% duty at 200 PSI, 10.1 lb weight, 5-gallon fill times
• HornBlasters — Nathan AirChime K5LA Train Horn product page — K5LA dimensions (19 x 29.75 x 9.25 in), 37 lb, reconditioned railroad horn, $4,499.99
• HornBlasters — Nathan AirChime K5 Train Horn Kit page — K5 544K heavy-duty kit price $4,999.99, 5-7 sec honk time
• HornBlasters — King 3 544K Train Horn Kit page — King 3 544K price $1,879.99 / $1,979.99 on the same air system
• HornBlasters — Admiral 544 Train Horn Kit page — Admiral 544 price $999.99
• HornBlasters — Octohorn 544K Train Horn Kit page — Octohorn 544K price $1,299.99
• HornBlasters — Katrina Train Horn Kit page — Katrina offered with the HornAir 544K heavy-duty air system (HK-C5B-544K)
• HornBlasters — Train Horn Decibels Explained: Why Fake Ratings Mislead Buyers — 130+ dB for non-electric HornBlasters horns, Nathan AirChime K5 at 149.4 dB at 3 ft
• Stamped.io — buyer reviews for the King 5 544K listing — 5.0 average from 3 reviews; Joseph V. (June 3, 2026), Carson (Aug 24, 2020), Johnny M. (Dec 4, 2018)

Train Horn Hub aggregates publicly available data. We do not test products in-house. All trademarks belong to their respective owners.
