- +Genuine Nathan casting — the documented factory horn spec on EMD SD70ACe/SD70M-2
- +Deeper, longer-carrying chord than the K5LA (low C #1L bell)
- +Independently documented tuning: C/D#/F#/G#/B at 261–494 Hz
- +Wide 90–140 PSI operating window
- +Refurbished with new hardware and stainless internals
- −$1,849.95 for the bare horn; complete builds run $3,000–$5,000+
- −No decibel rating published for the listing
- −Approx. 40 lb and 31.5" wide — very hard to package on a pickup
- −No warranty terms stated
- −Single-unit refurb stock; sold out at review time
Methodology
This review aggregates publicly available information from manufacturer specifications, retailer listings, and verified user reviews. We do not perform hands-on testing. Last reviewed: July 28, 2026. Our primary sources for this article are the Locomotive Parts Supply listing for the refurbished K5LLA, the atsf.railfan.net AirChime horn guide, Wikipedia’s Nathan Manufacturing entry, the Code of Federal Regulations, and railfan video documentation. Every external source is listed at the end of the article.
Quick verdict
The Nathan AirChime K5LLA is not a truck accessory — it is the actual horn casting that has shipped on modern EMD freight locomotives since late 2004, and it earns a 4.3/5 from us. Compared with the legendary K5LA, it trades the bright top note for a low C bell, which is why railfans describe its voice as deeper and longer-carrying. At $1,849.95 for the horn alone (refurbished, no air system), it is a purchase for collectors, museum restorations, and dedicated show-truck builds with serious onboard air. If you just want a loud horn for a pickup, a complete kit like the ones on our Nathan reviews hub alternatives list will serve you far better per dollar.
What it is

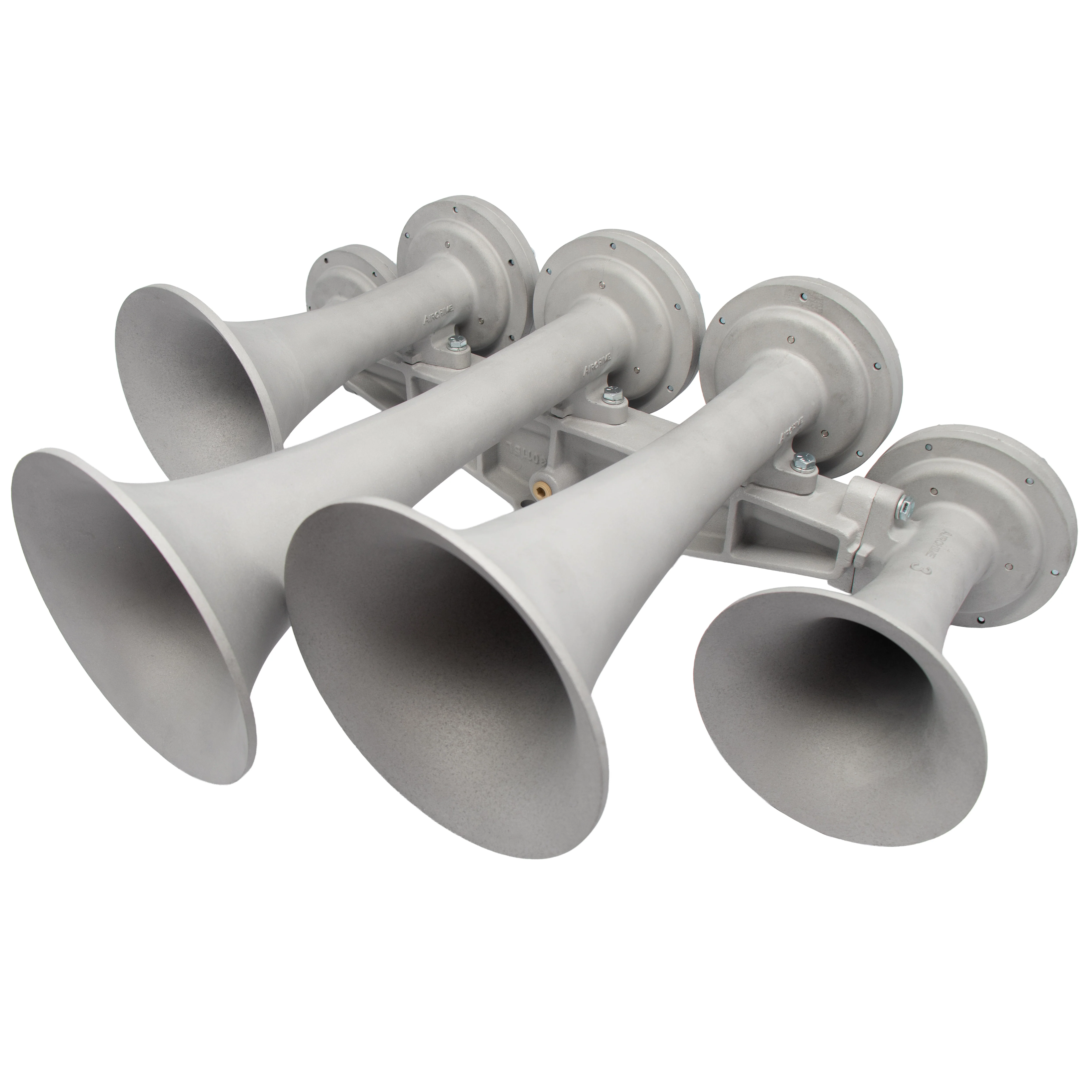

The K5LLA is a five-chime, cast-metal locomotive air horn from Nathan AirChime — the line descended from Robert Swanson’s original AirChime Ltd. and today produced by Nathan Manufacturing, a division of Micro Precision Group. It is a direct variant of the famous K5LA that Nathan developed in 1975 for American railroads.
The name decodes the differences. Per the atsf.railfan.net horn guide, the first “L” indicates the low-profile manifold, and the second “L” indicates the low-pitched #1L bell that replaces the standard K5LA’s #5 bell. Locomotive Wiki summarizes it the same way: a K5LLA is essentially a K5LA with the top bell swapped out for a second, lower first-position bell. The result is an intended tuning of C, D#, F#, G#, B (261, 311, 370, 415, 494 Hz) — a chord that starts at middle C, noticeably below the K5LA’s bright B-major sixth voicing. If you want the theory behind why five bells make a chord at all, see our guide to train horn chords and trumpet tuning.
The K5LLA’s origin story is regulatory. A change to the Federal Railroad Administration’s rule at 49 CFR 229.129 specified a maximum as well as a minimum loudness for locomotive horns, and the K5LLA appeared on new EMD units — notably the SD70ACe and SD70M-2 — beginning in late 2004. Railfan compilations on YouTube document the K5LLA-R1L as the factory horn on those locomotives.

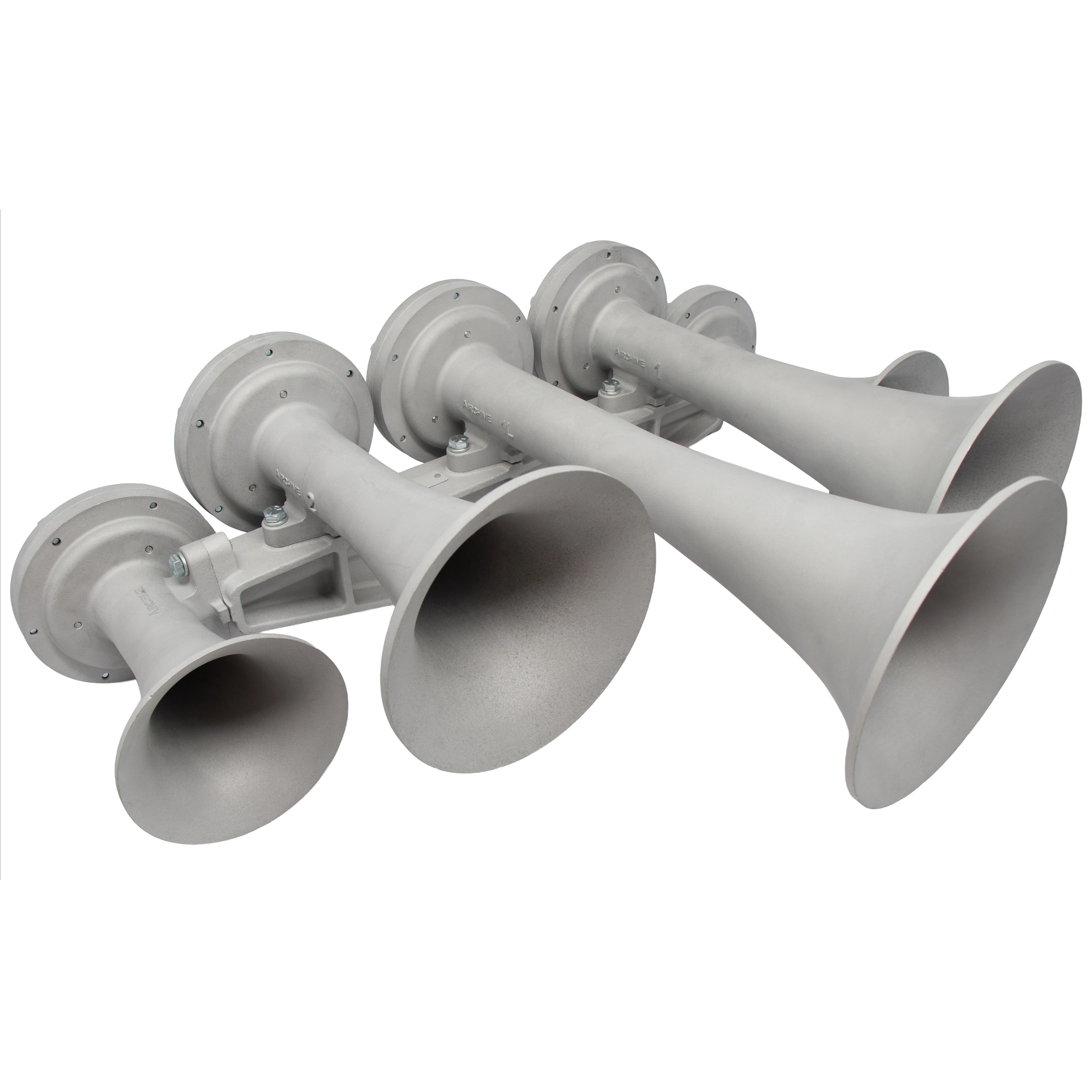

The specific unit reviewed here is Locomotive Parts Supply’s refurbished genuine K5LLA: bead-blasted finish, new hardware, stainless internals, and all five chimes tested functional per the listing. The listing uses stock photos, with cosmetic condition of individual units varying — normal for the refurbished locomotive-parts market.
Specifications
| Spec | Value |
|---|---|
| Configuration | 5-chime locomotive horn, one-piece manifold |
| Bells | #1L, #1, #2, #3A, #4A (K-series) |
| Intended tuning | C, D#, F#, G#, B |
| Bell frequencies | 261, 311, 370, 415, 494 Hz |
| Sound output | Not published for this listing (in-service locomotive horns must fall within 96–110 dB(A) at 100 ft under FRA rules) |
| Operating pressure | 90–140 PSI |

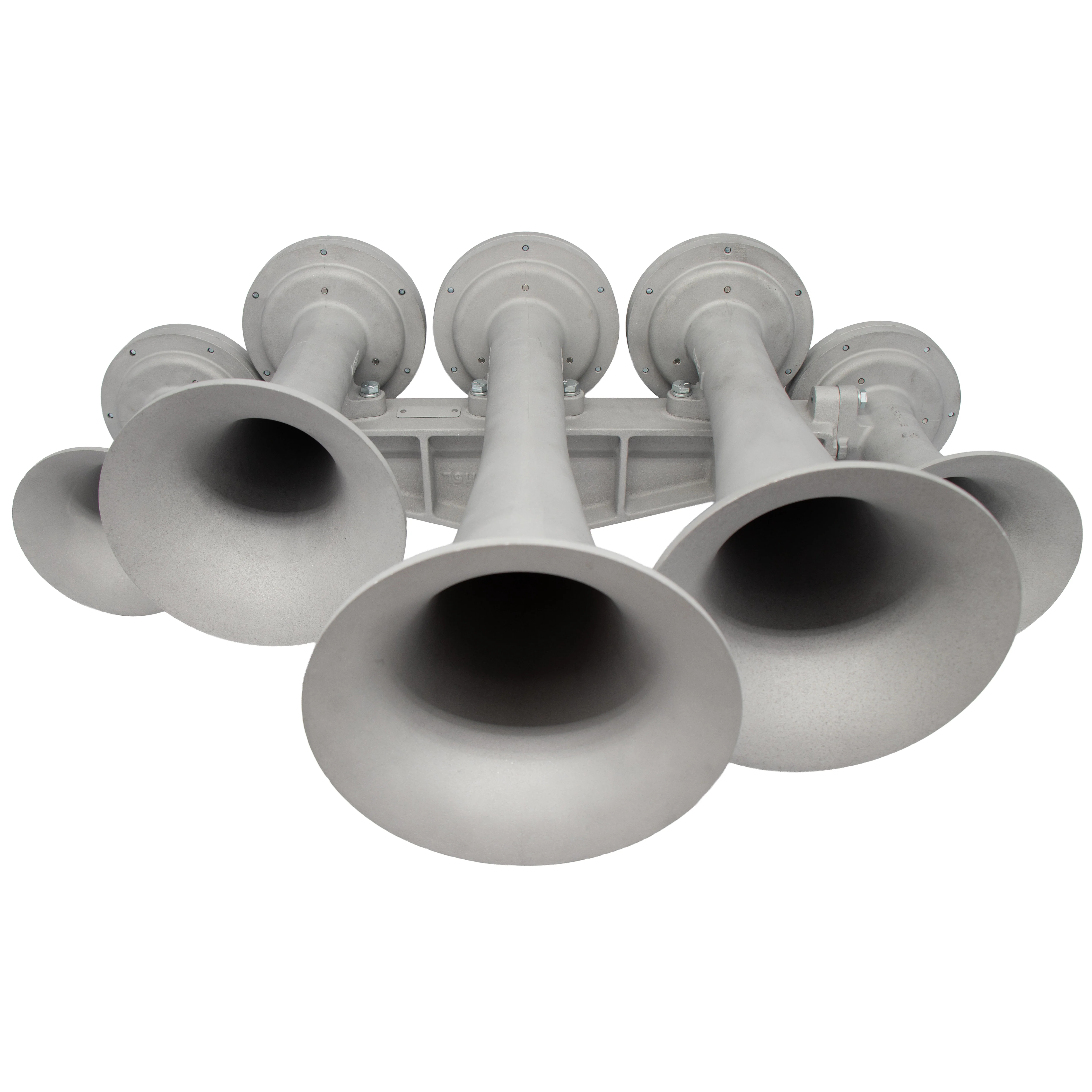

| Air inlet | 1/2” NPT, bottom of manifold |
| Dimensions (approx.) | 19” L × 31.5” W × 10” H |
| Weight | Approx. 40 lb |
| Material / finish | Cast metal, bead-blasted, stainless internals, new hardware |
| Condition | Refurbished genuine horn (stock photos; cosmetics vary) |
| Price | $1,849.95 (horn only) |
| Warranty | Not stated in listing |
Note the honest gap in that table: Locomotive Parts Supply does not publish a decibel rating for the K5LLA, and Nathan itself does not market consumer spec sheets. What we do know is the regulatory box every in-service locomotive horn must fit: 96–110 dB(A) measured 100 feet ahead of the locomotive, per 49 CFR 229.129. For context on what those numbers mean at close range, see decibels explained.
What it includes

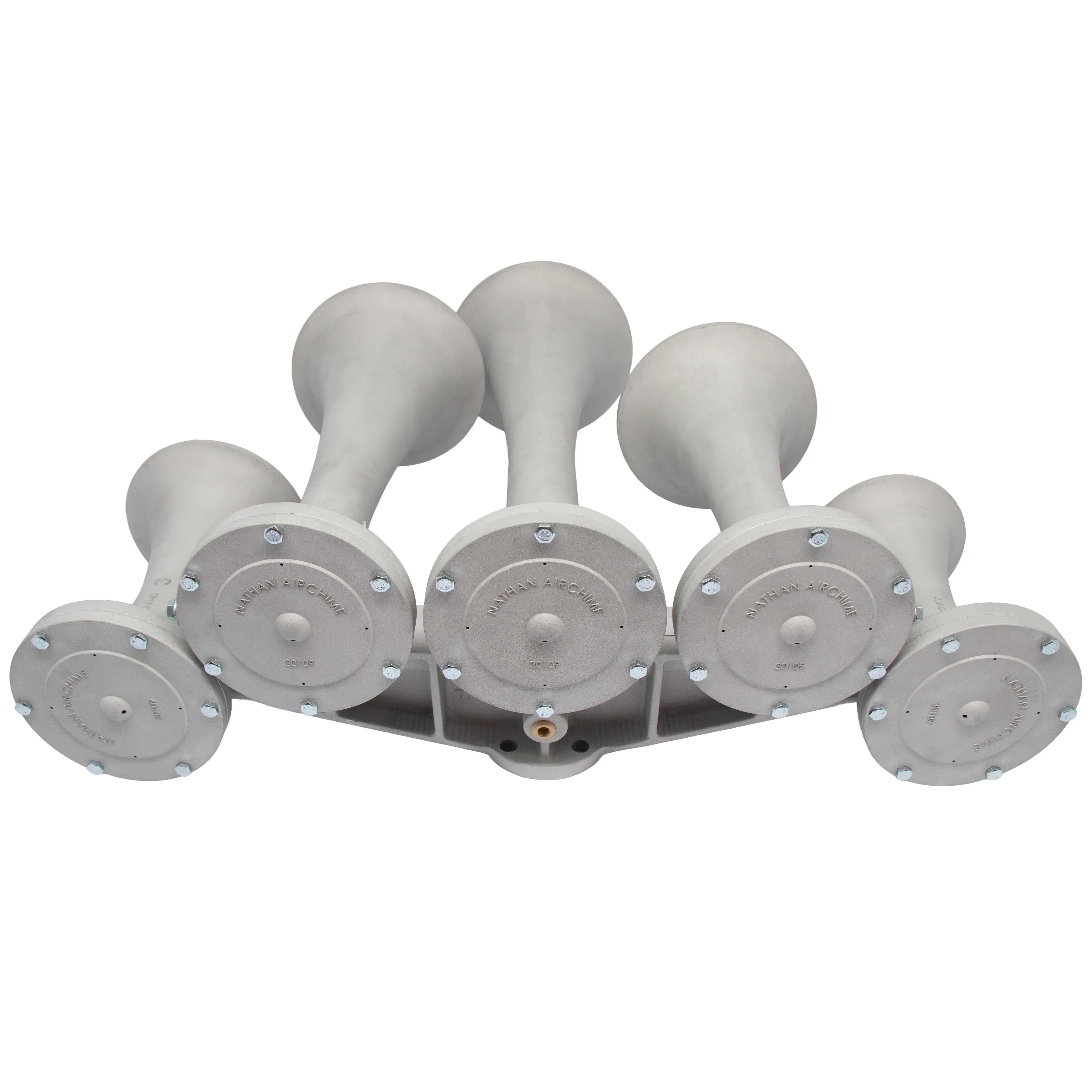

- K5LLA manifold with all five bells mounted (#1L, #1, #2, #3A, #4A)
- New corrosion-resistant hardware and stainless internals (per the refurbisher)
- Bead-blasted, professionally cleaned finish
- All five chimes tested and functional before sale
Everything else is on you: no compressor, no tank, no solenoid valve, no air line, no mounting bracket. This is a bare horn, exactly as it would come off a locomotive.
Pros
- Genuine Nathan AirChime casting — the same horn spec documented on EMD SD70ACe and SD70M-2 road power
- Deeper, longer-carrying voice than the K5LA thanks to the low C #1L bell
- Fully documented tuning (261–494 Hz) from independent railfan references
- Wide 90–140 PSI operating window fits truck-style onboard air
- Refurbished with new hardware and stainless internals rather than sold as-is
Cons
- $1,849.95 for the horn alone — a complete working build climbs toward $3,000–$5,000
- No decibel rating published for the listing
- Approx. 40 lb and a 31.5-inch-wide footprint make vehicle packaging genuinely difficult
- No warranty terms stated
- Refurbished units are effectively one-off stock — the listing was sold out at review time
- Extreme air consumption; small kit compressors and 1–2 gallon tanks are not enough
Alternatives
- Nathan AirChime K5LA — the original 1975 B-major-sixth icon and the default “Amtrak horn” choice; brighter voice, easier to find. Our full review: Nathan AirChime K5LA.
- Nathan AirChime K5HL — the other modern EMD-era variant, with bells #1L/#1/#2/#3/#4 and a darker, more dissonant chord; Locomotive Parts Supply listed it at $1,699.95. Our full review: Nathan AirChime K5HL.
- Leslie RS-5T Supertyfon — the classic five-chime from Nathan’s historic competitor, beloved for its own major chord and often cheaper on the used market. Our full review: Leslie RS-5T Supertyfon.
Install / compatibility notes
Feeding a K5LLA properly is an air-system project, not a wiring afternoon. The horn wants 90–140 PSI at high flow through its 1/2” NPT bottom inlet, so plan on 1/2” ID plumbing end to end and a full-flow 1/2” solenoid valve — necking down to the 1/4” line in a typical consumer kit will choke it audibly. Our air line sizing guide covers why.
Tank-wise, treat 5 gallons as the realistic floor for honks that sound like the real thing, with a 150 PSI-class compressor (or engine-driven air on a semi) to recover between blasts. See air tank sizing and what PSI a train horn needs. At roughly 40 lb, the horn also needs a fabricated mount — flat bed rails, headache racks, and semi roofs work; an under-bumper tuck on a half-ton pickup does not, given the 31.5-inch width.
Two buying notes. First, refurbished genuine horns are single-unit inventory: when a listing sells, it is gone until the next core is rebuilt, which is why the LPS page showed sold out at review time. Our used locomotive horn buying checklist covers what to inspect on any secondhand K-series horn. Second, the FRA’s 96–110 dB(A) rule applies to locomotives in rail service — on the street, your state’s vehicle code and local noise ordinances govern, so check our state legality pages before plumbing one to a truck.
Sources
- Locomotive Parts Supply — Nathan Airchime K5LLA Locomotive Train Horn — $1,849.95 price, bell set (#1L/#1/#2/#3A/#4A), 90–140 PSI, approx. 40 lb, 19” × 31.5” × 10” dimensions, 1/2” NPT inlet, refurbished condition, included items, sold-out status, product photos
- atsf.railfan.net — AirChime K5LLA — intended tuning C/D#/F#/G#/B (261, 311, 370, 415, 494 Hz), naming (“L” = low-profile manifold, second “L” = #1L bell replacing the #5), late-2004 debut on EMD locomotives in response to 49 CFR 229.129, UP SD70ACe sound samples
- Locomotive Wiki — Nathan AirChime K-series Air Horns — K5LLA described as a K5LA with the #5 bell swapped for a #1L
- Wikipedia — Nathan Manufacturing — brand history, Nathan as a division of Micro Precision Group, K5LA introduced 1975 for US railroads, K5LLA low-C variant context
- Cornell LII — 49 CFR 229.129, Locomotive horn — 96–110 dB(A) at 100 ft requirement for in-service locomotive horns
- Locomotive Parts Supply — Nathan AirChime K5HL Locomotive Train Horn — K5HL $1,699.95 price and bell set (#1L/#1/#2/#3/#4) cited in the Alternatives section
- YouTube — Nathan Raised Letter “3rd Generation” K5LLA Train Horn Compilation (EMD SD70ACe Horn) — K5LLA-R1L documented as factory horn on SD70ACe/SD70M-2, real-world sound character
- YouTube — SD70ACe Nathan Airchime K5LLA-R1L, Union Pacific coal train — in-service K5LLA tone reference
Train Horn Hub aggregates publicly available data. We do not test products in-house. All trademarks belong to their respective owners.
A genuine EMD-era five-chime with the deepest voice in the K5 family — the right pick for collectors, museum builds, and show trucks with serious onboard air, and overkill for anyone who simply wants a loud truck horn.
Frequently asked questions
Quick answers to the questions people ask most about this topic.
- How loud is the Nathan K5LLA really?
- Neither Nathan nor Locomotive Parts Supply publishes a consumer dB rating for the K5LLA. What is documented is the regulatory window: in rail service, locomotive horns must produce 96–110 dB(A) measured 100 feet ahead of the locomotive under 49 CFR 229.129 — dramatically louder at close range than any consumer truck kit.
- What is the difference between the K5LLA and the K5LA?
- The K5LLA replaces the K5LA's #5 bell with a low-pitched #1L bell on a low-profile manifold, changing the chord to C, D#, F#, G#, B (261–494 Hz). The result is a lower, longer-carrying voice than the K5LA's brighter B-major-sixth chord.
- What air system does a K5LLA need?
- The horn operates at 90–140 PSI through a 1/2" NPT bottom inlet. Plan on 1/2" plumbing, a full-flow solenoid valve, a tank of roughly 5 gallons or more, and a 150 PSI-class compressor — small consumer kits will choke it.
- Which locomotives use the K5LLA?
- Railfan documentation shows the K5LLA (as the K5LLA-R1L) as factory equipment on EMD SD70ACe and SD70M-2 locomotives beginning in late 2004, after FRA rules added a maximum loudness limit for locomotive horns.
- Why is the K5LLA sold out, and where can I buy one?
- Refurbished genuine locomotive horns are single-unit inventory — Locomotive Parts Supply's $1,849.95 listing was sold out at review time and restocks as cores are rebuilt. Used K-series horns also appear on auction sites; inspect bells, manifold, and diaphragms carefully before buying.
