Nathan AirChime K3 544K Train Horn Kit Review (2026)

Methodology

This review aggregates publicly available information from manufacturer specifications, retailer listings, and verified user reviews. We do not perform hands-on testing. For this kit we relied mainly on HornBlasters’ official HK-K3-544K product page, which lists the specs, fill rates, contents, and warranty. We cross-checked it against HornBlasters’ standalone K3 horn and HornAir 5-gallon system listings, a Pure Diesel Power retailer listing, and Wikipedia’s Nathan Manufacturing entry. Every number below comes from one of the pages listed in the Sources section. Last reviewed: 10/11/2026.

Quick verdict

The Nathan AirChime K3 544K is HornBlasters’ way to buy a real, reconditioned locomotive horn already paired with a heavy-duty onboard air system. You get a die-cast Nathan K3LA and a 1NM compressor feeding a 5-gallon, 8-port tank, so you have about 7 seconds of honk time plus enough air to fill tires. That is a complete, coherent package. The catch is the price: at $2,749.99 it costs nearly three times as much as a HornBlasters-branded 544K kit, and it plays a simpler 3-note chord than the K5LA. In our editorial opinion it earns 4.2/5. It is excellent for buyers who want genuine railroad hardware without building their own air system, but it is not the value pick.

What it is

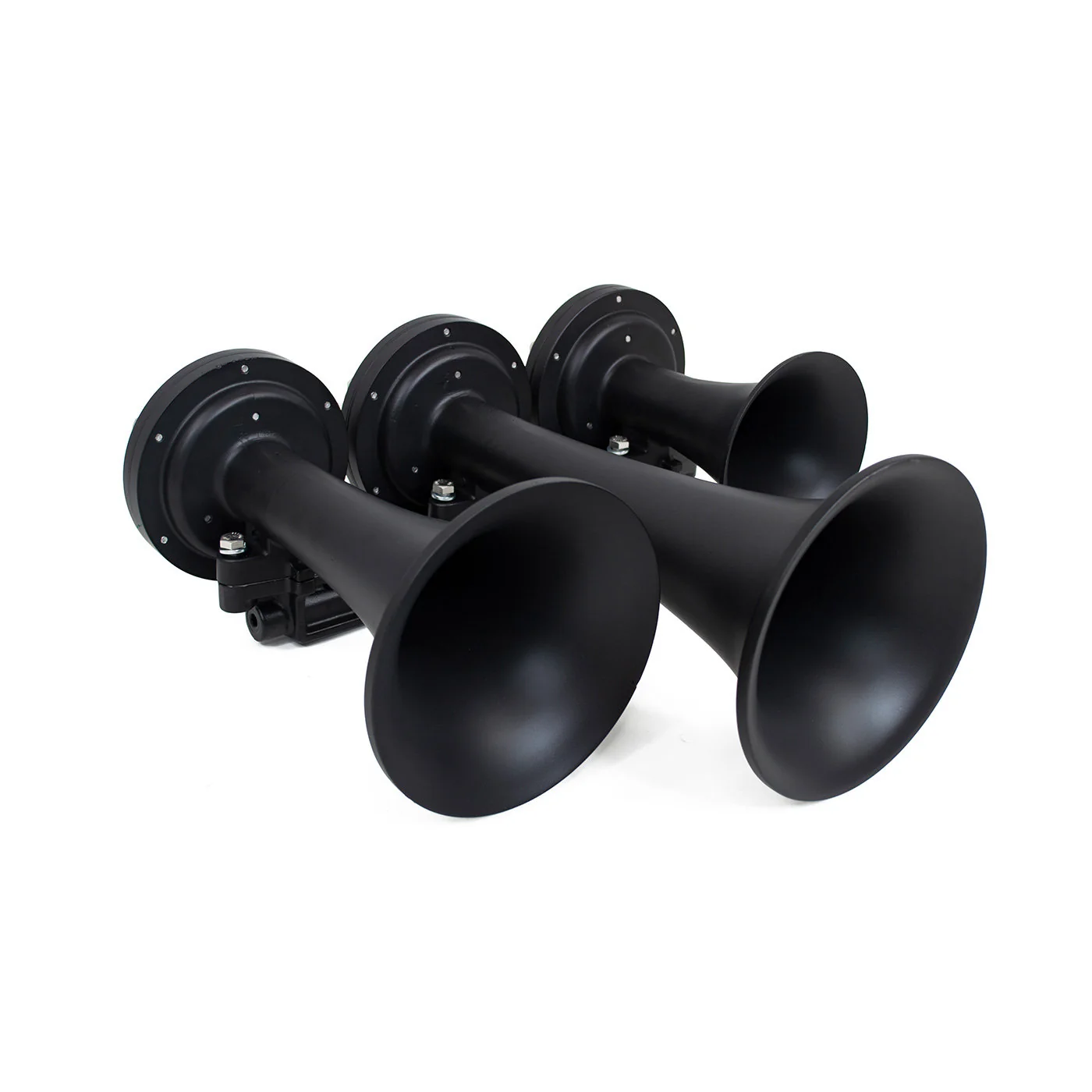

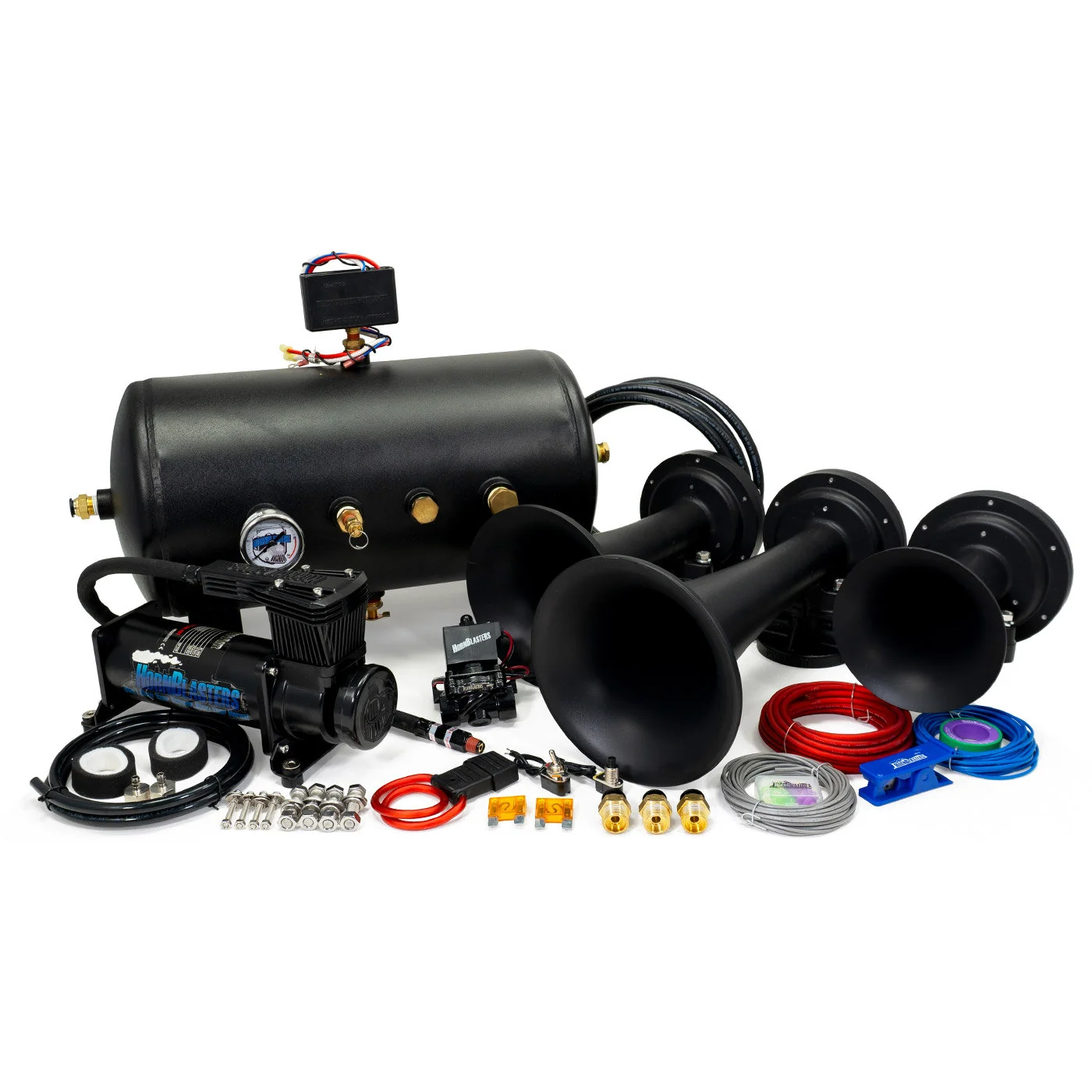

The K3 544K (part number HK-K3-544K) is a turnkey train horn kit. HornBlasters says the horn is pulled from retired locomotives, then sandblasted, refinished in black powder coat, and rebuilt with new diffuser rings, diaphragms, and cushion rings. The horn is a three-bell Nathan AirChime K3LA. Wikipedia’s Nathan Manufacturing entry shows that model on top of a Metra commuter cab car. Per HornBlasters, the horn body is die-cast aluminum with stainless steel internals.

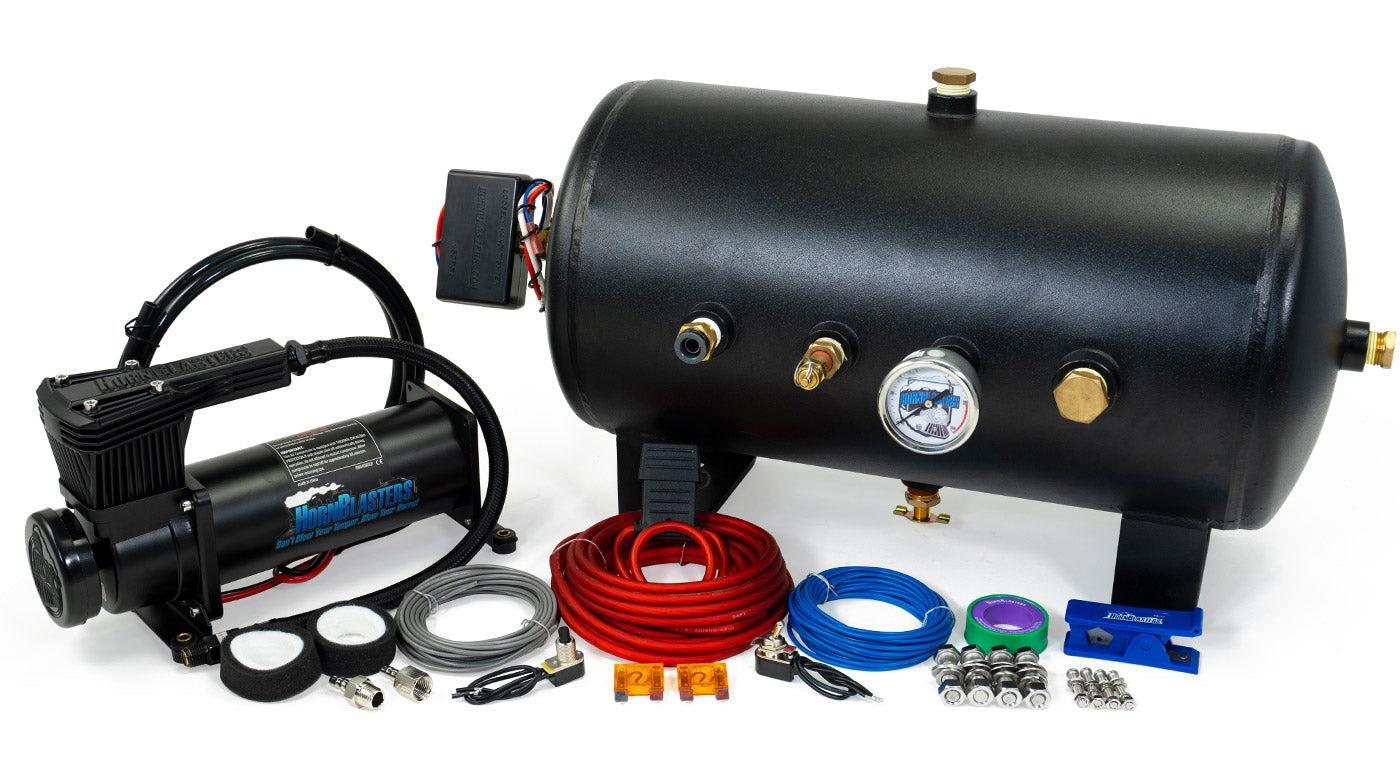

The “544K” suffix refers to the air system: a HornBlasters 1NM Stealth Black compressor and a 5-gallon, 8-port tank. The pressure switch turns the compressor on at 110 PSI and off at 150 PSI. HornBlasters puts that combination at roughly 7 seconds of continuous honk per full tank.

Who it’s for: owners of full-size trucks, lifted SUVs, and show builds who want an authentic locomotive horn and are willing to pay for it. It’s also for people who would rather buy one SKU than piece together a horn, tank, compressor, valve, and wiring themselves. If you want to compare it with Nathan’s bigger five-chime horn first, our K3LA vs K5LA guide covers the differences in chord, footprint, and cost.

Specifications

Spec	Value
Part number	HK-K3-544K
Horn	Nathan AirChime K3LA (reconditioned, ex-locomotive)
Trumpet / bell count	3
Horn material	Die-cast aluminum body, stainless steel internals, black powder coat
Horn dimensions (L × W × H)	18.25 × 16.25 × 9.75 in
Horn weight	32 lb
Horn air inlet	1/2 in female NPT
Sound output	Not published by HornBlasters for this kit
Chord frequencies	Not disclosed on the kit page
Operating (cut-out) pressure	150 PSI
Restart (cut-in) pressure	110 PSI
Honk time	~7 seconds per full tank
Compressor	HornBlasters 1NM Stealth Black, 12 V DC, 25 A max
Compressor duty cycle	100% @ 100 PSI / 50% @ 200 PSI
Compressor flow @ 0 PSI	1.75 CFM
Compressor dimensions	10.75 × 4 × 6.75 in
Tank	HornAir 5-gallon, 8 ports (7 × 1/2 in, 1 × 3/4 in)
Tank dimensions	20.5 in long × 9.5 in diameter, 11.5 in tall with legs
Tank weight	20 lb
Fill time 0–150 PSI	6 min 45 s (±10 s) at 13.8 V
Refill time 110–150 PSI	2 min (±5 s) at 13.8 V
Valve	1/2 in Black Widow electric air valve
Air line	17 ft of 1/2 in DOT-approved line
Power source	Onboard air (12 V compressor + tank)
Price	$2,749.99 (HornBlasters, checked 10/11/2026)
Warranty	5 years on the horn; 2 years manufacturer’s defect on the rest of the kit

A note on loudness: HornBlasters doesn’t publish a decibel figure for this kit. We’d rather show that gap than borrow a number from an unrelated listing. One more discrepancy: HornBlasters lists the K3 horn at 32 lb, while Pure Diesel Power’s listing for the same HornBlasters part (AH-K3) says 18 lb. We use the brand’s figure.

What’s in the box

Per HornBlasters’ “Includes” list:

• Nathan AirChime K3LA horn (reconditioned)
• 5-gallon, 8-port air tank
• HornBlasters 1NM Stealth Black air compressor
• 110/150 PSI pressure switch with 40 A relay
• Spare air filter elements
• 17 ft of 1/2 in DOT-approved air line
• 1/2 in Black Widow electric air valve kit

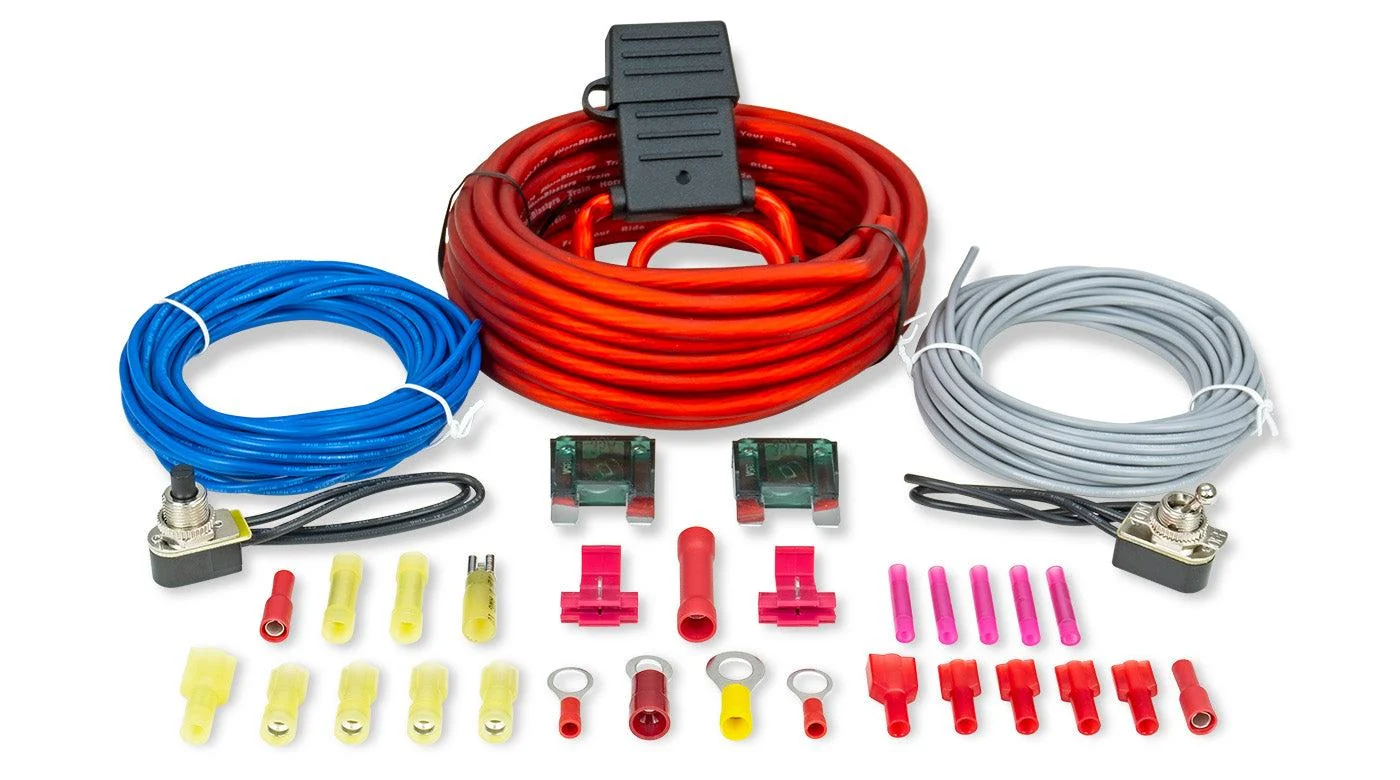

• 22 ft of 8-gauge red wire, plus 22 ft each of 18-gauge blue and grey wire
• Complete wiring kit with fuse holder and fuses
• All necessary fittings and mounting hardware
• Detailed installation instructions
• Earplugs

Pros

• Genuine locomotive horn. It’s a reconditioned Nathan K3LA, the same model Wikipedia shows in commuter-rail service, not a lookalike trumpet set.
• Rebuilt, not just pulled. HornBlasters says each horn is sandblasted, powder-coated, and gets new diffuser rings, diaphragms, and cushion rings.
• Heavy-duty air system included. The 1NM compressor runs at 100% duty cycle at 100 PSI, and the 5-gallon tank has 8 ports. That leaves spare ports for air tools and tire inflation.
• Useful honk time. About 7 seconds per full tank, with a 2-minute refill from 110 to 150 PSI.
• Strong warranty for used hardware. 5 years on the horn and 2 years on the rest of the kit.
• Full spec disclosure. Dimensions, weights, amperage, duty cycle, and fill rates are all published.

Cons

• Expensive. $2,749.99, compared with $999.99 for HornBlasters’ Admiral 544 kit on the same 5-gallon class of air system.
• No published dB rating. You can’t compare loudness on paper against other kits.
• Simpler chord than the K5LA. Three bells instead of five, so you don’t get the full “freight train” chord of Nathan’s flagship.
• Heavy and bulky. The horn alone weighs 32 lb and is 16.25 in wide, and the tank adds another 20 lb and 20.5 in of length.
• Reconditioned, not new. The castings come from retired locomotives. HornBlasters rebuilds them, but cosmetic history may vary from unit to unit (our editorial note).
• Road use is restricted. Check your state’s horn and noise rules before sounding it on public roads. See our state legality guide.

Alternatives

• Nathan AirChime K3LA (standalone): The same horn without the air system, at $1,949.99 from HornBlasters. HornBlasters’ Heavy-Duty HornAir 5-gallon system (HA-544K-HK, without tire kit) lists at $659.99. Buying the two separately totals about $2,610, so the bundle costs roughly $140 more but adds the Black Widow valve, air line, and wiring in one box.
• Nathan AirChime K5LA: Nathan’s five-chime flagship. HornBlasters’ K5 544K kit is $4,999.99, about $2,250 more than this kit, for the richer five-note chord.
• HornBlasters Admiral 544K: HornBlasters’ own five-trumpet kit on a 5-gallon air system for $999.99. It’s not real railroad hardware, but it costs far less.

For more options built around the same compressor-and-tank package, see the HornBlasters King 5 544K review.

Install / compatibility notes

1. Find room for three large parts. The horn (18.25 × 16.25 × 9.75 in, 32 lb), the tank (20.5 in long, 11.5 in tall with legs, 20 lb), and the compressor (10.75 × 4 × 6.75 in) all need solid mounting points. HornBlasters pitches the K3’s smaller profile for setups with limited space, and the K5LA horn is considerably wider at 29.75 in.
2. Plan the electrical load. The compressor draws up to 25 A at 12 V DC through the included 40 A relay and fused 8-gauge supply. Fill times are rated at 13.8 V, so expect slower fills with the engine off.
3. Plumb with 1/2 in line. The horn has a 1/2 in female NPT inlet. The kit’s 17 ft of 1/2 in DOT line and Black Widow valve match it. Keep the run from the valve to the horn short for the sharpest response.
4. Use the spare ports. The tank has 7 half-inch ports and one 3/4 in port, which leaves room for an air chuck or tire-inflation line. HornBlasters also publishes dual-compressor upgrade instructions for faster refills.
5. Check your state first. Install a switch so you can keep your factory horn for road use.

If you’re sizing your own air system instead, our compressor buying guide and duty cycle explainer cover what the 1NM’s ratings mean in practice.

Sources

• HornBlasters — Nathan AirChime K3 544K Train Horn Kit (HK-K3-544K) — price, reconditioning process, horn material, horn/tank/compressor dimensions and weights, 110/150 PSI switch, ~7 s honk time, 25 A draw, duty cycle, 1.75 CFM flow, fill rates, included items, 5-year/2-year warranty, product photos
• HornBlasters — Nathan AirChime K3 Train Horn (AH-K3) — standalone K3 horn price ($1,949.99); K3 “smaller profile” for limited space
• HornBlasters — HornAir 5-Gallon Onboard Air System — HA-544K-HK heavy-duty system price ($659.99) for the build-it-yourself comparison
• HornBlasters — Nathan AirChime K5 Train Horn Kit — K5 544K kit price ($4,999.99); K5LA horn width (29.75 in)
• HornBlasters — Admiral 544 Train Horn Kit — Admiral 544 kit price ($999.99)
• Pure Diesel Power — Die Cast Nathan Airchime K3LA Train Horn AH-K3 — cross-check of K3 dimensions and 1/2 in NPT port; conflicting 18 lb weight figure
• Wikipedia — Nathan Manufacturing — K3LA shown on a Metra cab car; K-series history
